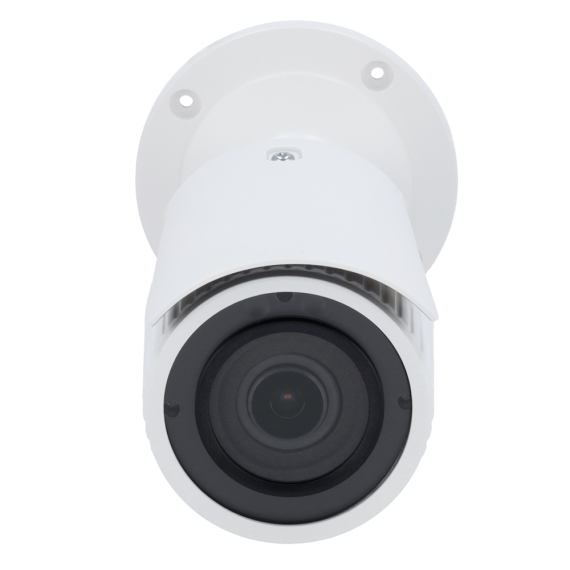

| Brand | HIKVISION |
| Range | Value |
| Image sensor | 1/2.9" Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Main Stream rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream rate | 25 fps (640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |

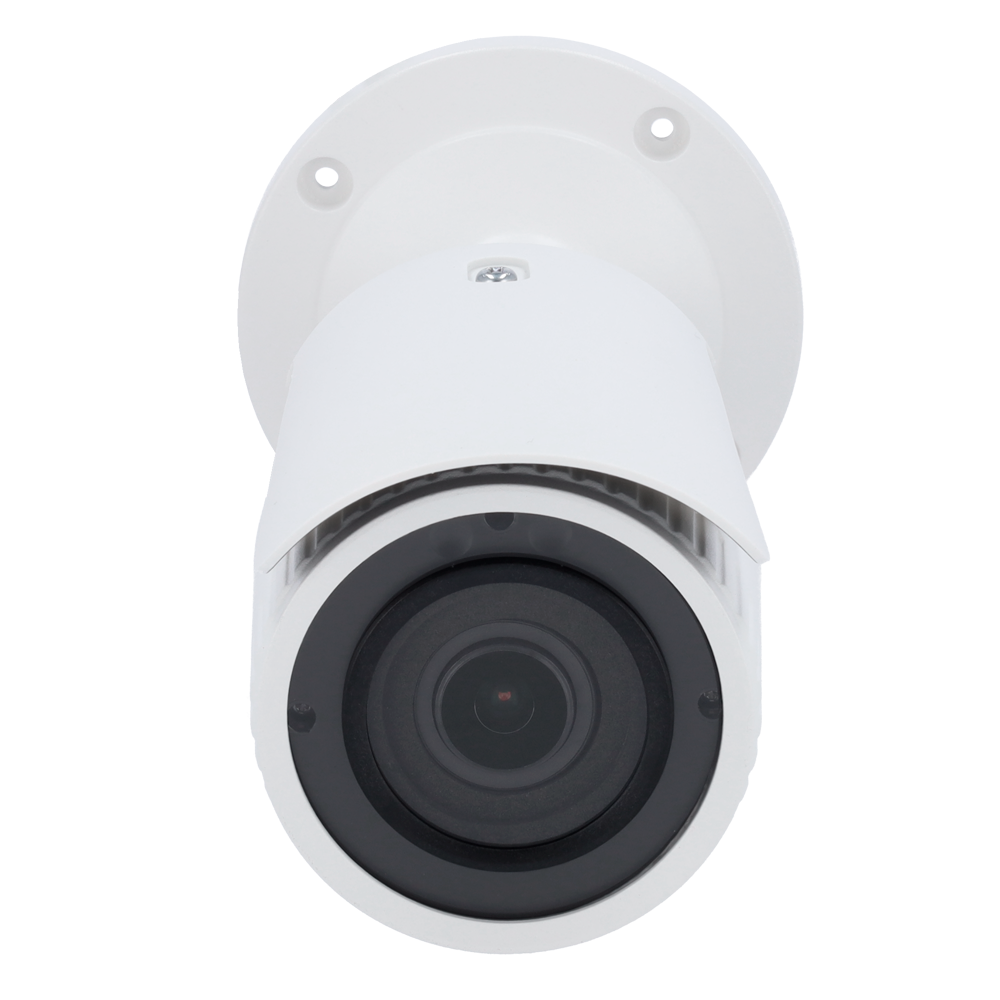

| Lens | Motorized varifocal 2.8~12 mm |
| Viewing Angle (FOV) | H: 102.4~31.2°, V: 54.4~17.5°, D: 121.8~35.7° |
| Electronic Shutter | 1/3~1/100.000 s |
| Minimum illumination | Colour: 0.005 Lux @(F1.6, AGC ON) 0 Lux with EXIR IR range 50 m |
| Day/Night | Removable mechanical ICR filter |
| Image improvements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror function, Privacy masking |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal memory | MicroSD card slot up to 256 GB |

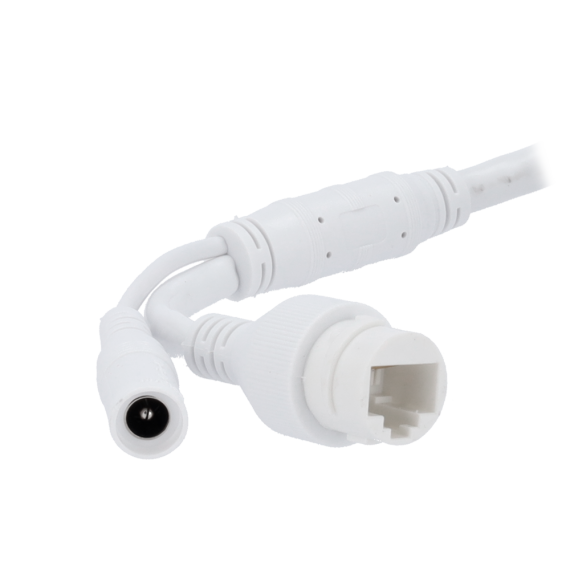

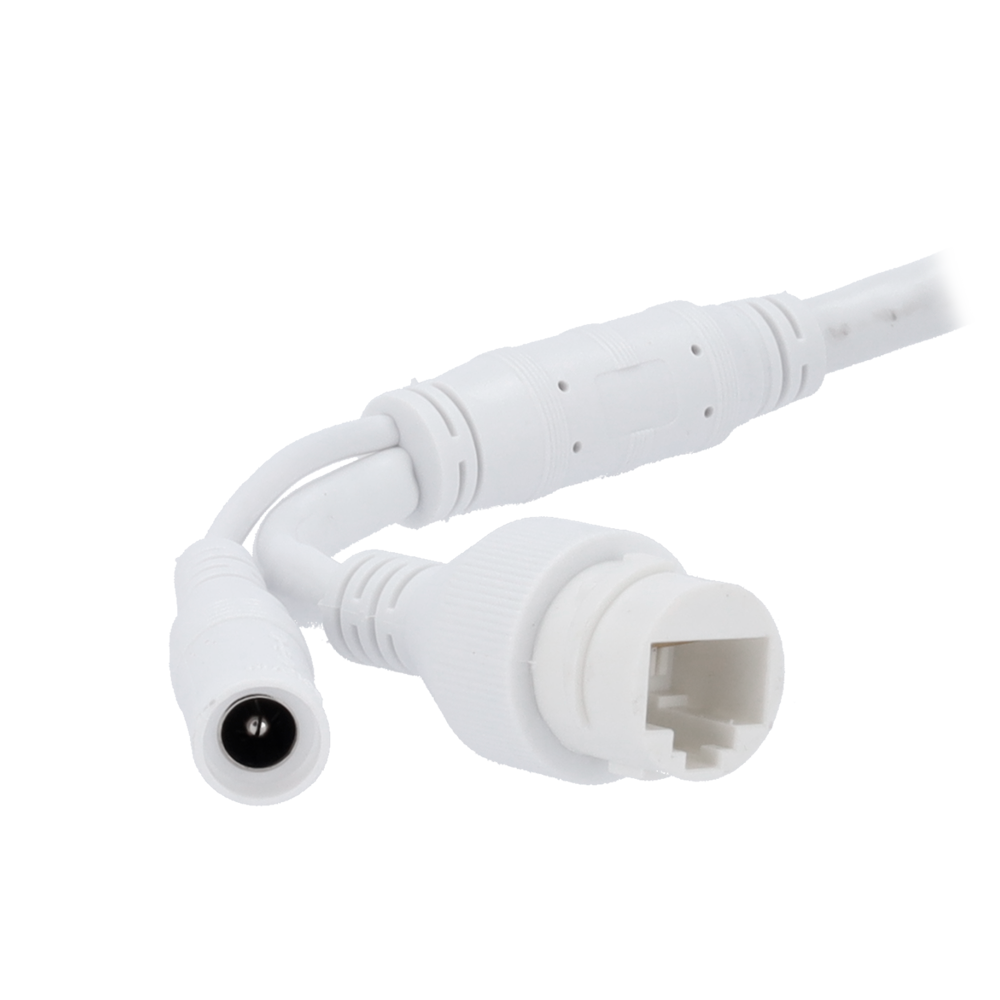

| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 900 mA / 11 W max. / IEEE802.3af PoE |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Ø 105 mm x 244.4 mm (D) |

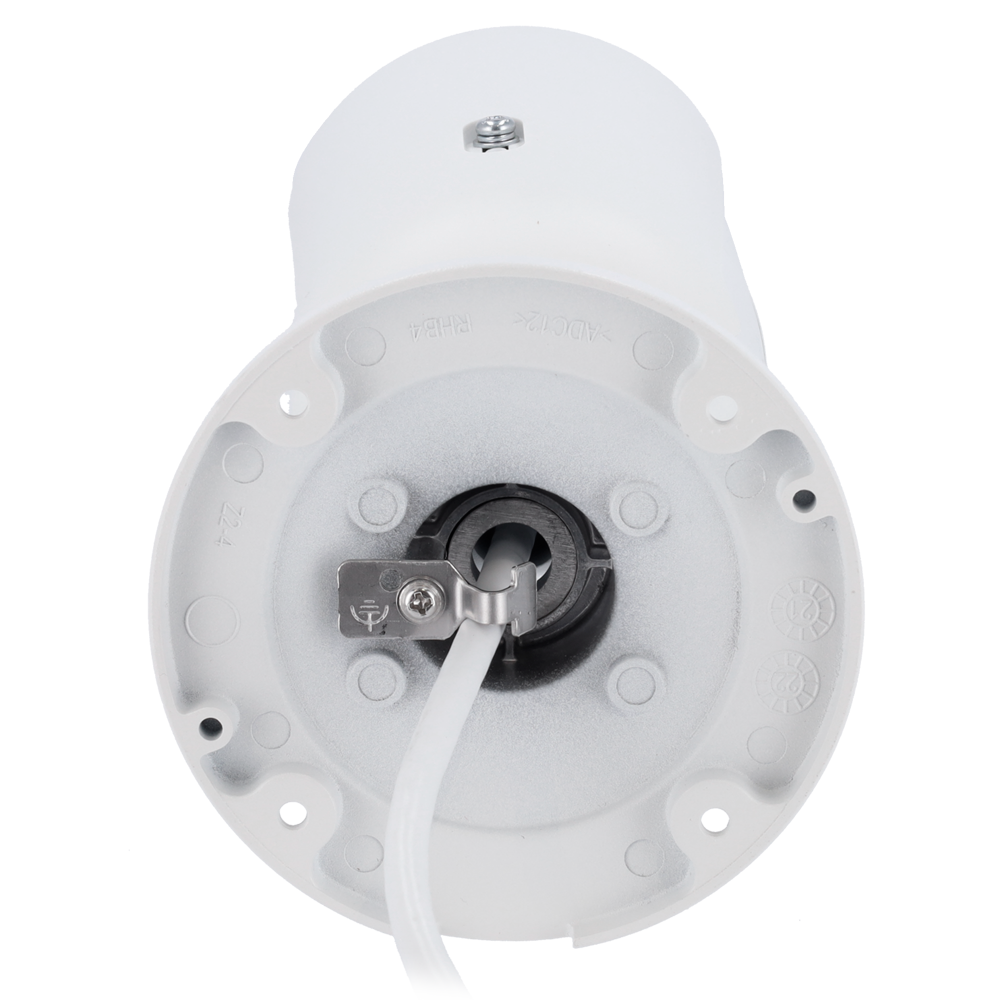

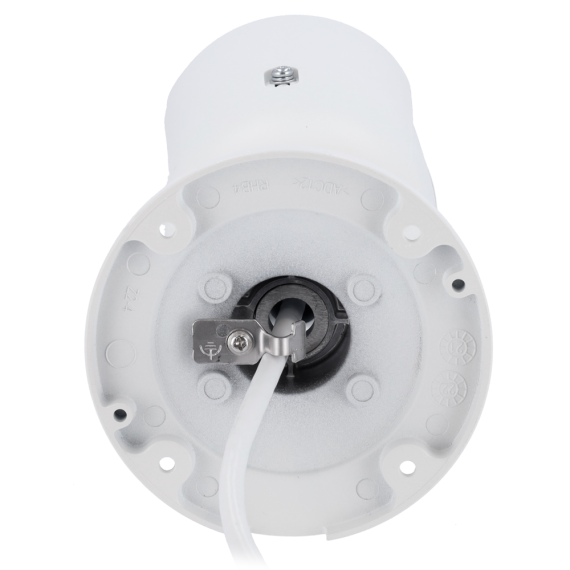

| Base dimensions | Ø base 105 mm / Ø entre tornillos 89 mm / 4 tornillos |
| Weight | 720 g |
