MARCA BLANCA OC-HUMO-F4N1

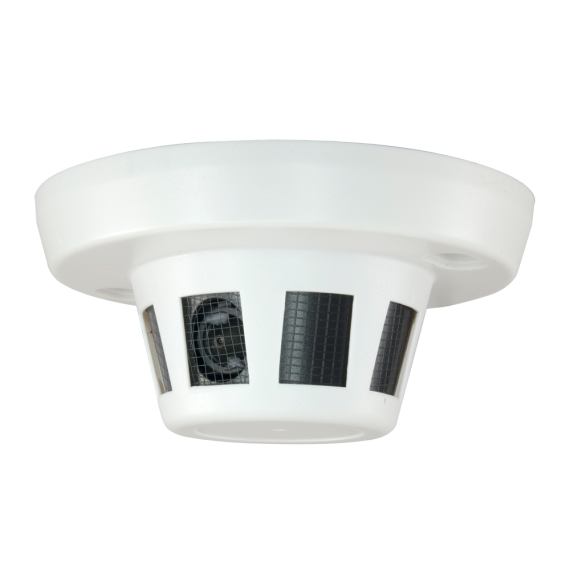

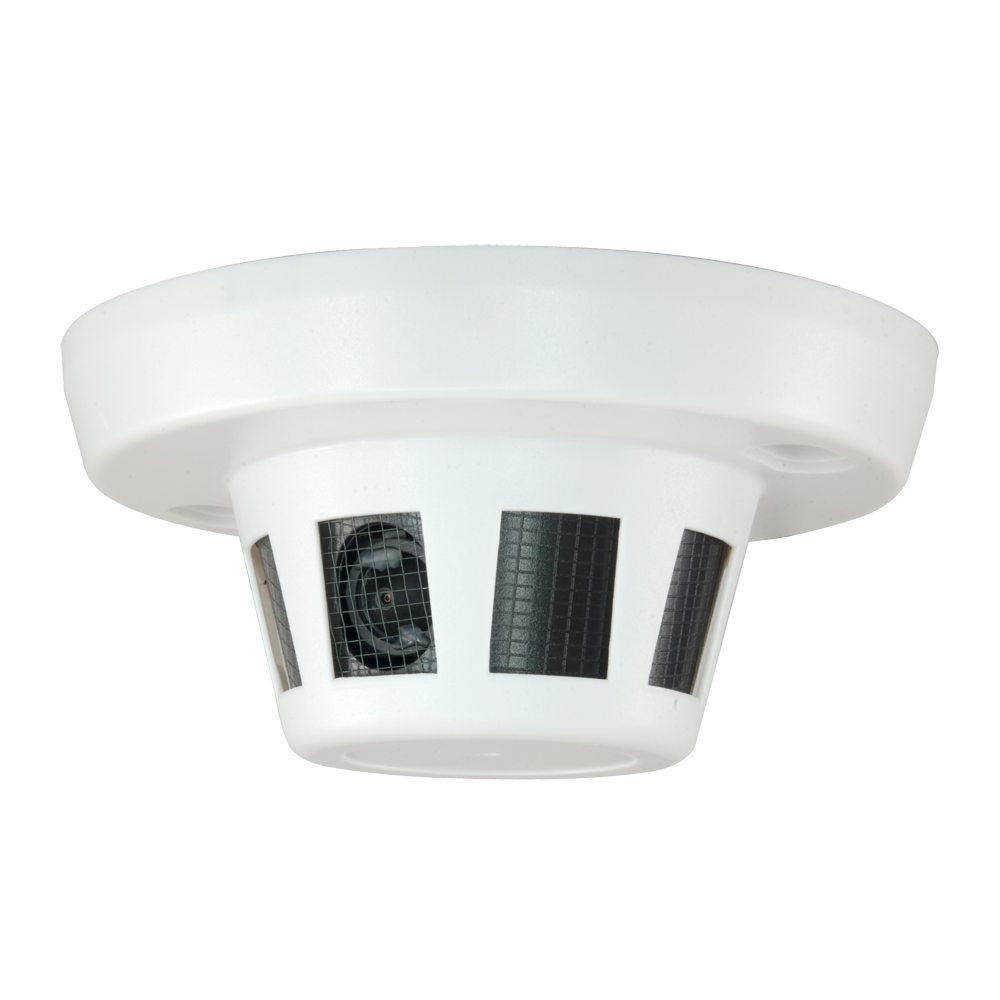

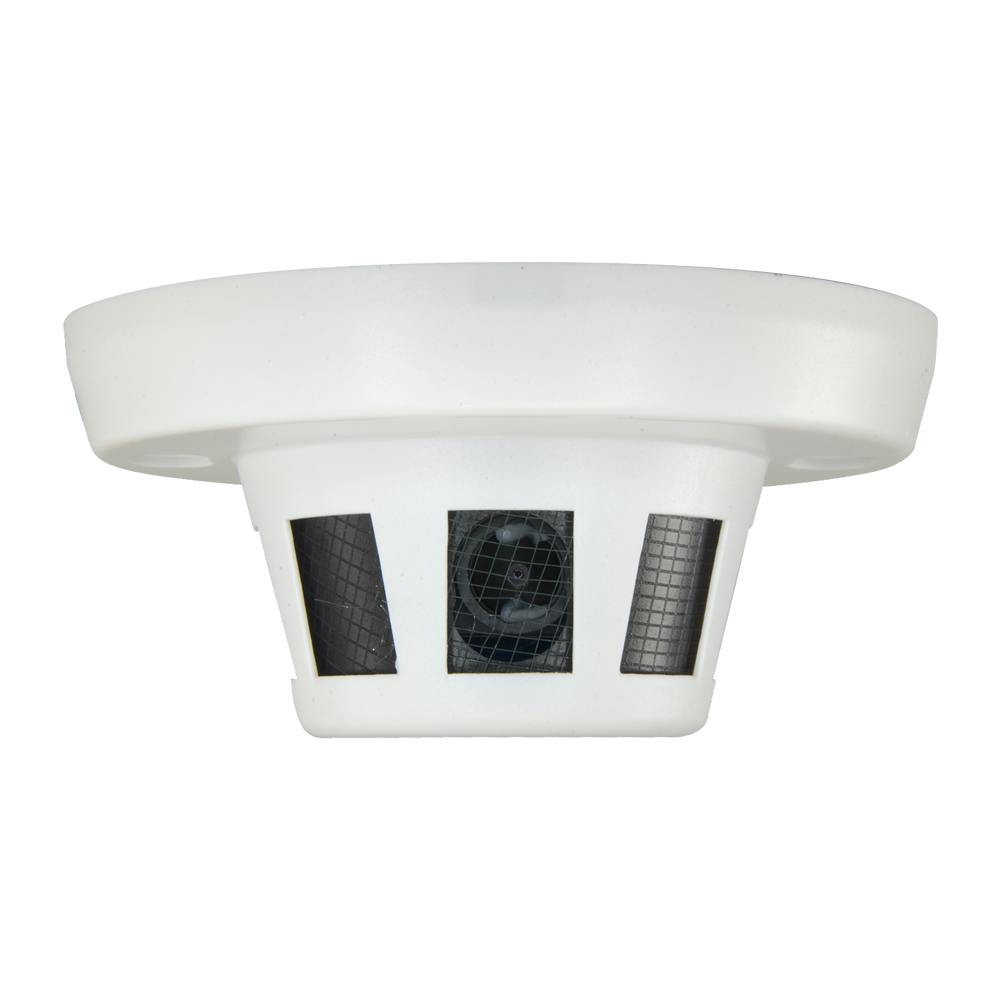

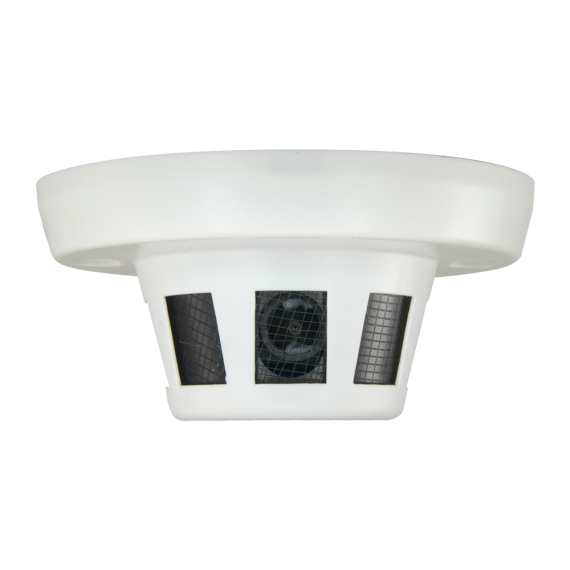

Camera disguised as a smoke alarm. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 1080p PRO.

Consisting of a 1/2.9" Sony© 2.12 Megapixel Exmor sensor (model IMX322) and DSP (model V30), which offers a resolution of 1080p at 25 FPS. 3.6mm fixed Pinhole lens with a diagonal FOV of 79º. Minimum illumination of 0.1 Lux.

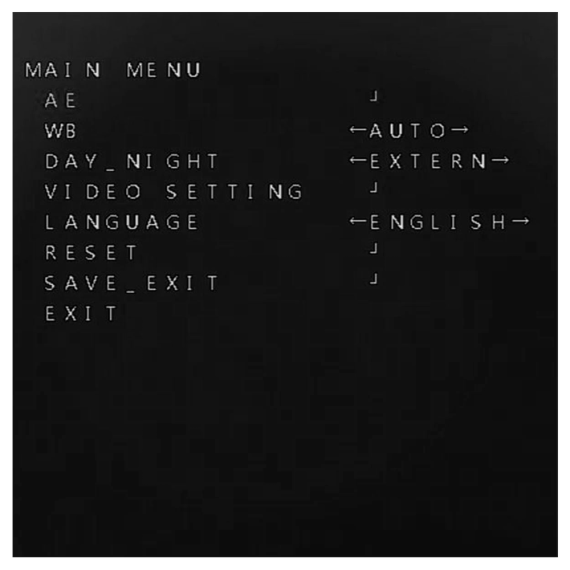

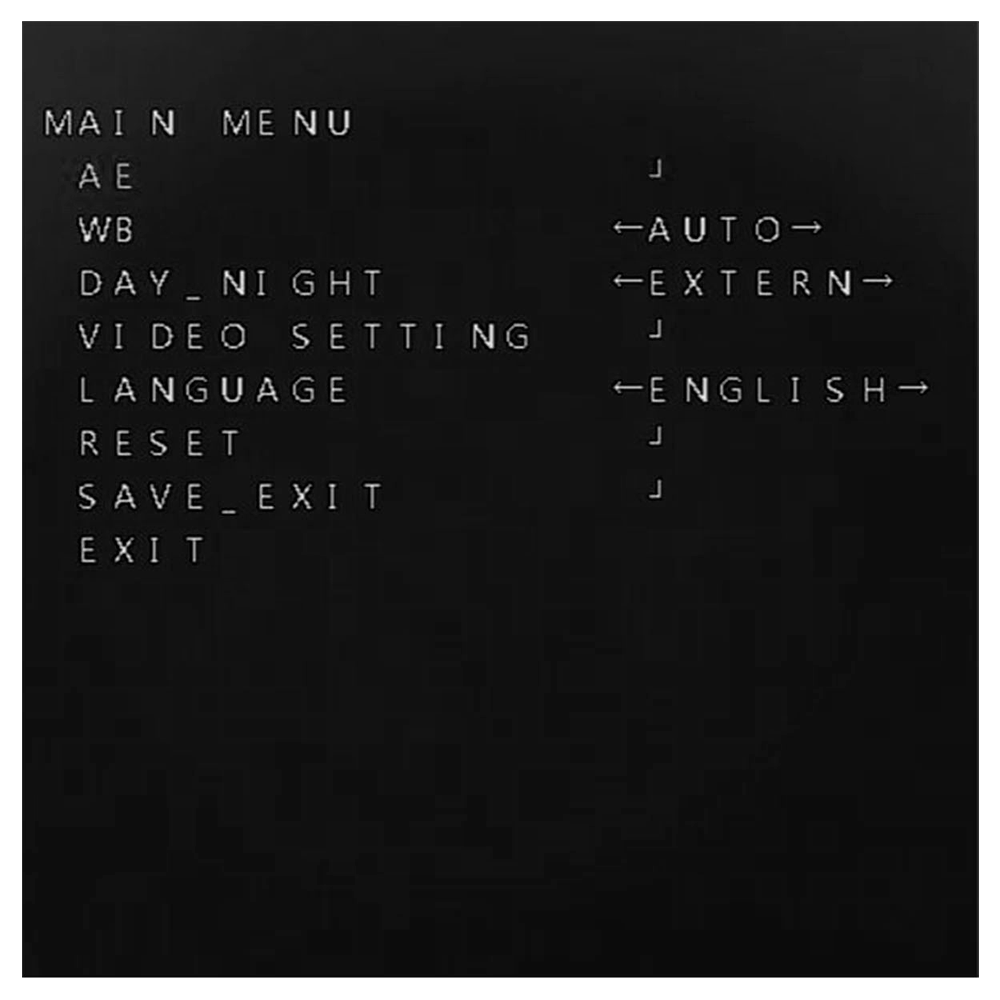

OSD Menu in HD format, remotely accessible from the recorder via the coaxial cable connection o via the integrated multi-function button, for configuring the cameras parameters:

• ATR, Adaptive Tone Reproduction which improves the gradient and the definition
• AE Shutter, automatic exposure control to optimize the input of received light
• 2D-NR, digital noise reduction system without loss of focus
• AWB, automatic white balance for true colours

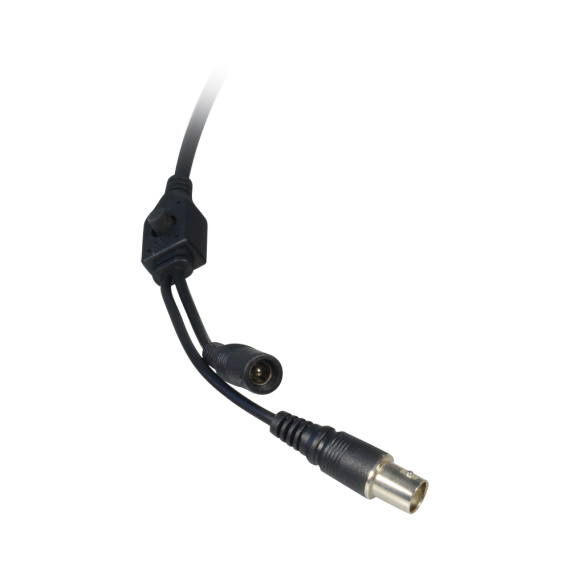

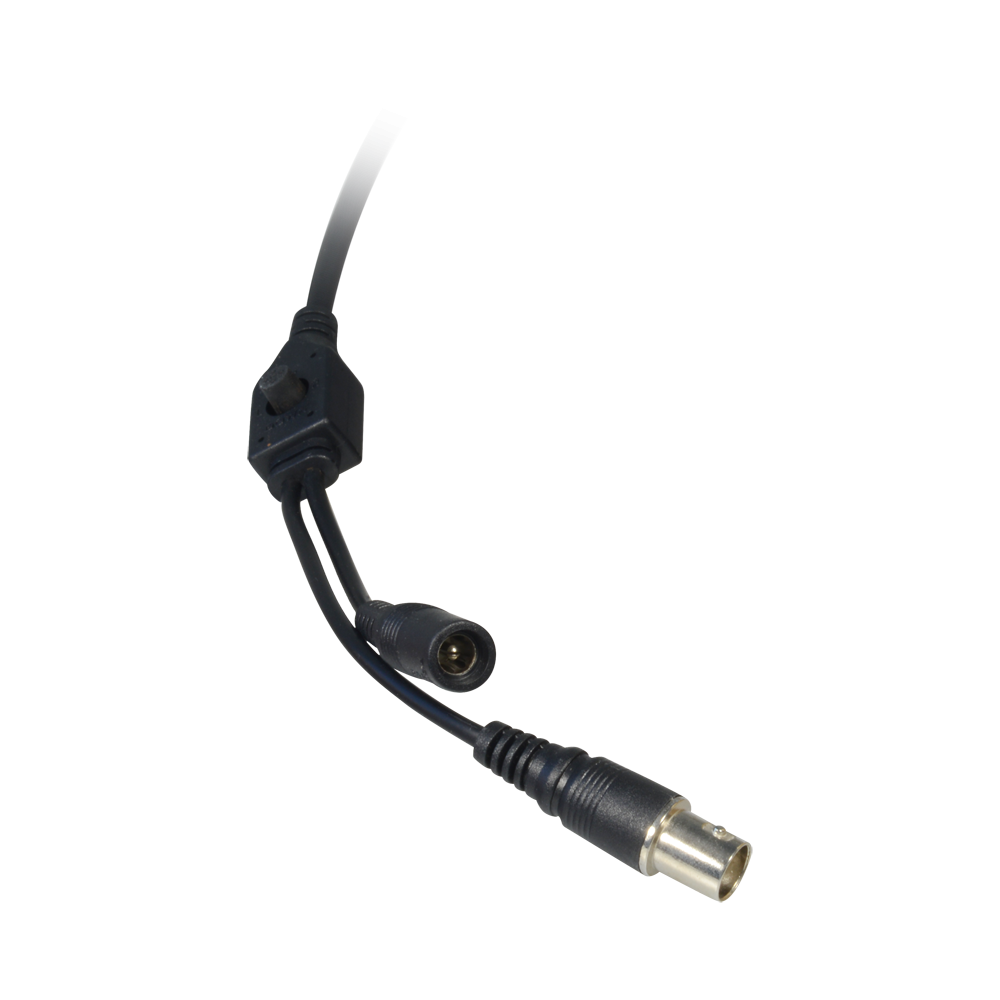

  BNC video connection in high definition formats HDTVI / HDCVI / AHD / CVBS, switchable with button.

  PVC housing, for interior use. Easy ceiling mount.





  Range	1080p PRO
  Image sensor	1/2.9" Sony© 2.12 Megapixel Exmor (model IMX322)
  DSP	V30
  Resolution	HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
  Video output	1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
  Minimum illumination	0.1 Lux
  Basic functions	OSD menu (remote), Day/Night with IR-CUT (ICR), ATR
  Configurable OSD functions	DWDR, 2D-NR, AE, AWB, AGC
  Lens	3.6 mm (79º)
  Power	DC 12 V / 300 mA
  Degree of protection	Interior
  Temp. operation	-10º C ~ +50º C
  Dimensions	57 (H) x 120 (Ø) mm
  Weight	70 g
