Magnetic contact detector that can be used on doors, windows and generally any object that opens and closes. Sends an alert signal and sets off the alarm when the magnet is separated. Also sends a low battery alert signal.
A highly reliable detector for protecting doors and windows, can also be used on drawers, wardrobes, etc.. With anti-tamper protection.

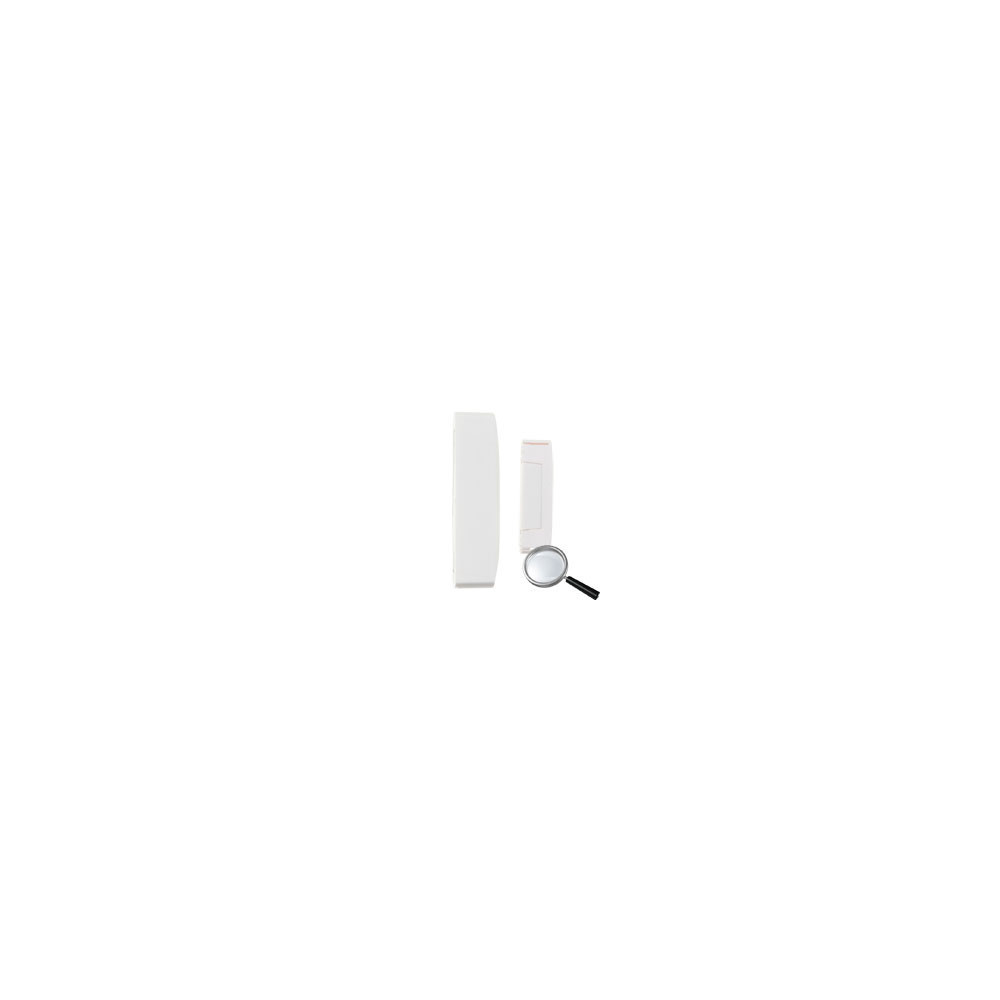

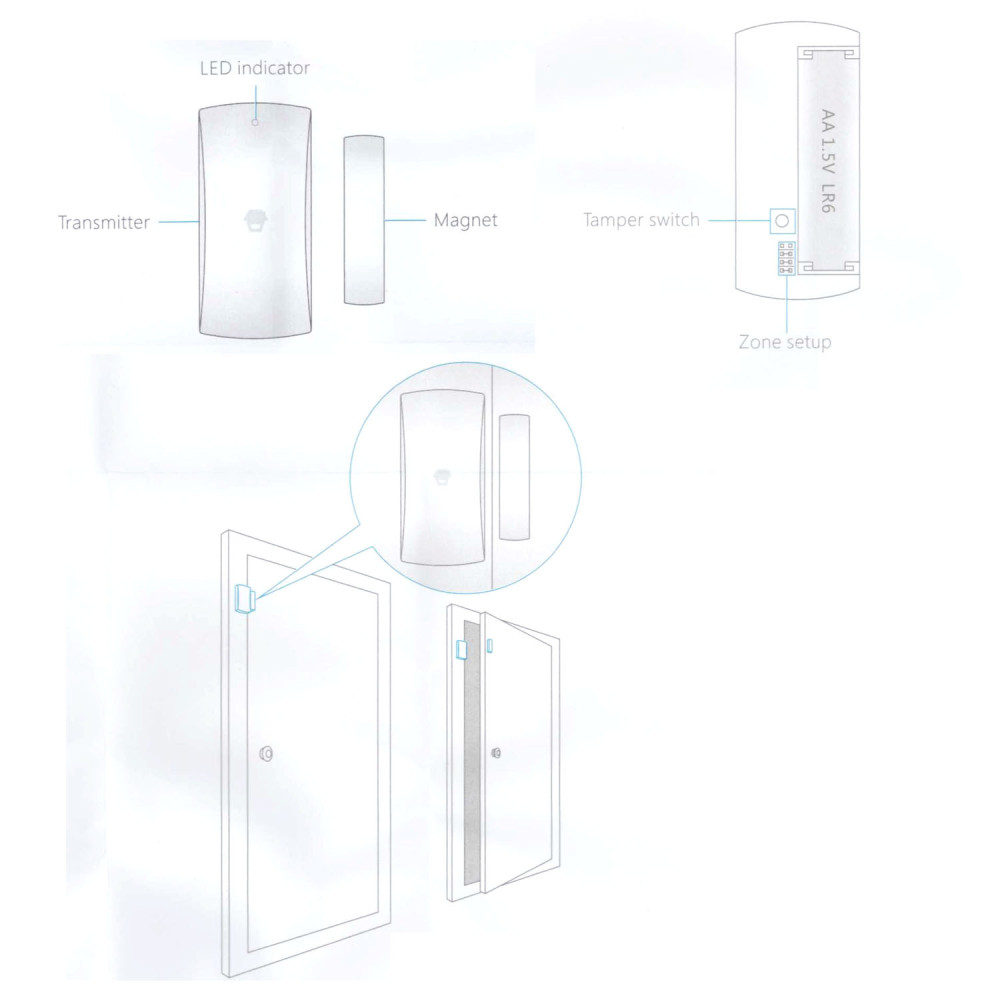

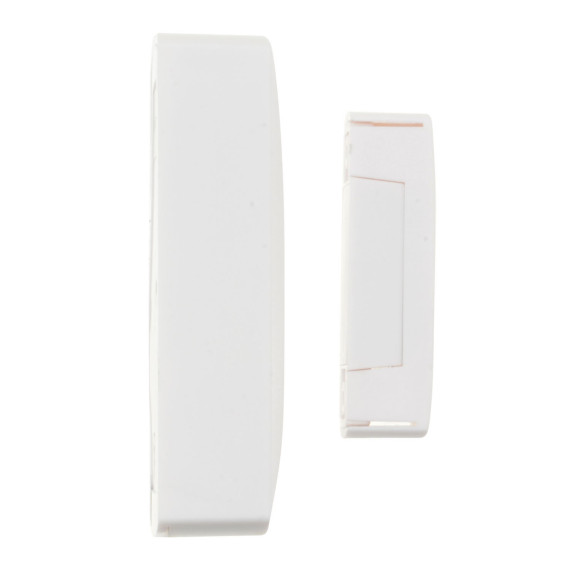

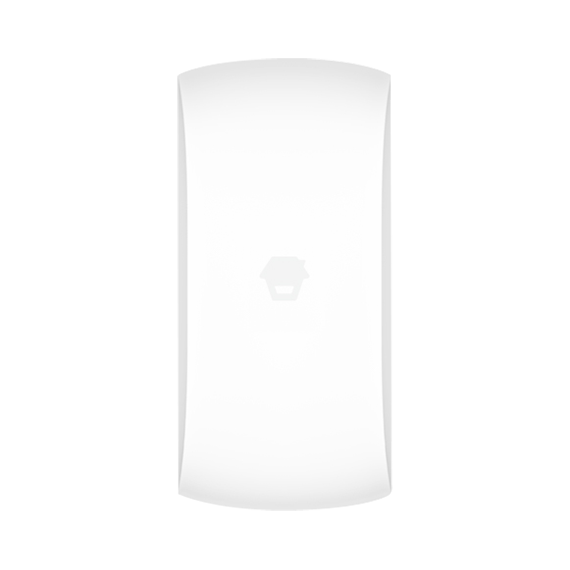

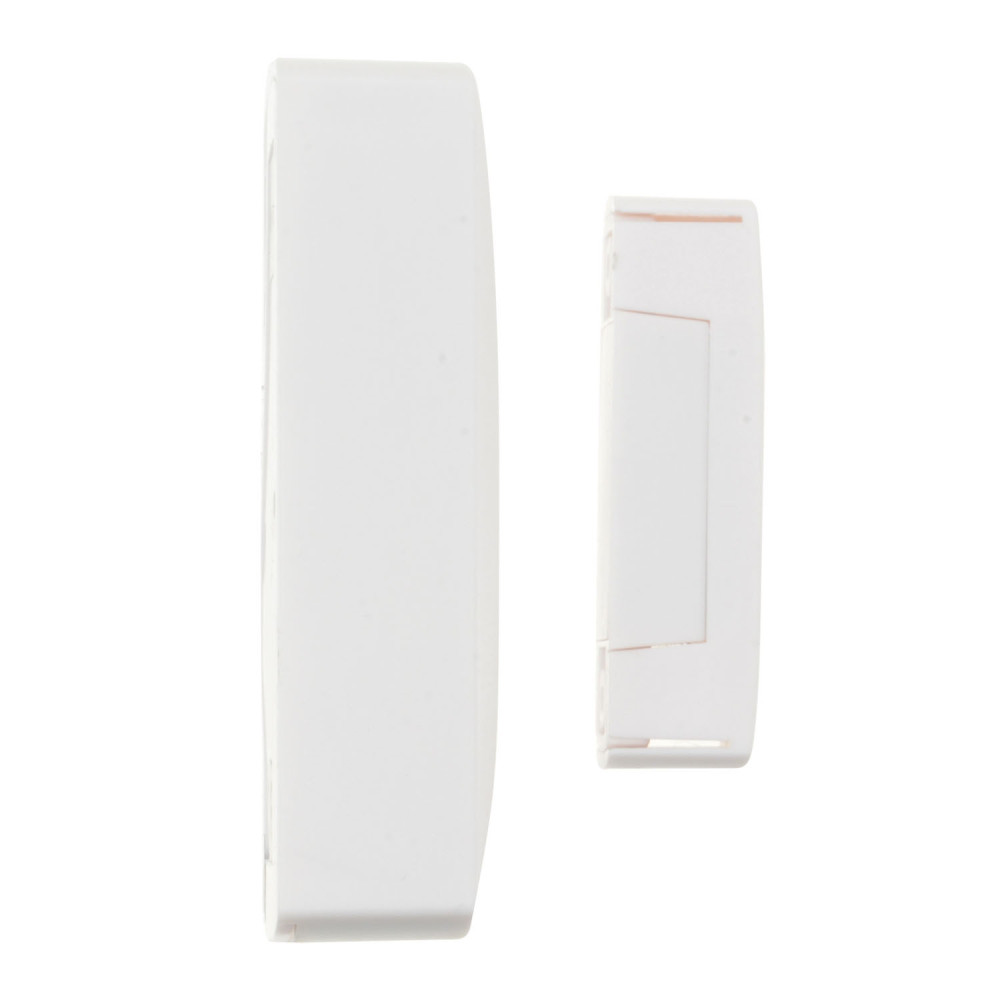

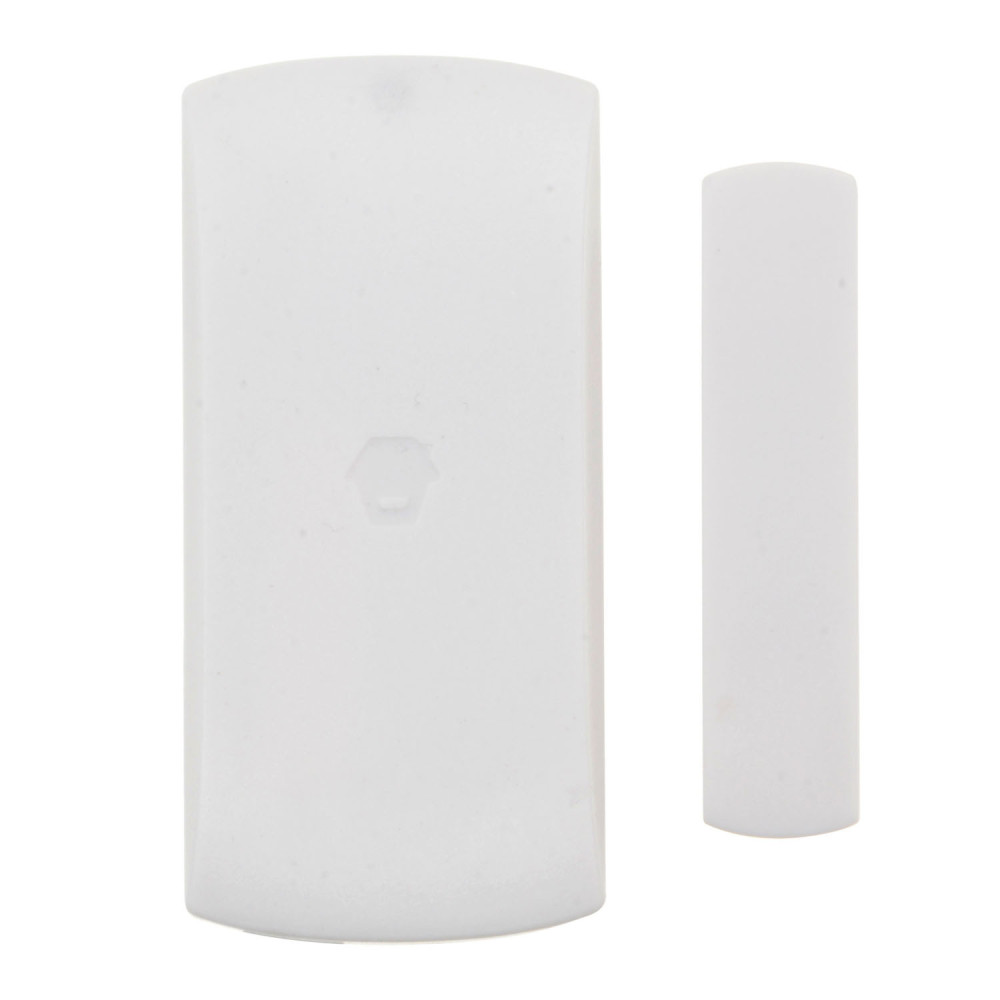

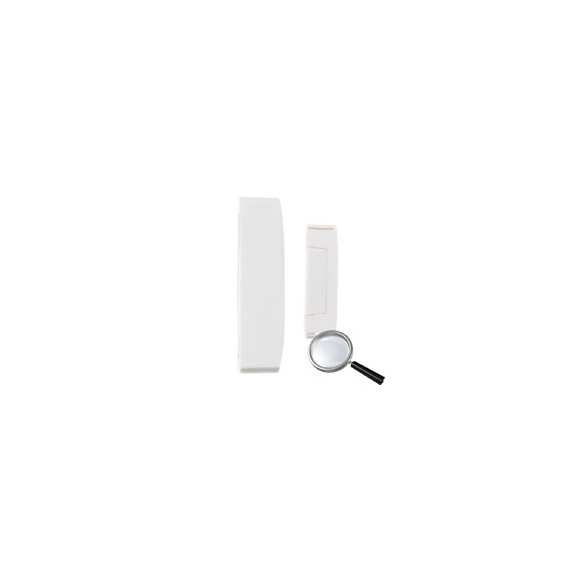

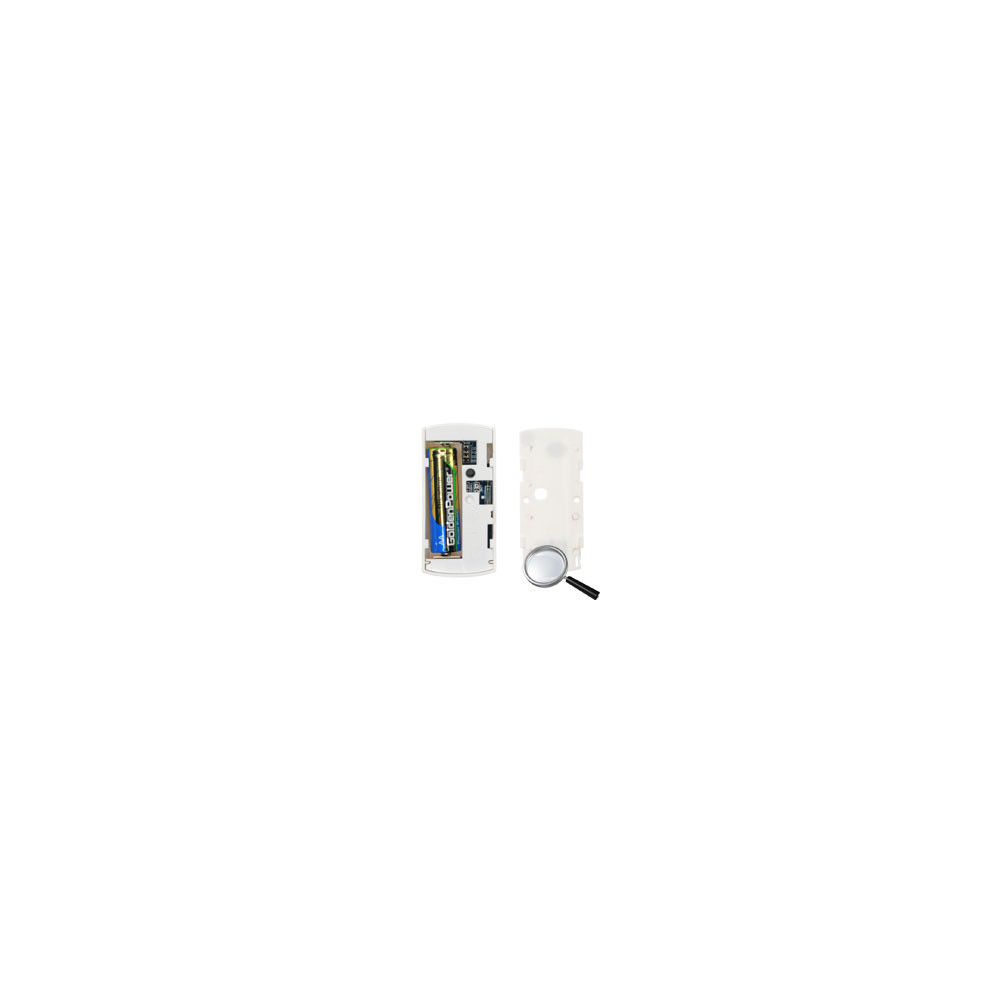

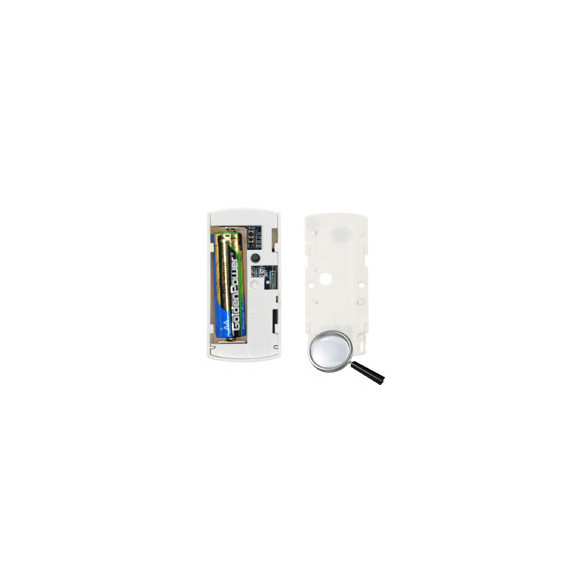

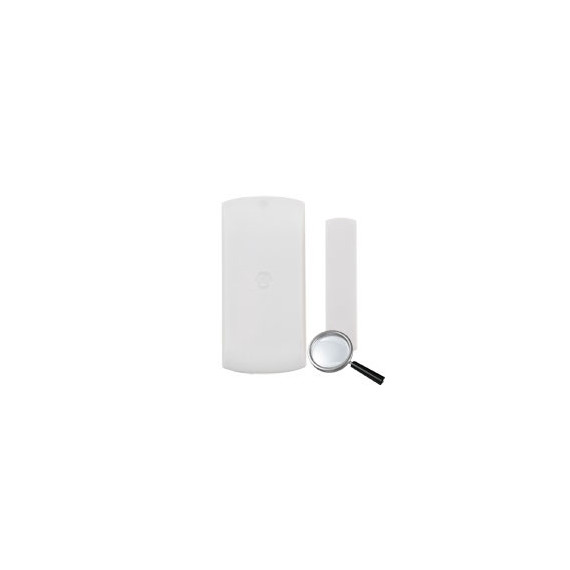

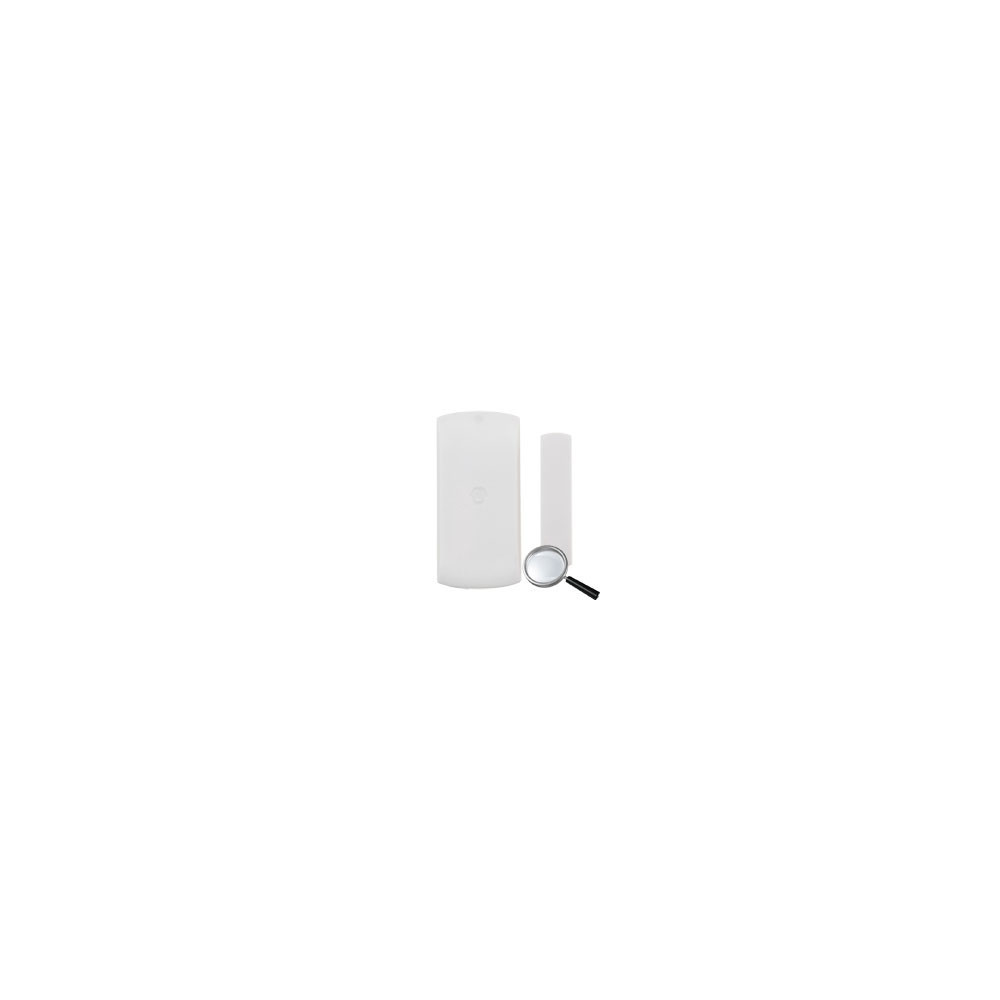

- Made up by two parts: transmitter and magnetic part
- Wireless connection 433 MHz with the panel, with maximum range of 80 m
- When the system is armed, sends an alert signal when the magnet separates

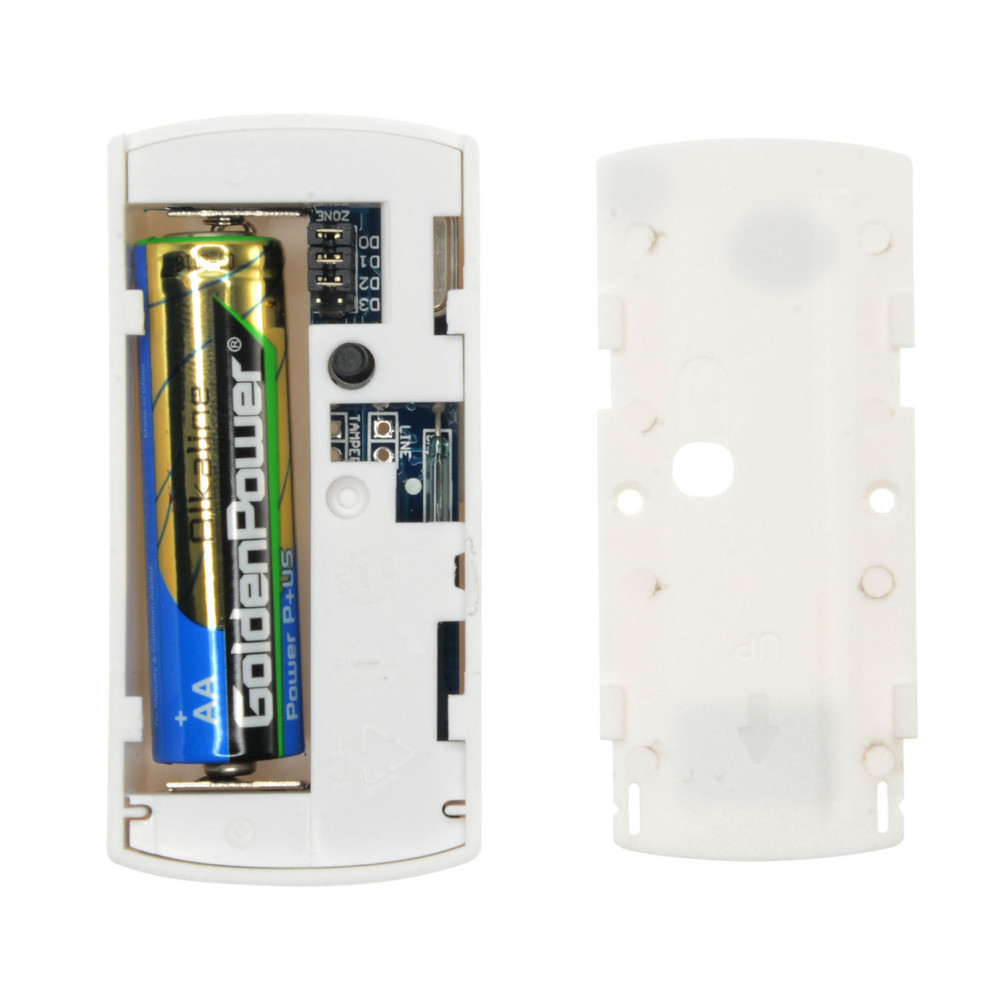

- Low battery warning light (approximate battery life, 2 years)
- Equipped with anti-opening tamper switch
- Includes cabled alarm output which can be used if preferred
- Informs the panel in case of low battery
| Power |
1 AA battery of 1,5 V |
| Transmission distance |
≤ 80 m (in open space) |
| Frequency |
433 MHz (± 75 KHz) |
| Housing material |
ABS plastic |
| Relative humidity |
≤ 80% (without condensation) |
| Transmitter dimensions |
71 (H) x 34 (W) x 17,5 (D) mm |
| Magnet dimensions |
51 (H) x 12 (W) x 13,5 (D) mm |
