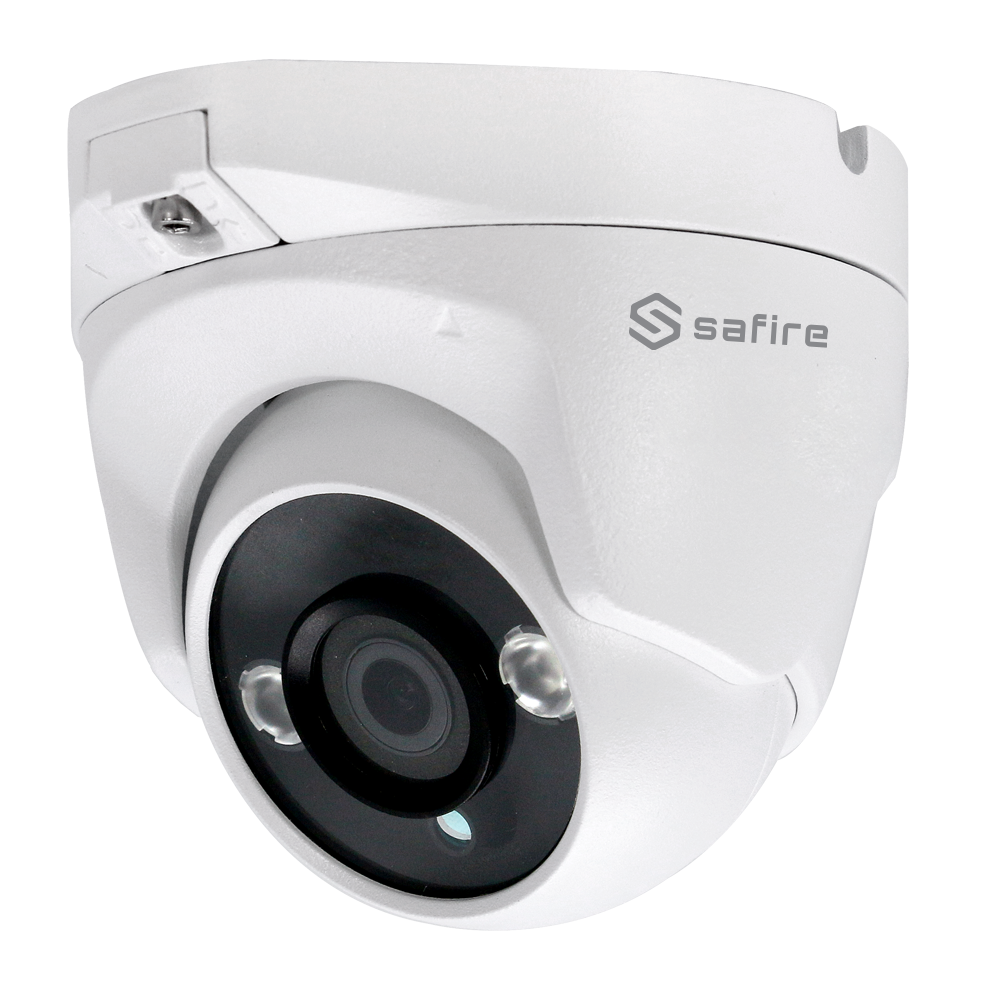

| Brand | Safire |
| Range | ECO |
| Image sensor | High Performance CMOS (5Mpx 16 :9) |
| Maximum resolution | 3K (2880x1620) to 20 fps |
| Resolution | TVI: 3K (20 fps) / 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVI: 4 Mpx (25~30 fps) / 1080p (25~30 [%VAR%] fps) AHD: 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | 105º (H), 56º (V), 125º (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |

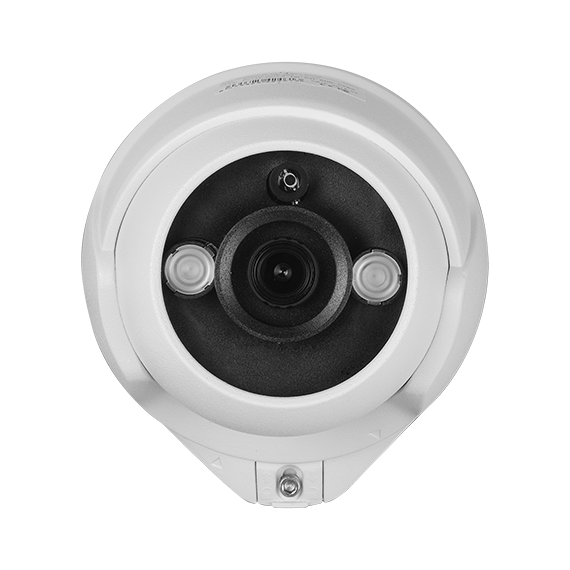

| Infrared lighting | 0 Lux / IR Matrix LEDs (range 30 m) |
| Day / Night | Auto / Color / BW (black and white) |

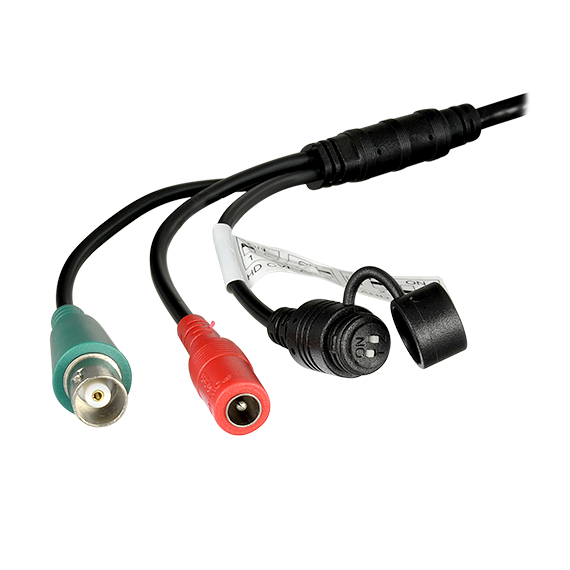

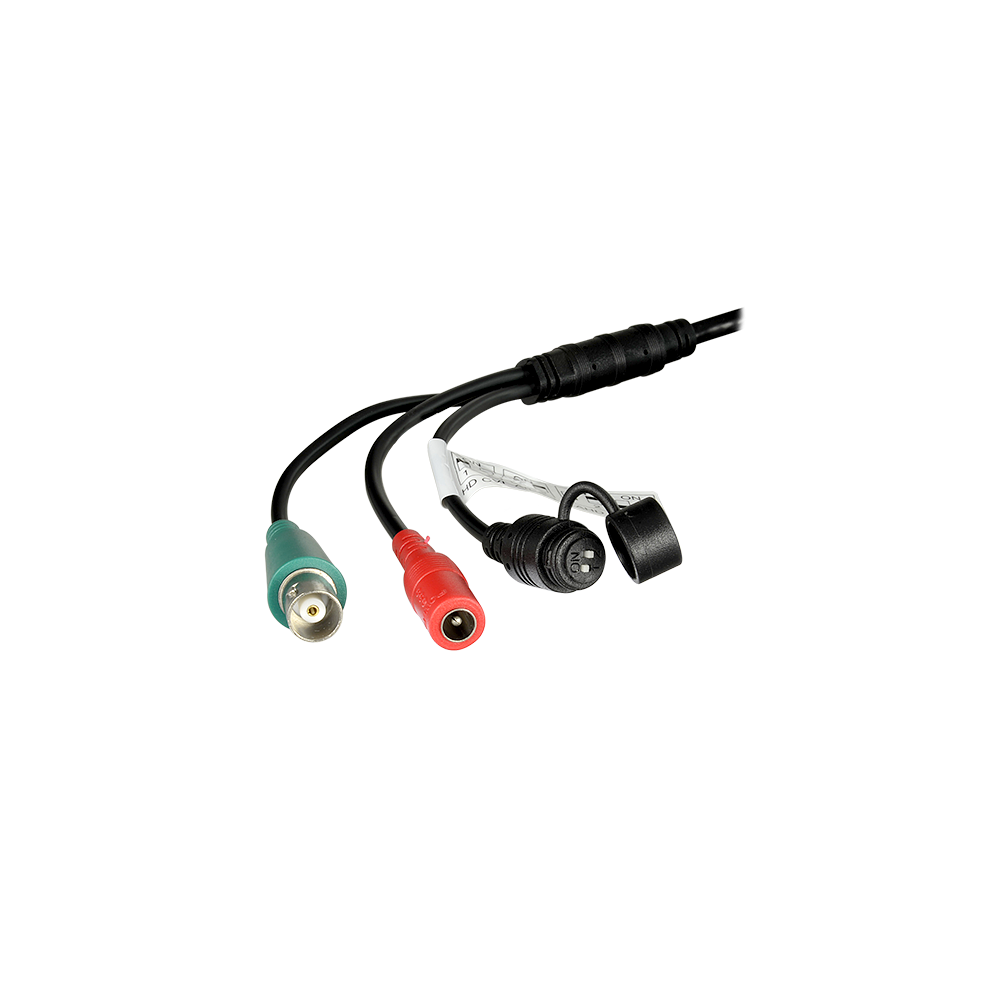

| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2D DNR, AE, ATW, AWB, BLC, Mirror, Flip |
| Alarm | No |
| Audio | No |
| Power | DC 12 V / 333 mA, 4 W max. |
| Degree of protection | Weatherproof IP66 |
| Temp. operation | -10º C ~ +50º C |
| Material | Metallic |
| Dimensions | 81.7 (D) x 93.2 (W) x 105.2 (H) mm |

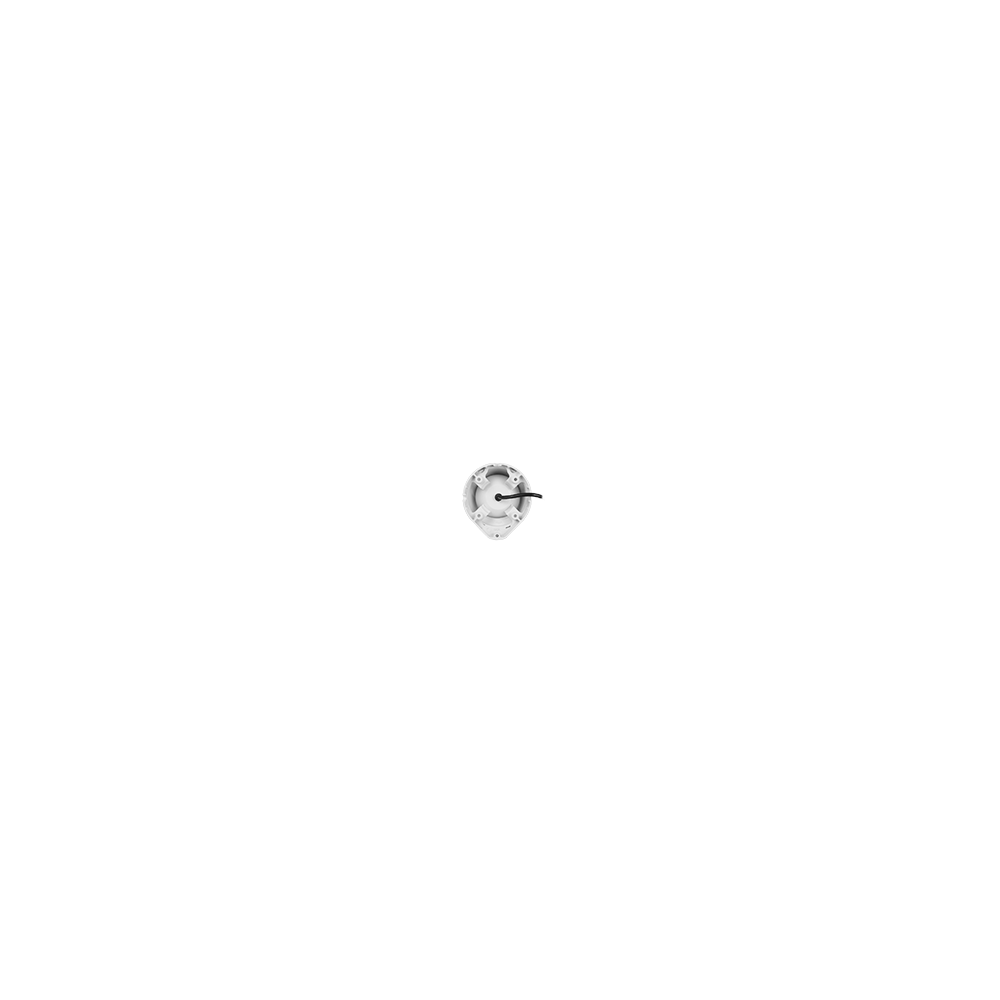

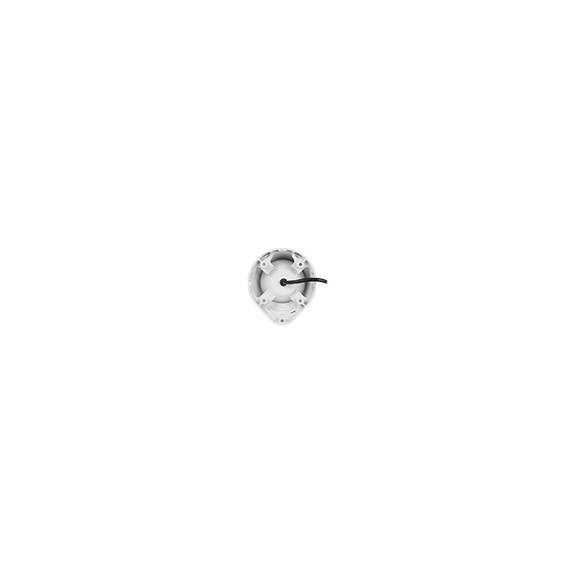

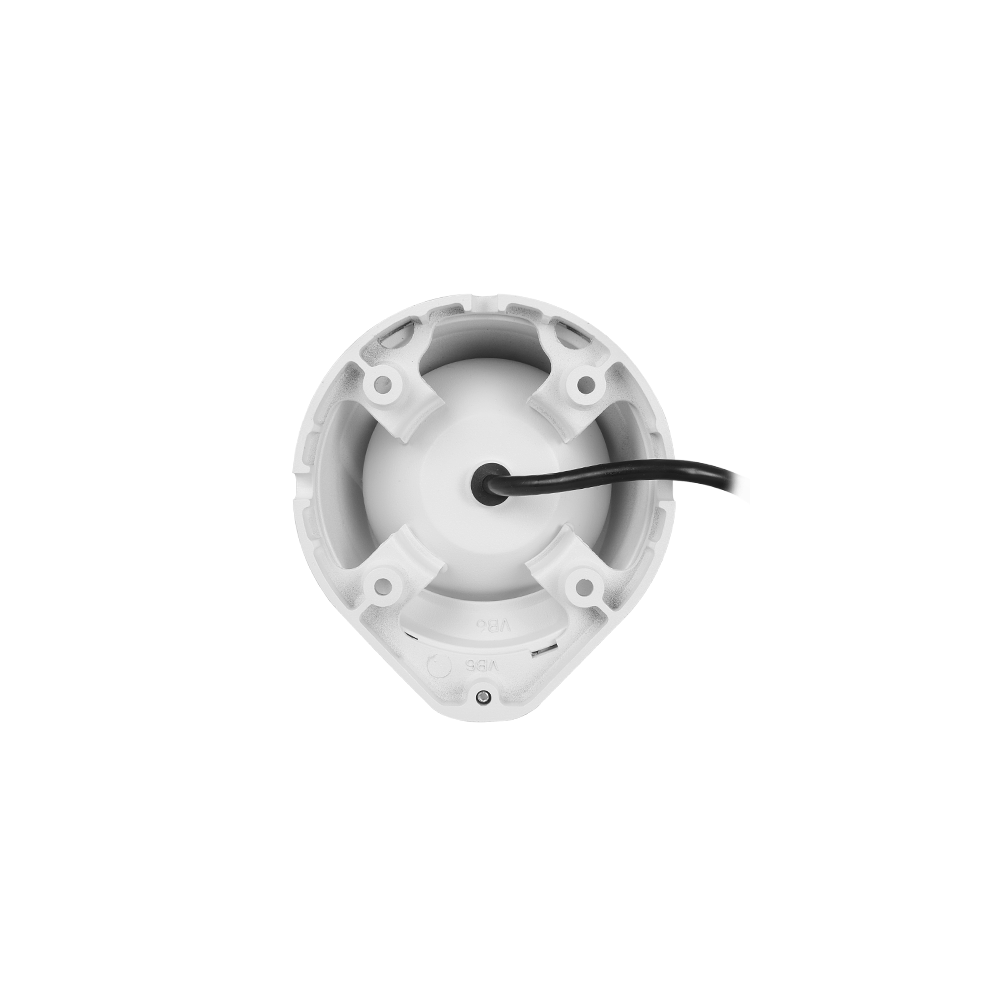

| Base diameter | 75 (Ø) mm / 4 screws |
| Weight | 290 g |
