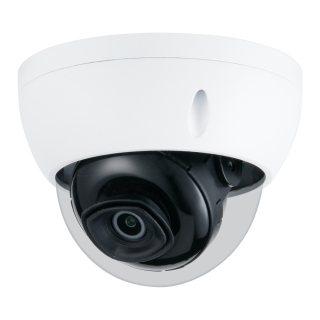

| Brand | X-SECURITY | | Image sensor | 1/2.7” CMOS image sensor |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Main Stream rate | 3840x2160 (1~15 FPS), 2688x1520 (1~25/30 FPS) |
| Extra Stream rate | 704x576 (1 ~ 25 FPS), 704x480 (1 ~ 30 FPS) |
| Compression | H.265+/H.265/H.264+/H.264 |
| Lens | 2.8 mm (H: 105º)(V:56º) |
| Minimum illumination | 0.009 Lux (Colour) |
| Infrared lighting | 0 Lux / IR LEDs (30 m) |
| Lens Adjustment | 3 Axis |
| Image improvements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| Video analysis | Line crossing | Area intrusion |
| Day / Night | Removable mechanical ICR filter |

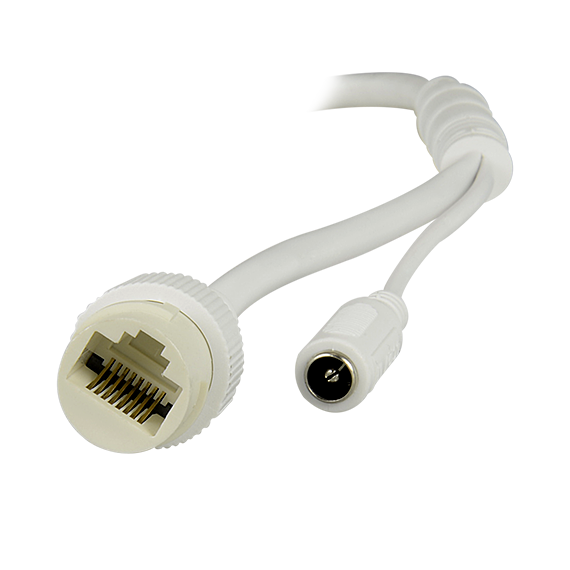

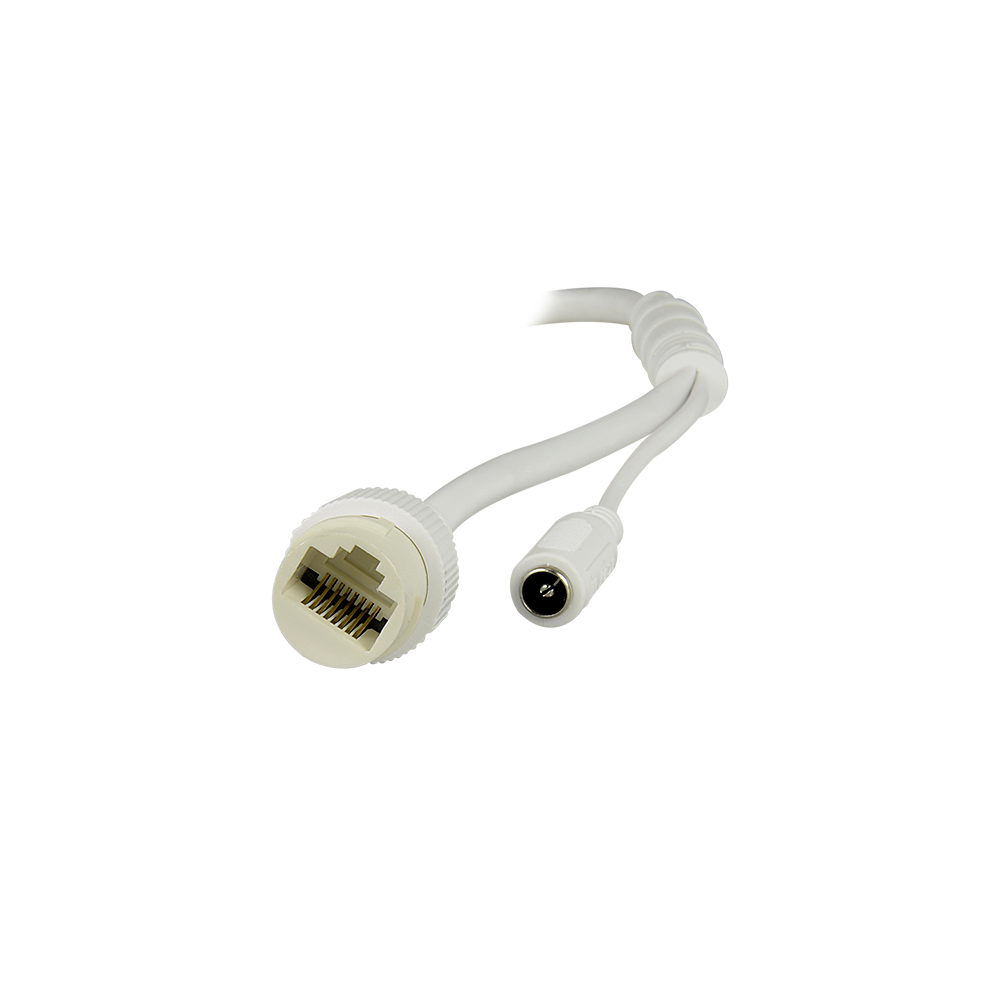

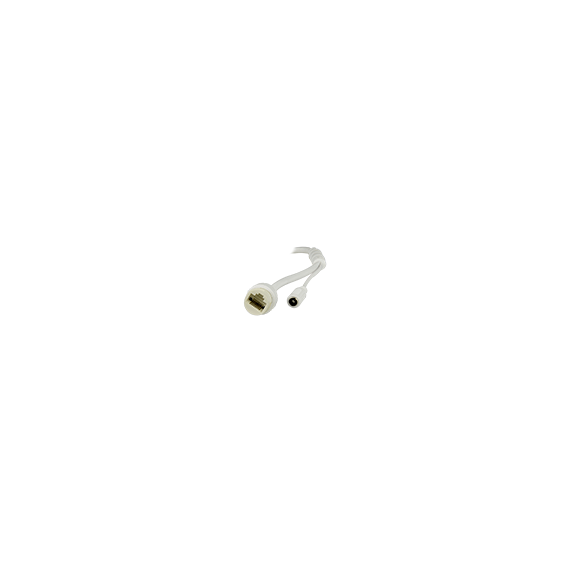

| Network interface | Ethernet 10/100 BaseT |
| Alarm | No |
| Audio | No |
| External storage | 256 GB microSD card slot |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF |
| Power | DC 12 V / 542 mA, PoE IEEE802.3af |
| Temp. operation | -40º C ~ +60º C |
| Degree of protection | Waterproof IP67, Anti-vandal IK10 |
| Dimensions | 81 mm (D) x 110 (Ø) mm |
| Weight | 350 g |
