| Range | ECO |
| Image sensor | 1/2.8" CMOS |
| Maximum resolution | 3K (5MPx 16:9) at 15 FPS |
| Resolution | TVI: 3K (15 fps) |
| Lens | 2.8~12mm varifocal |
| Viewing Angle (FOV) | 105º (H) |
| Minimum illumination | 0.1 Lux @ (F1.2, AGC ON) |
| Infrared lighting | 0 Lux / IR Matrix LEDs (range 40 m) |
| Day / Night | Auto / Color / BW (black and white) |

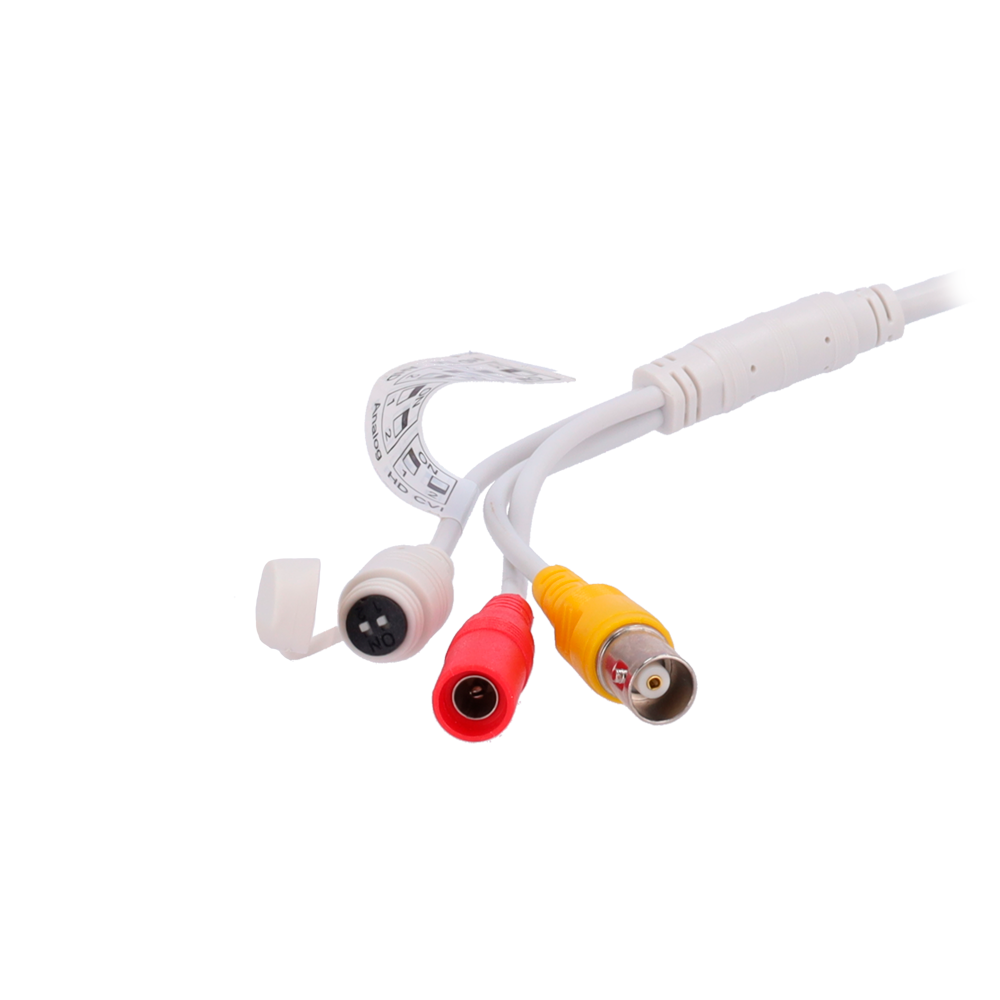

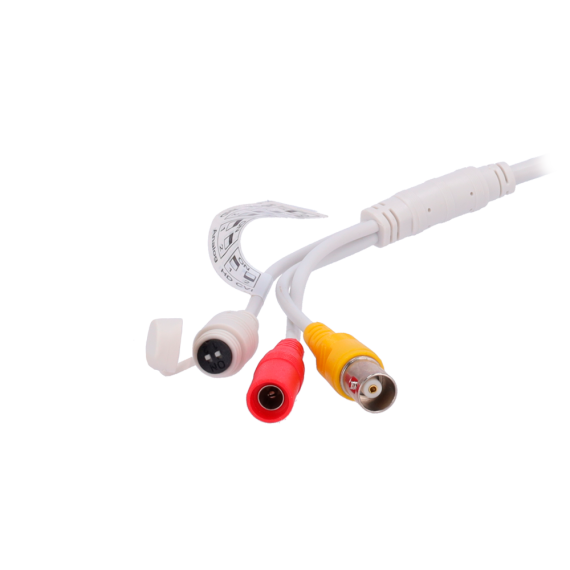

| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 3D DNR, AE, ATW, AWB, BLC, Mirror, Flip |
| Alarm | No |
| Audio | No |
| Power | DC 12 V / 250 mA, 3 W max. |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -20º C ~ +50º C |
| Material | Metal and plastic |
| Dimensions | 105.7 (D) x 132 (W) mm |
