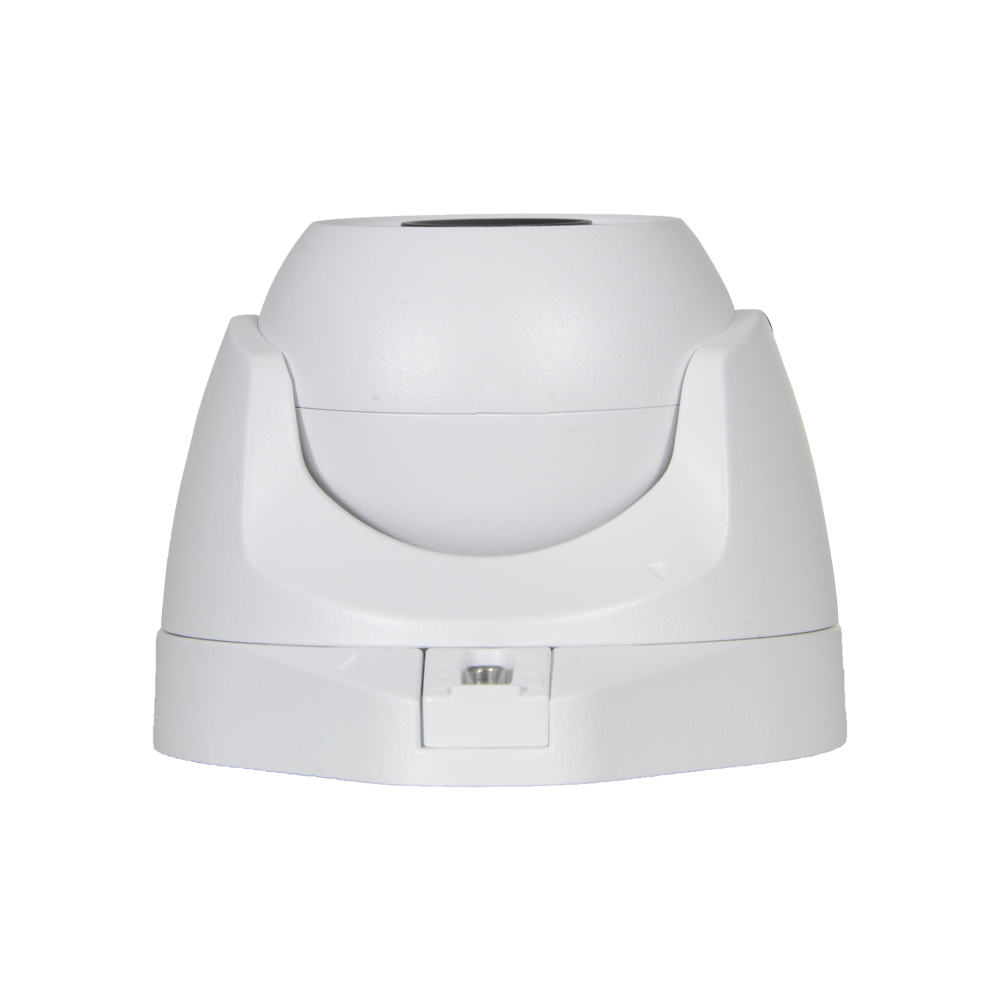

MARCA BLANCA DM821IB-F4N1

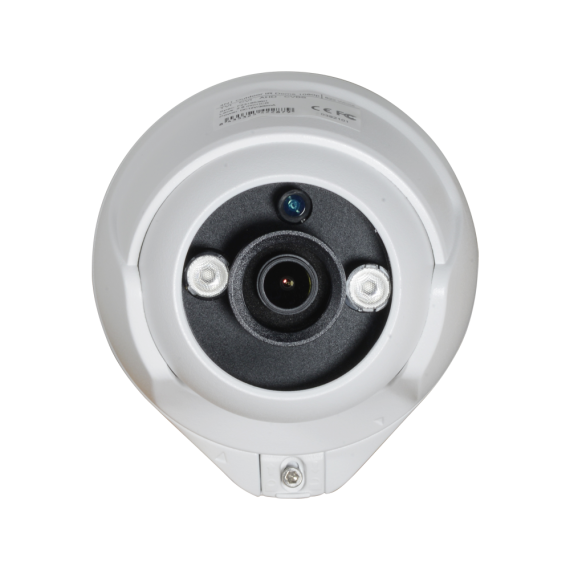

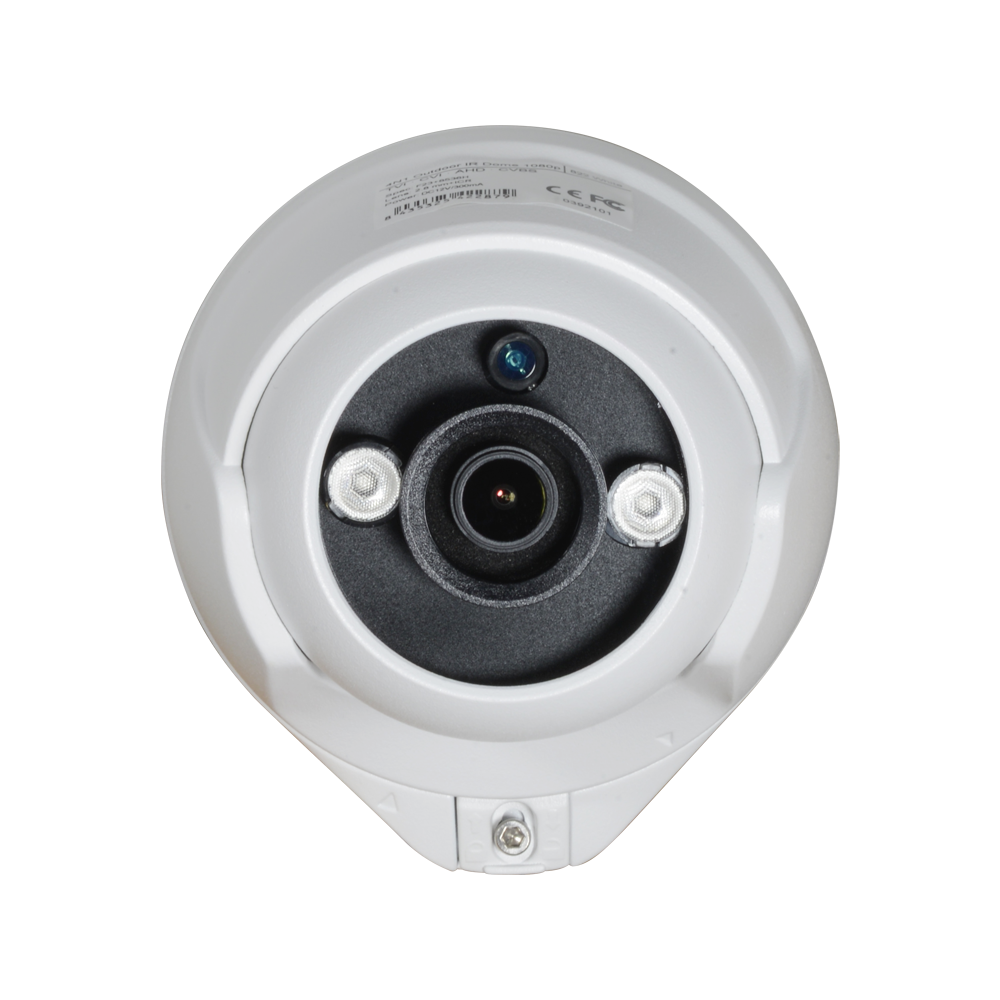

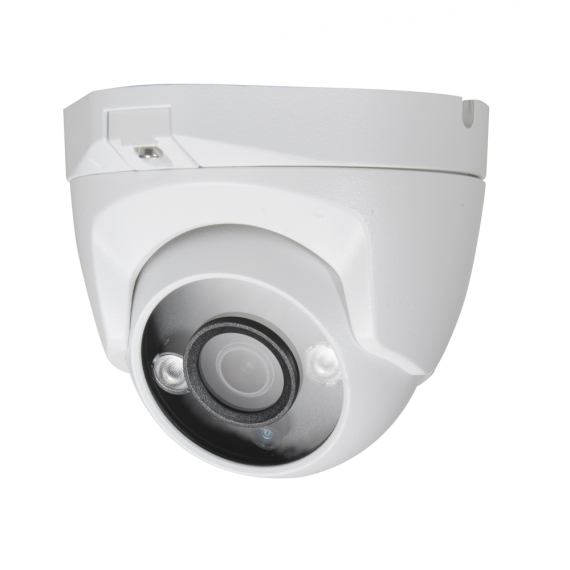

Dome camera with infrared, suitable for indoor. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 1080p ECO.

Composed by a sensor 1/2.7" 2.1 megapixel (model BG0806) and DSP (model V30), that offers a resolution of 1080p to 25 FPS. Fixed lens of 3.6 mm with a diagonal vision field of 79º. 2 infrared LEDs Array that are activated automatically giving a sharp image at 0 Lux (total darkness) at a maximum distance of 30 m. It has automatic IR Cut filter that permits clear, real colour, daytime images.

Thanks to its DSP it has OSD menu in HD formats, accessible remotely from the recorder via the coaxial cable, which allows you to configure the camera and adjust the most important parameters:

• AE Shutter, automatic exposure control to optimize the input of received light
• 2D-NR, digital noise reduction system without loss of focus
• AWB, automatic white balance for true colours

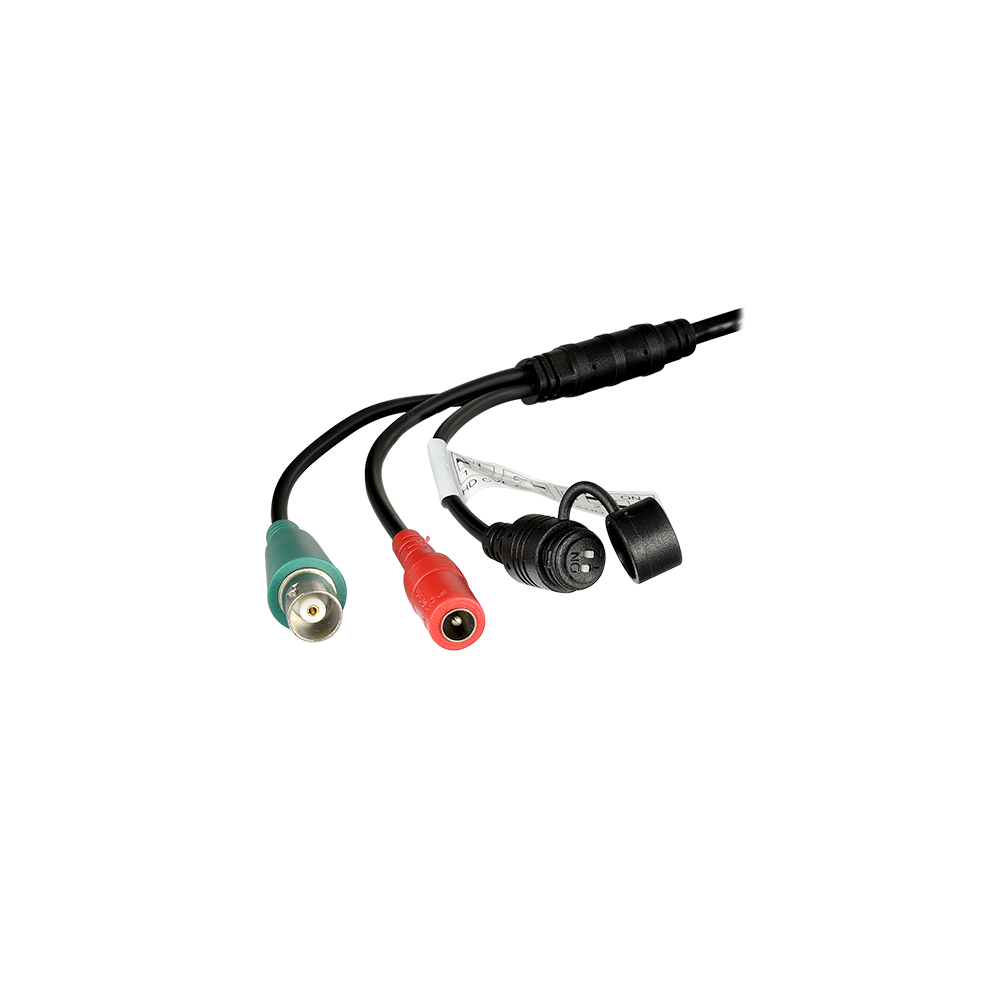

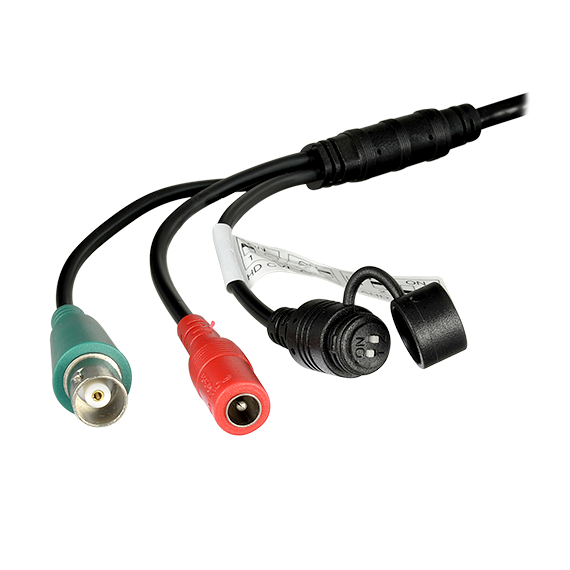

  Video connection via BNC in HD formats HDTVI / HDCVI / AHD / CVBS, switchable by switch by DIP combination.

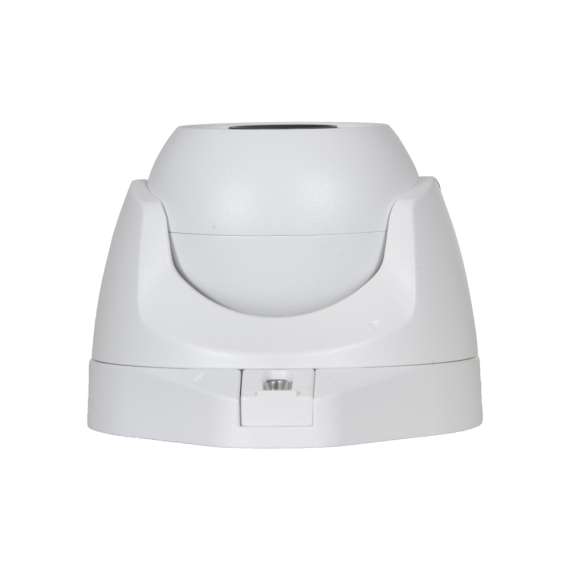

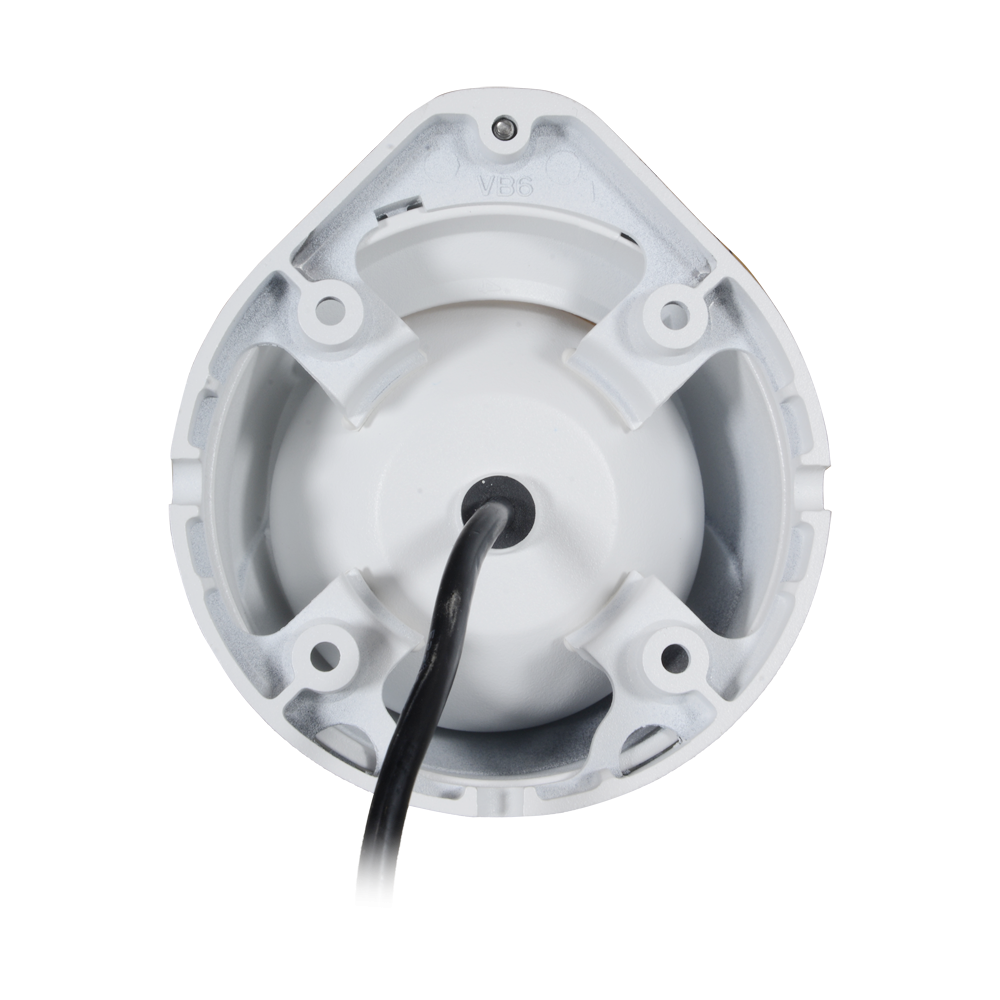

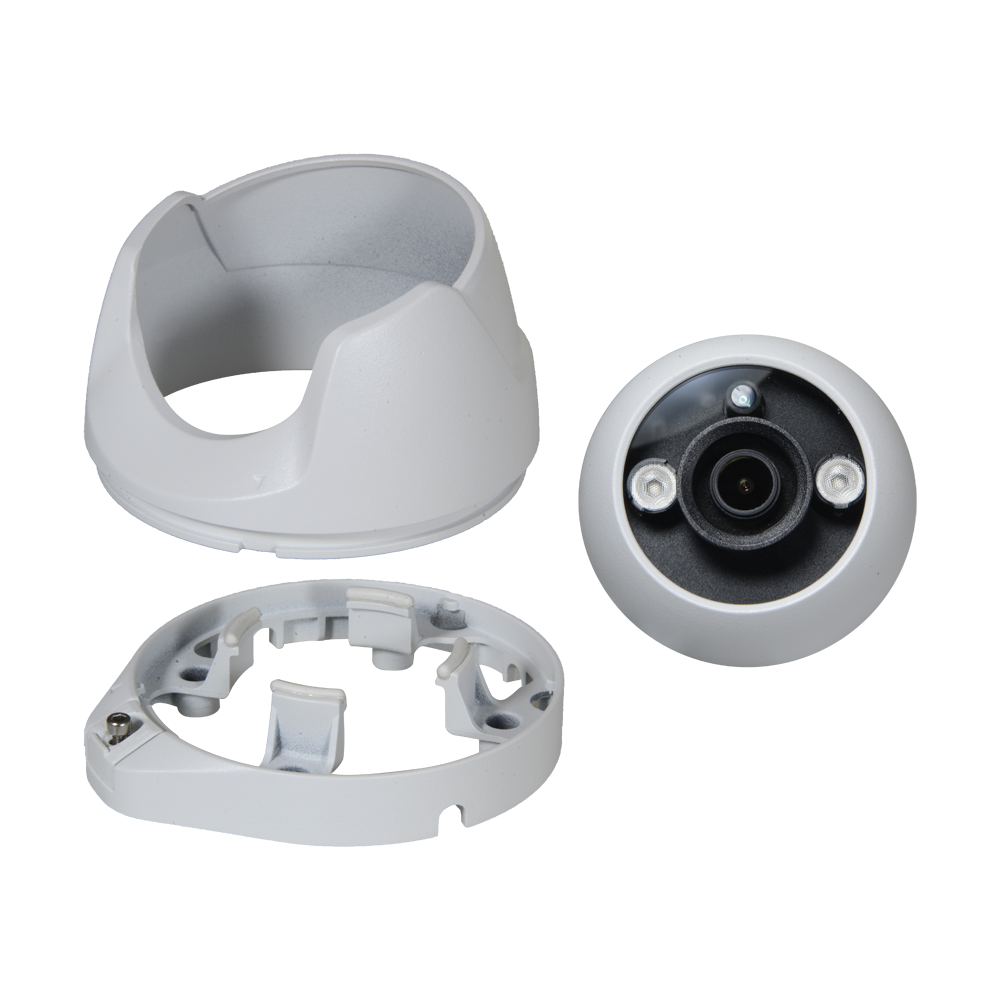

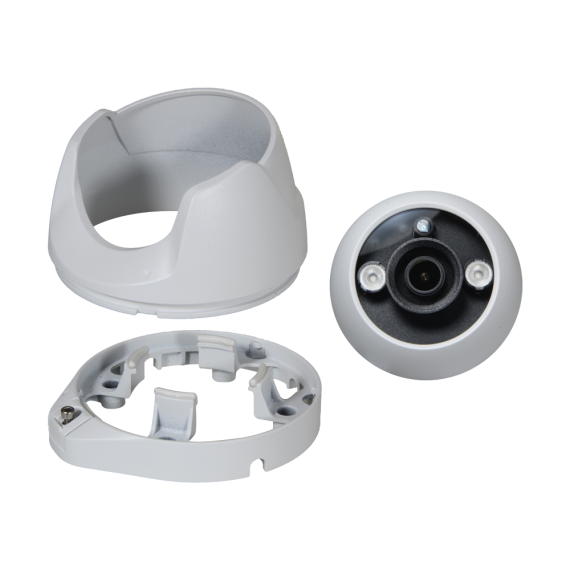

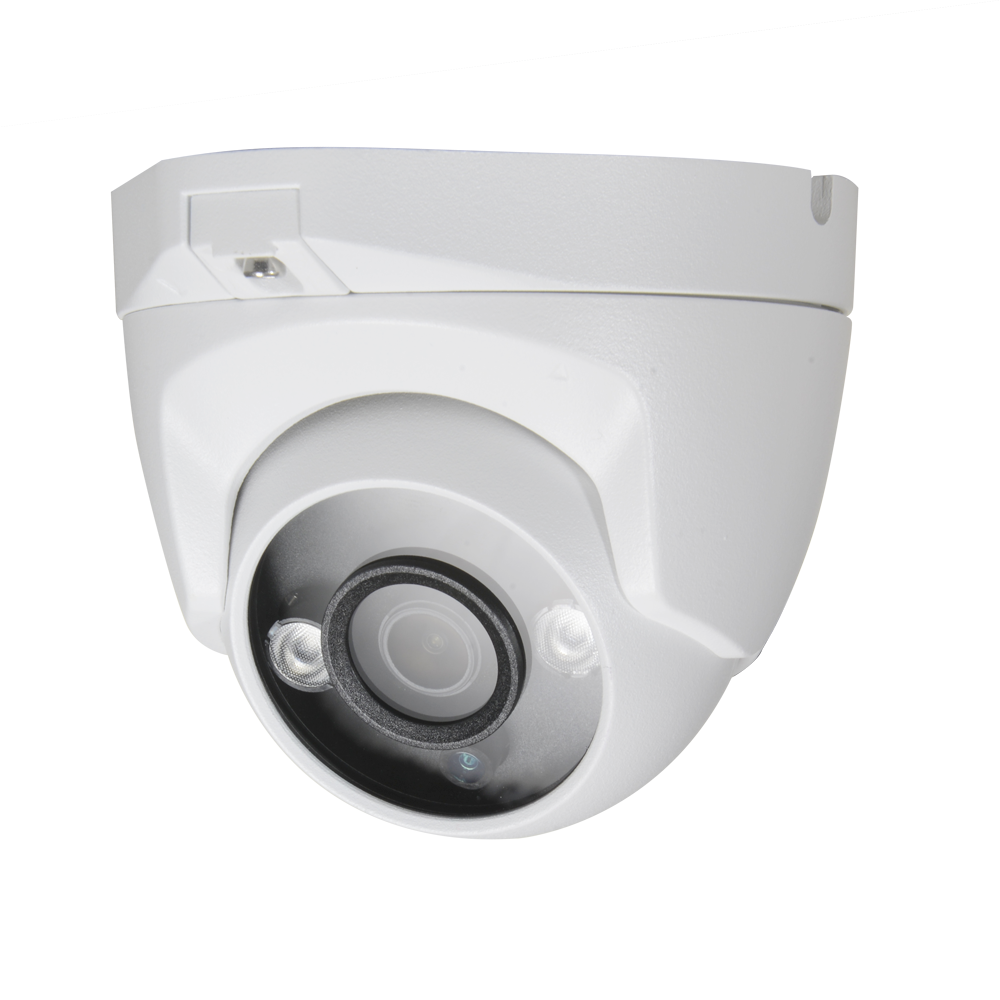

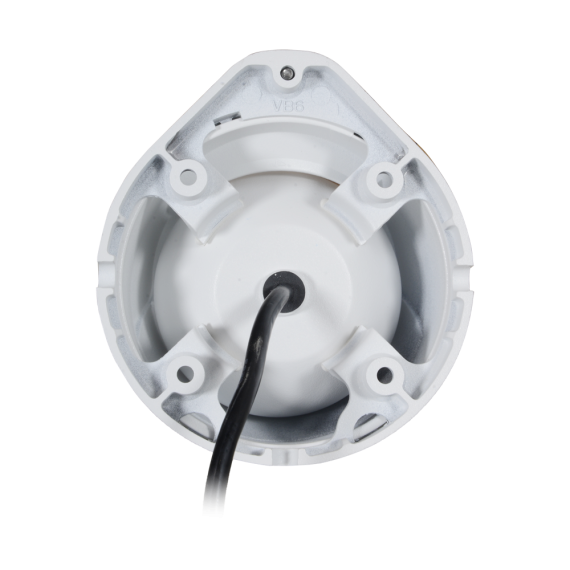

  The housing is made of aluminum and is weatherproof according to protocol IP66, which makes it suitable for both indoor and outdoor. It has a sphere with three axes of rotation (3AXIS) that allow easy and accurate adjustment of the viewing angle, with wall or ceiling installation. It incorporates a screw connecting the base with the camera structure, for easy installation.





  Range	1080p ECO
  Image sensor	1/2.7" 2.1 Megapixel (model BG0806)
  DSP	V30
  Resolution	HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
  Video output	1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
  Minimum illumination	0 Lux / 2 IR LEDs Array (30 m)
  Basic functions	OSD menu (remote), Day/Night with IR-CUT (ICR)
  Configurable OSD functions	DWDR, 2D-NR, AE, AWB, AGC
  Lens	3.6 mm (79º)
  Power	DC 12 V / 300 mA
  Degree of protection	Weatherproof IP66
  Temp. operation	-10º C ~ +45º C
  Dimensions	70 (H) x 94 (Ø) mm
  Weight	300 g
