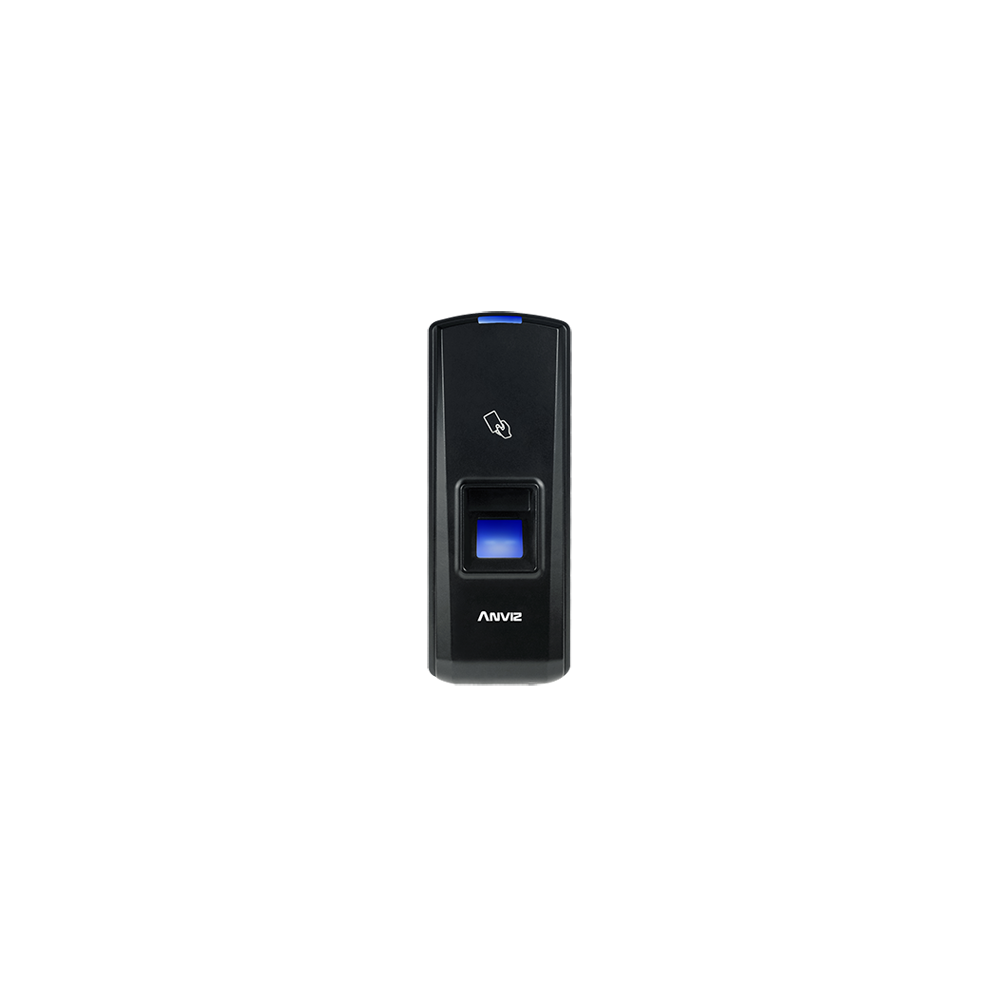

ANVIZ T5

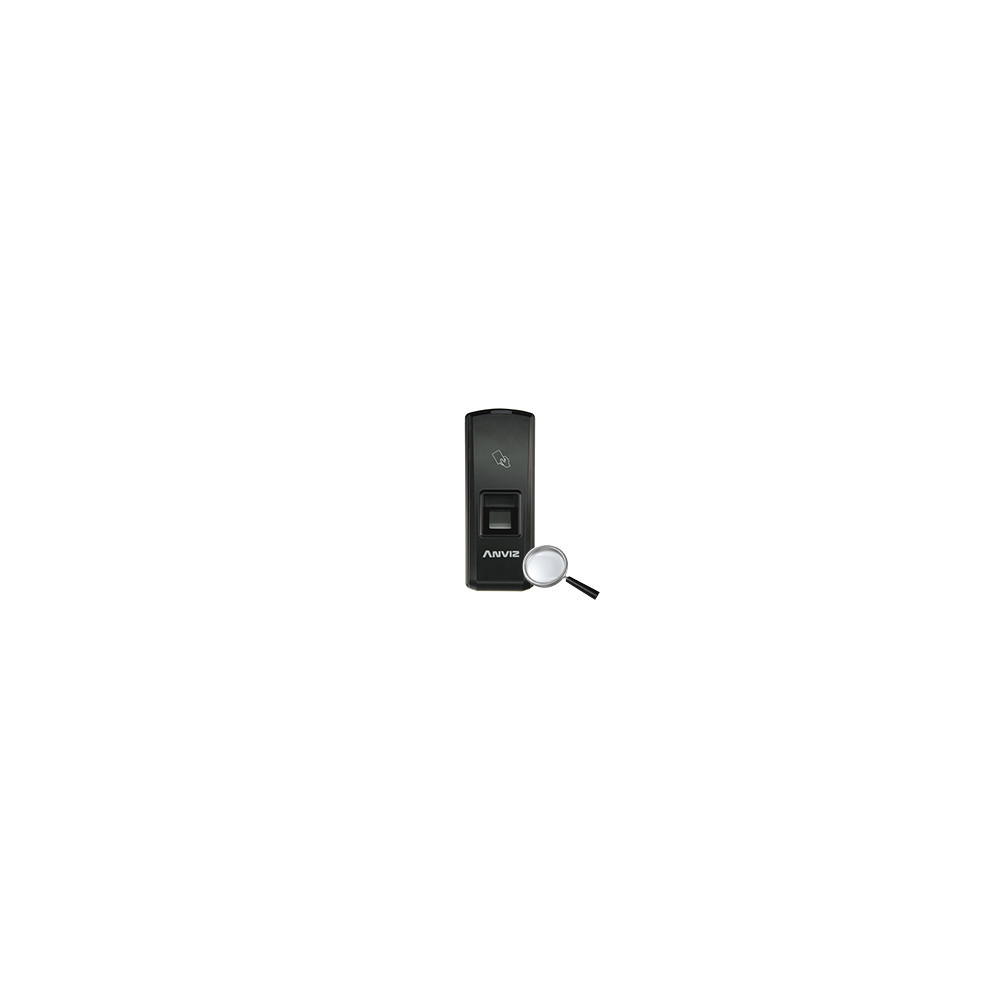

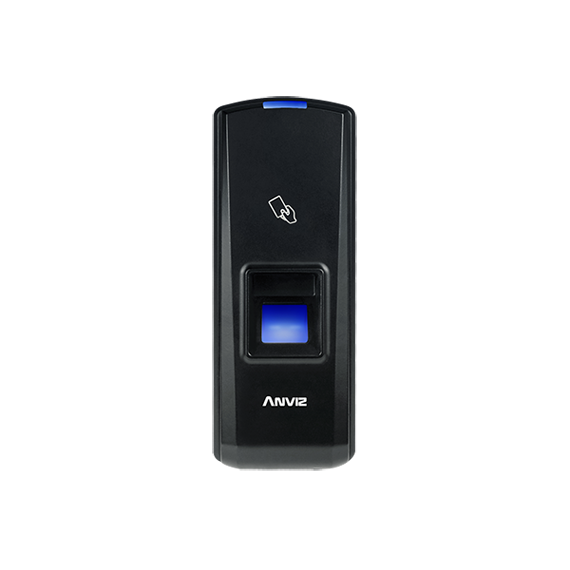

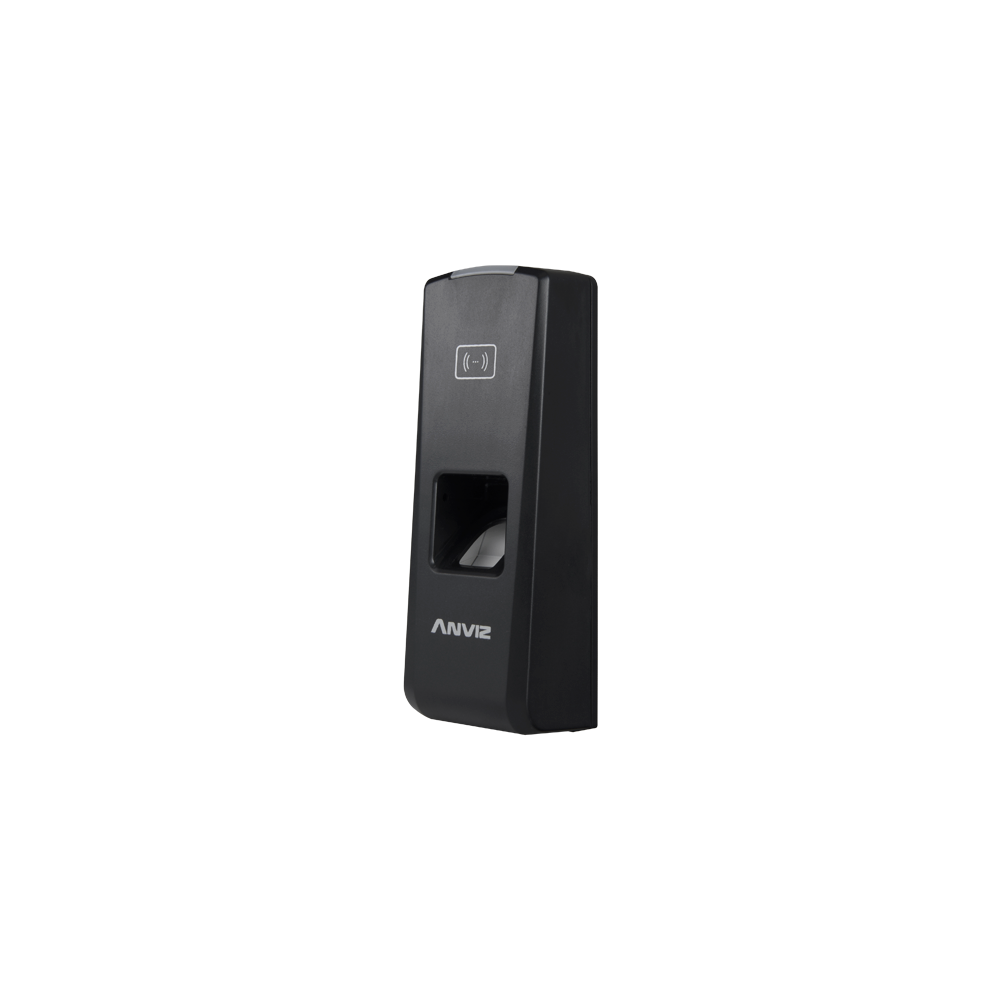

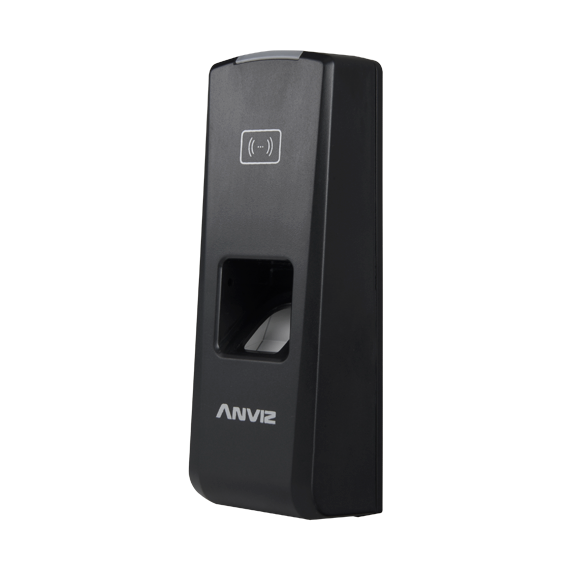

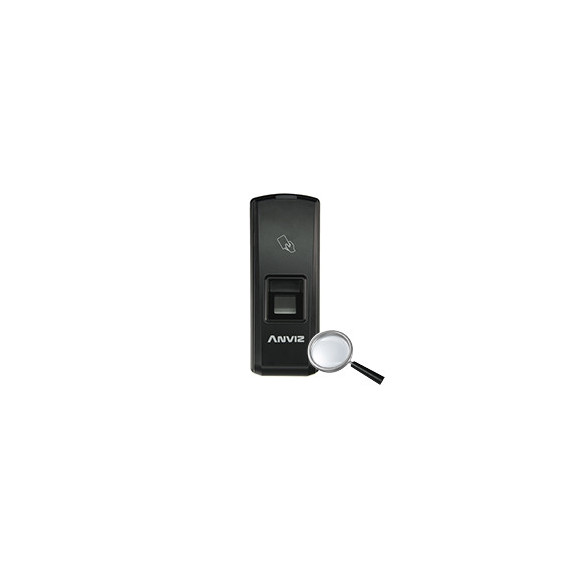

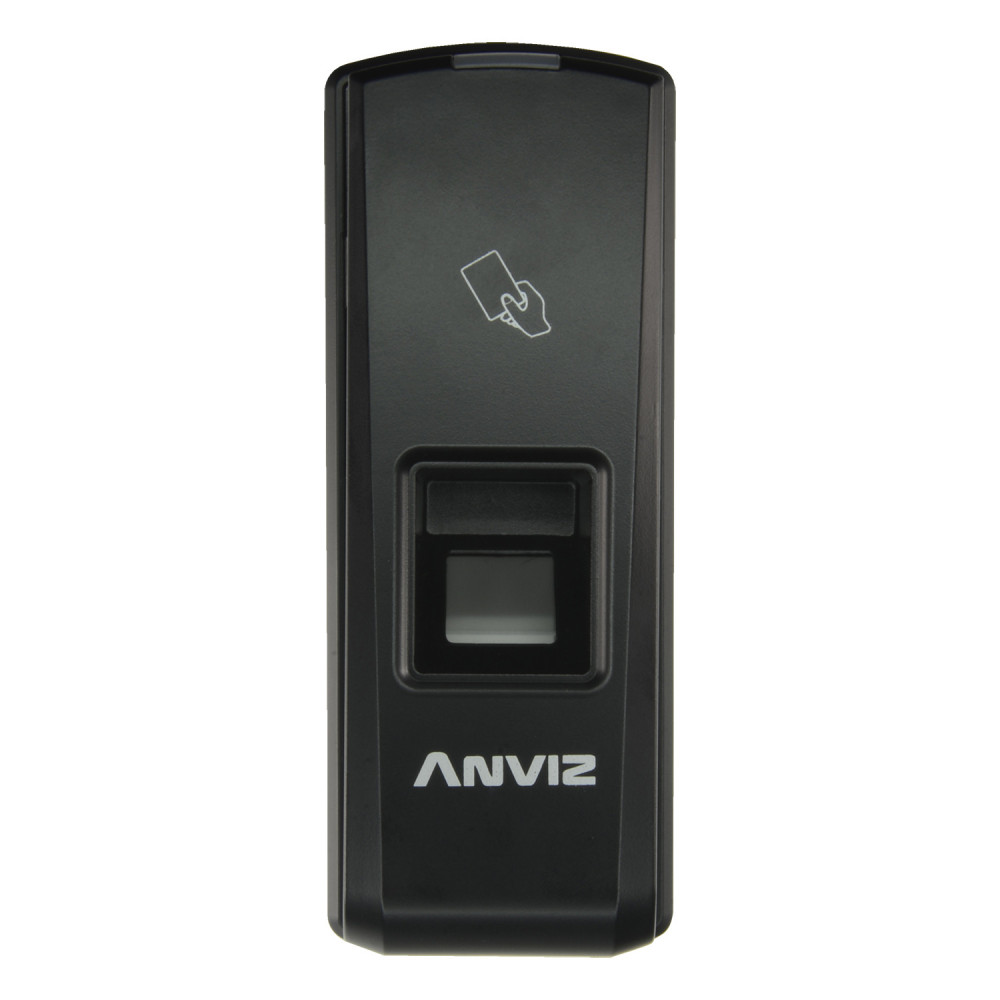

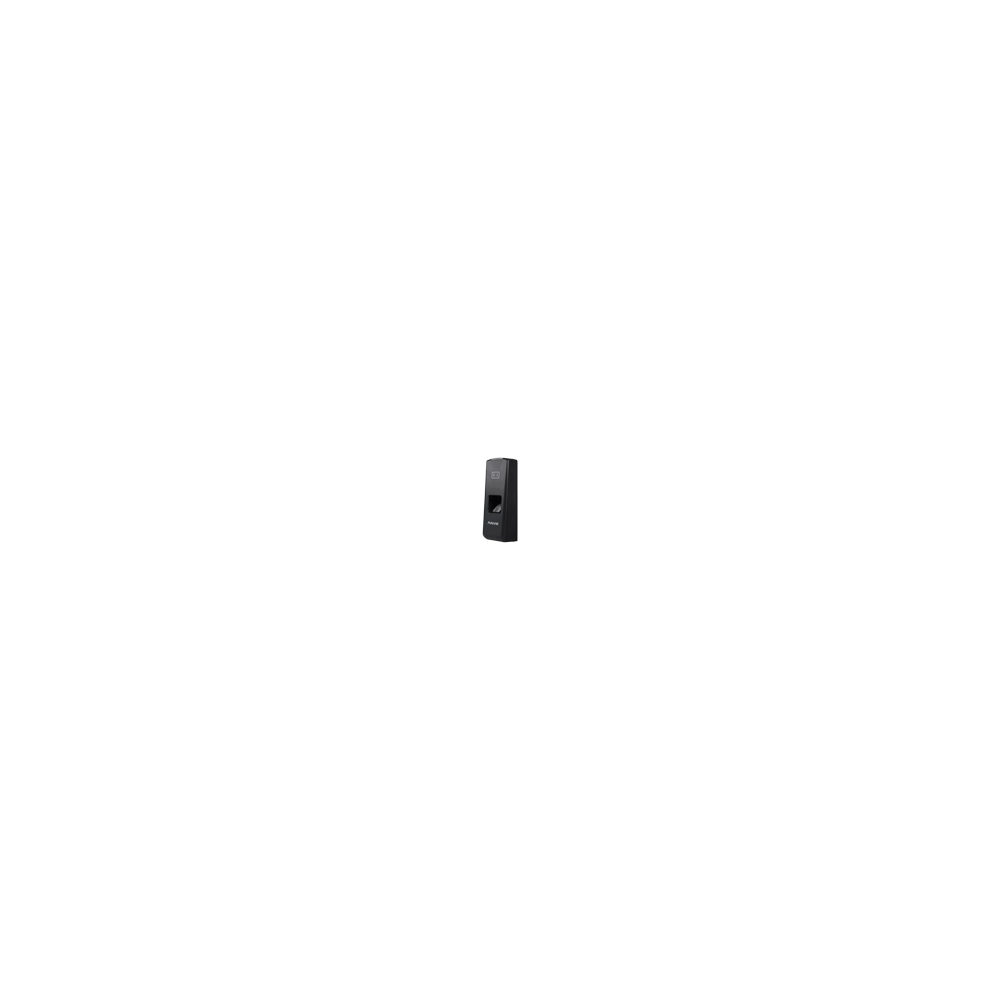

ANVIZ Fingerprint and RFID reader for access control.
Simple standalone reader for fingerprints, RFID cards or combined use. Capacity for up to 1000 fingerprints/cards & up to 50000 registers.

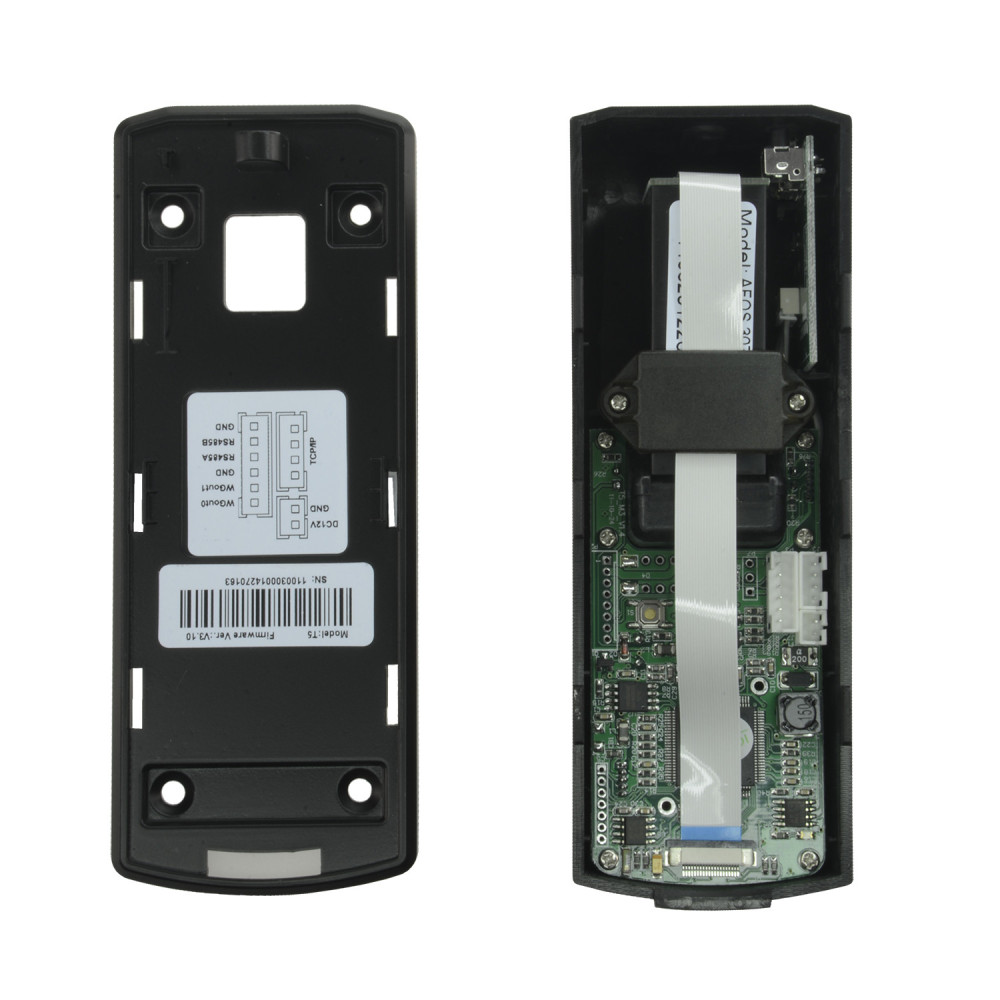

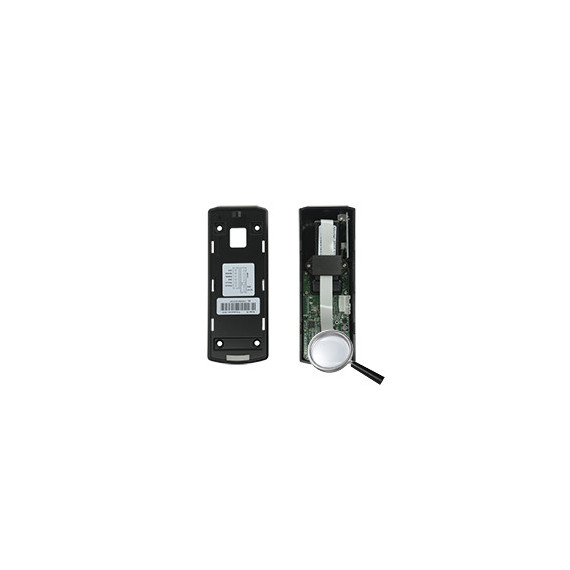

New generation resistant optical fingerprint sensor encapsulated and sealed. It has a powerful Texas Instruments Stellaris® processor 32-Bit and incorporates the BioNano algorithm that allows fast and reliable reading of dry, wet and cracked fingerprints, as well as intelligent and progressive improvement of the fingerprint information with each new reading. Compatible with standard EM RFID proximity cards. Enroll new cards using a master card (included) or via the management software (also included).

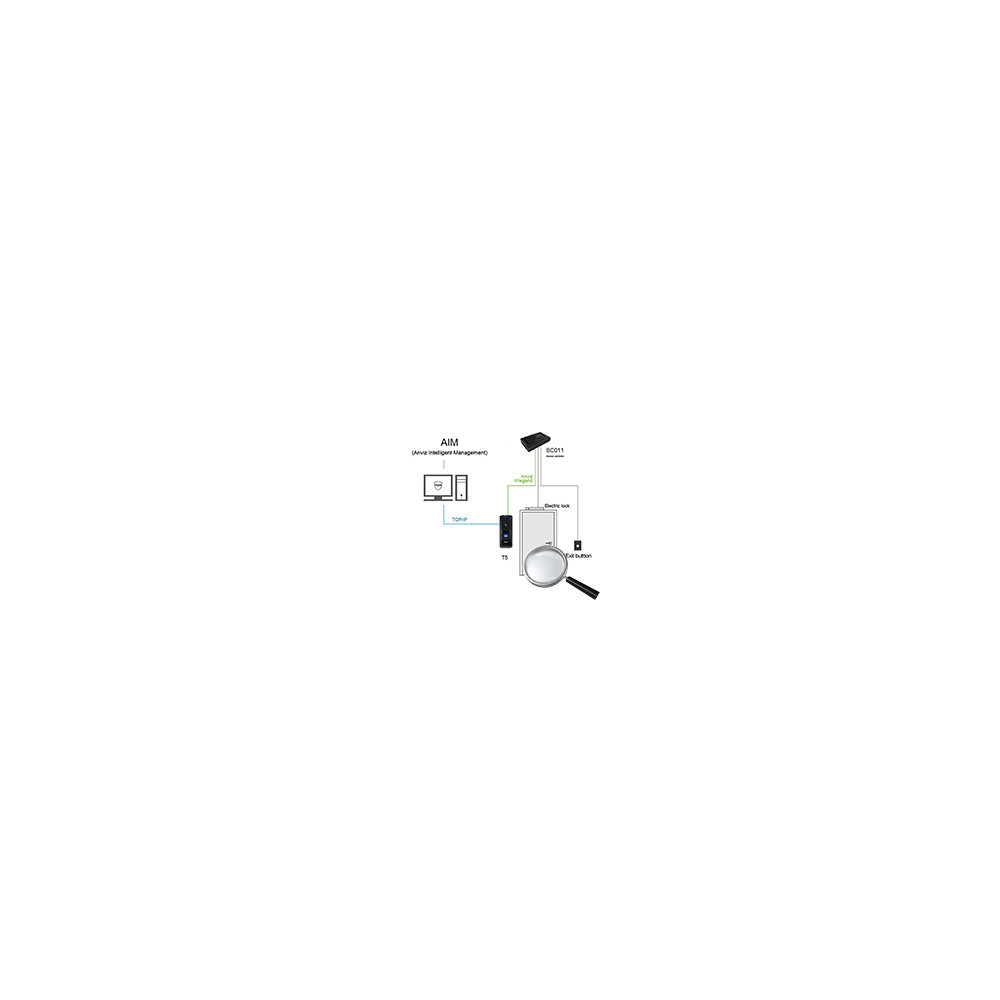

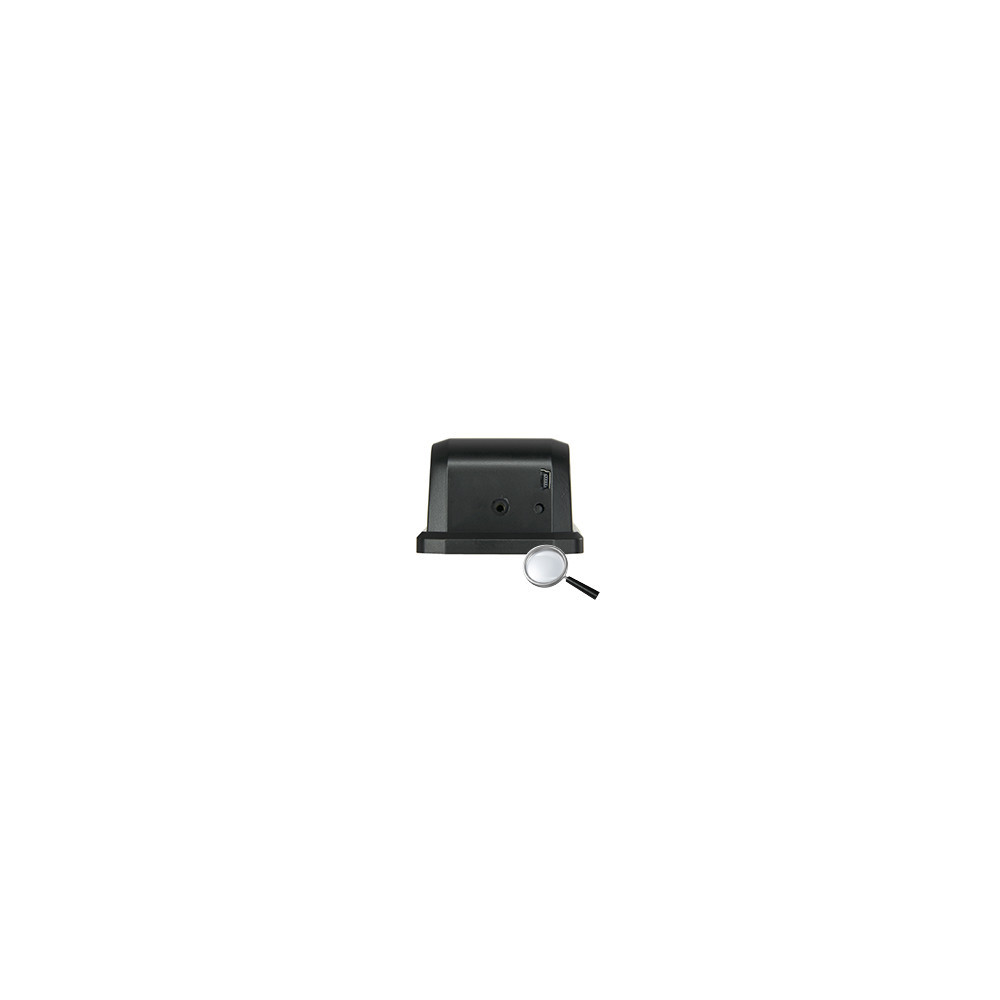

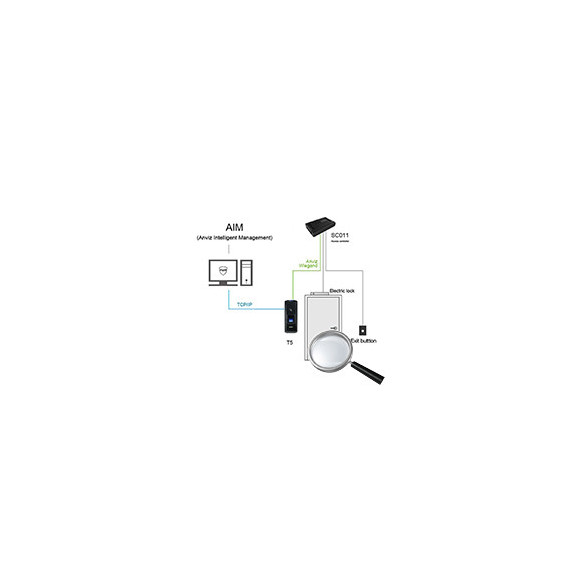

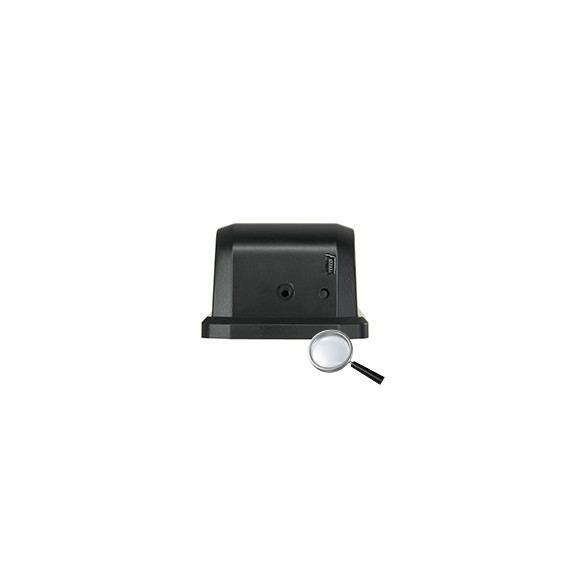

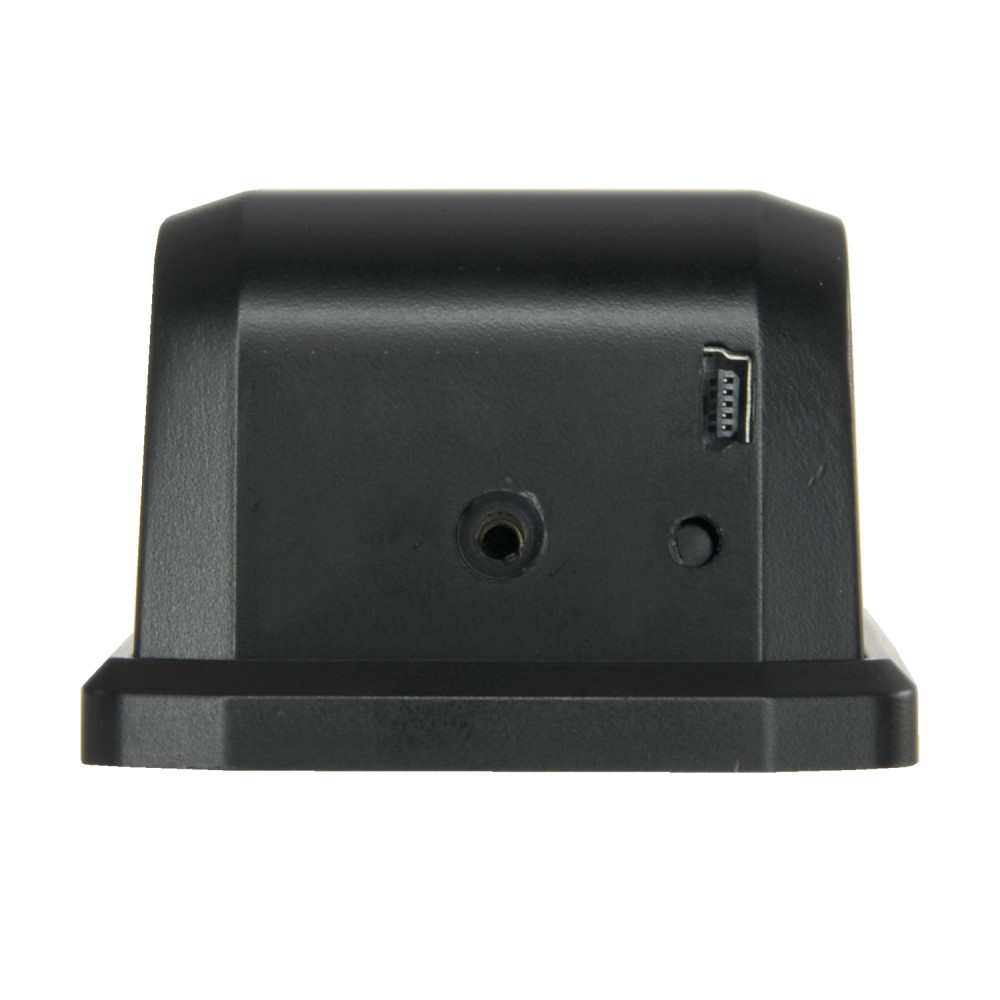

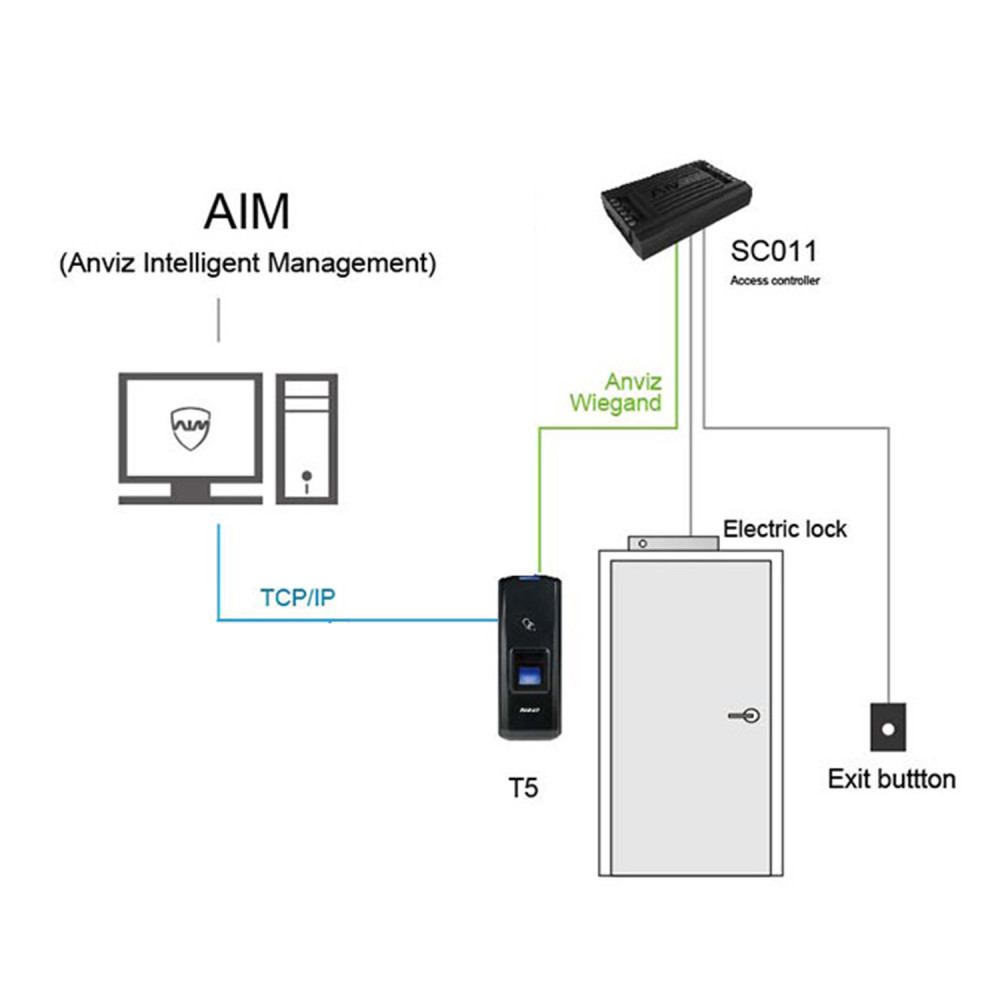

PC communication via TCP/IP, RS485 and miniUSB Plug & Play port. Wiegand 26 encoded output for connection to a controller module.

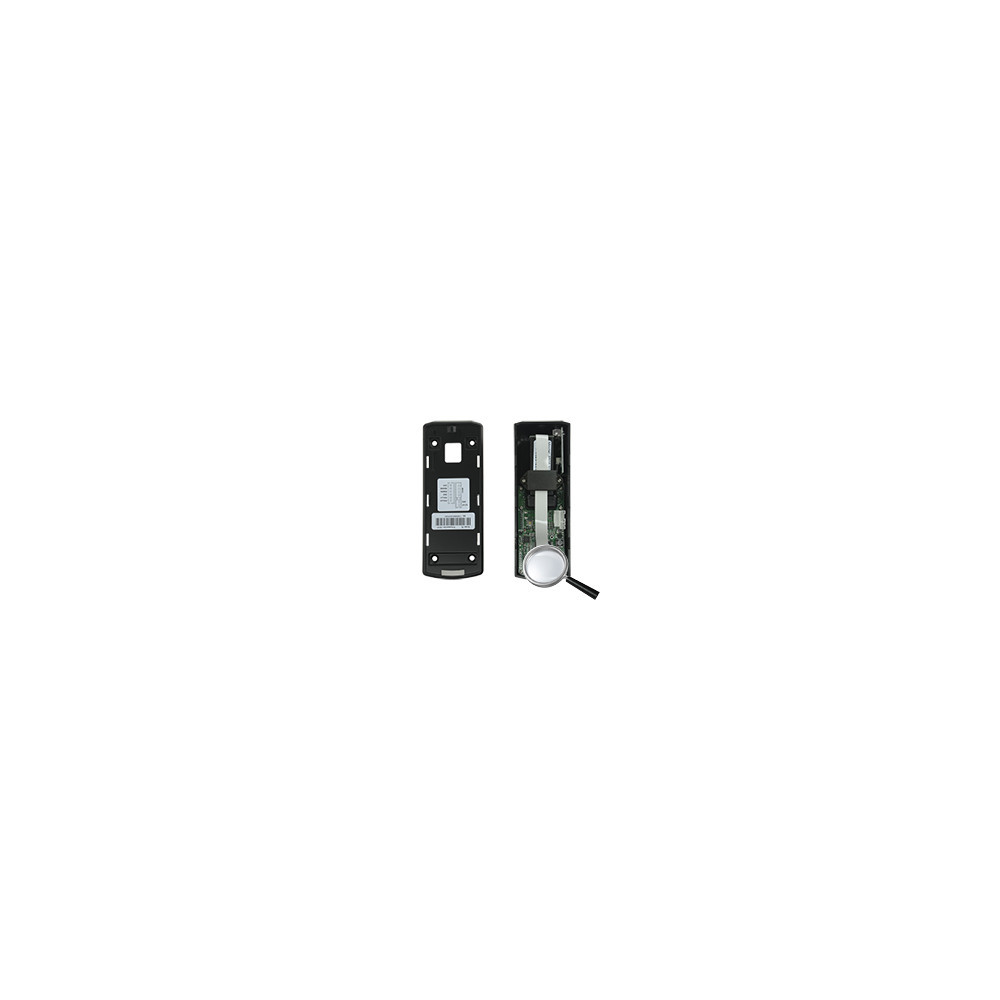

ABS housing, suitable for indoor, protocol IP54. Compact design which allows for door frame installation. Device status LED. Complete users and access management software included free of charge.
| Processor | TI Stellaris® 32-Bit high speed |
| Algorithm | BioNano V10 |
| Optical fingerprint sensor | AFOS300 encapsulated |
| Activation sensor | Infrared auto-activation |
| Scan area | 22 x 18 mm |
| Resolution | 500 DPI |
| Identification time | < 0.5 Sec. |
| Capacity | Up to 1000 fingerprints or cards |
| Records | Up to 50000 |
| Identification modes | Fingerprint, Card & Fingerprint+Card |
| Proximity card | EM RFID |
| PC communication | TCP/IP, RS485, miniUSB |
| Outputs | Wiegand 26 |
| Power | DC 12 V / 200 mA |
| Dimensions | 37 (D) x 55 (W) x 145 (H) mm |
| Weight | 110 g |
