ANVIZ VF30-ID-DEMO

ANVIZ access control & time and attendance demo kit - Fingerprints, EM-RFID & Keypad - 2000 recordings / 50000 records - TCP/IP, RS485, miniUSB, Wiegand 26 - Includes personalised stand and lock - ANVIZ CrossChex included

Les merShow less

kr 11,580.00

Referanse:

VF30-ID-DEMO

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

Anviz

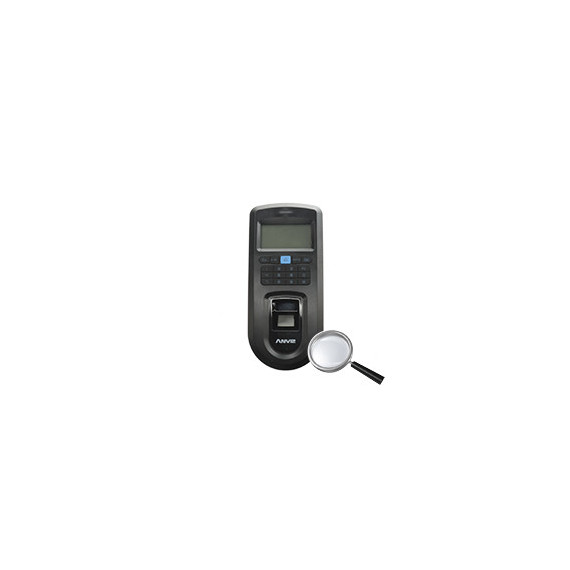

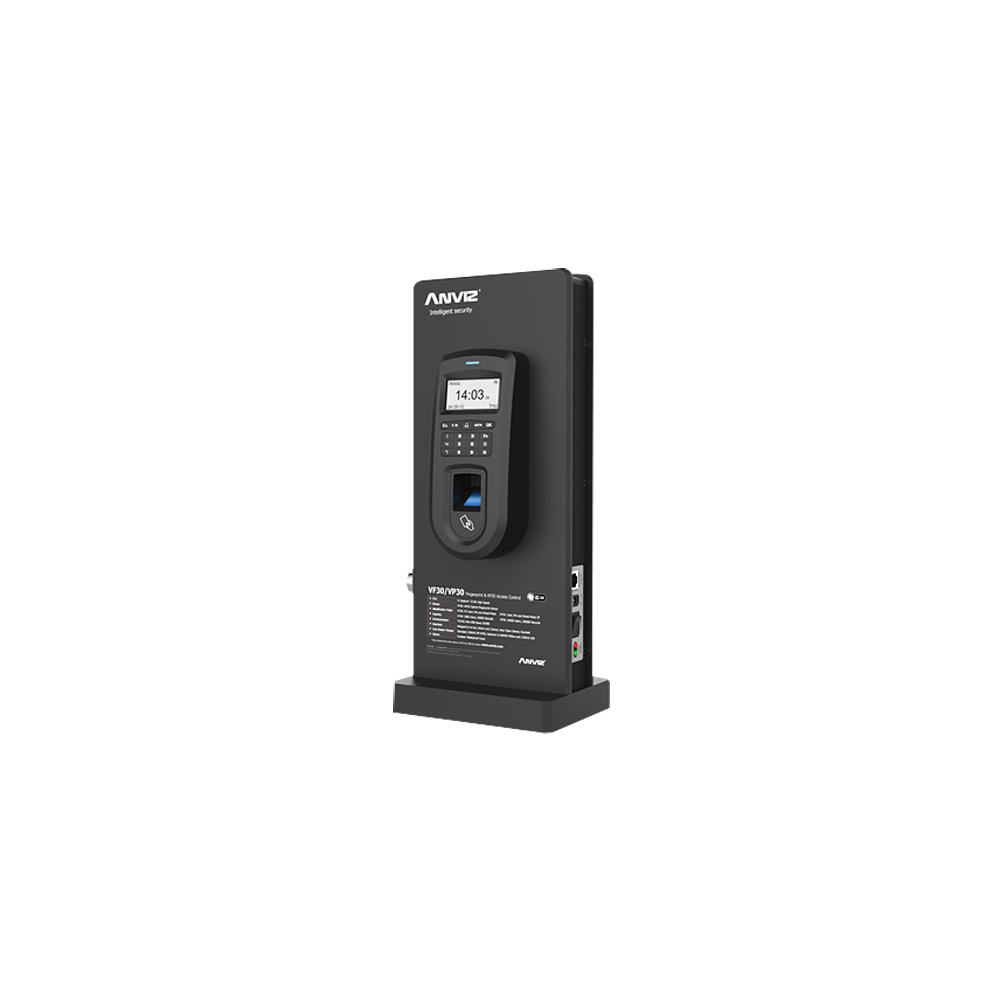

Demo kit comprising of biometric reader, standalone access control and time and attendance
Identification by RF EM card, fingerprint, passcode and/or combinations

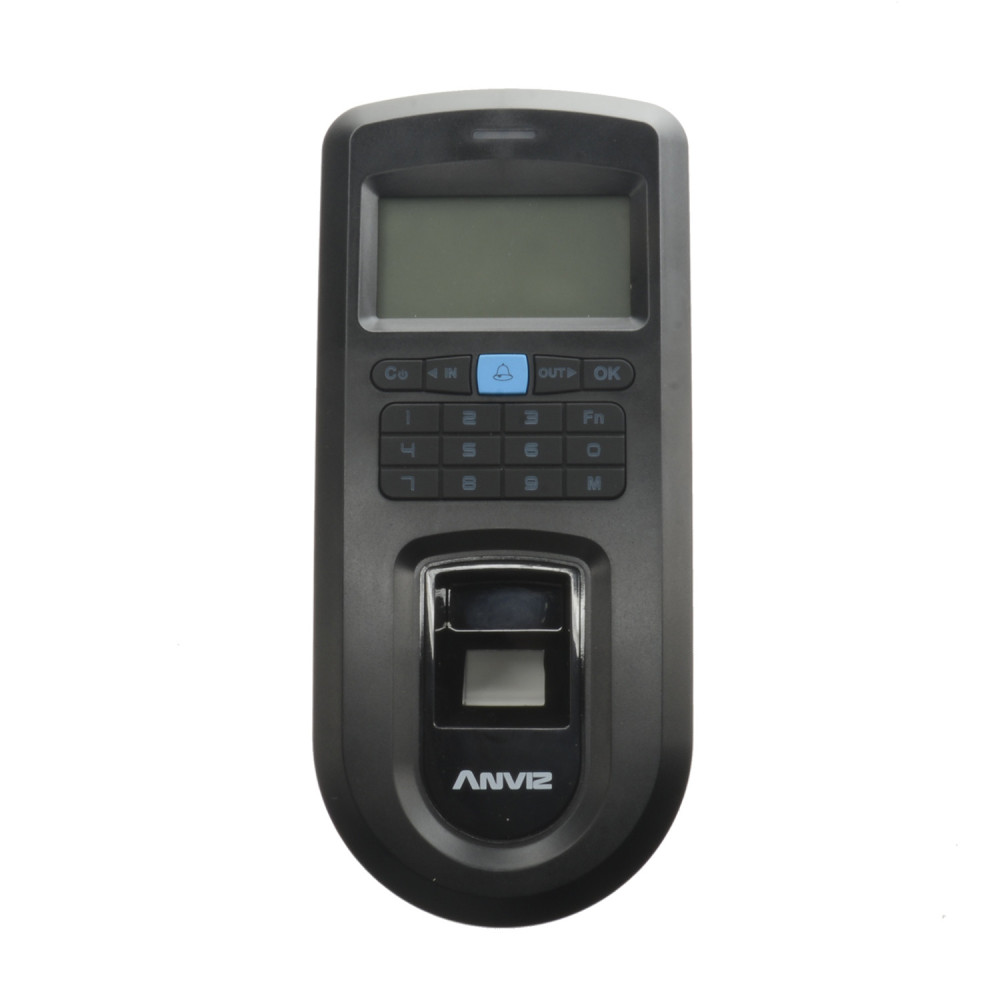

Keypad and LCD graphic display
Capacity 2000 fingerprints/cards, 50000 records
4 Time and attendance modes
Communication TCP/IP, RS485, miniUSB and Wiegand 26

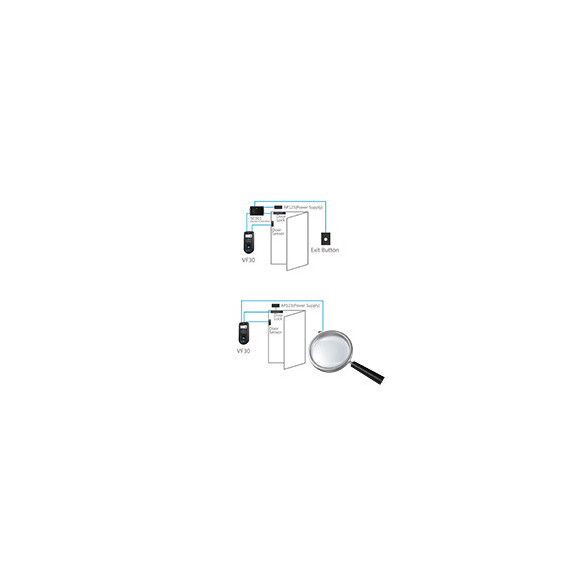

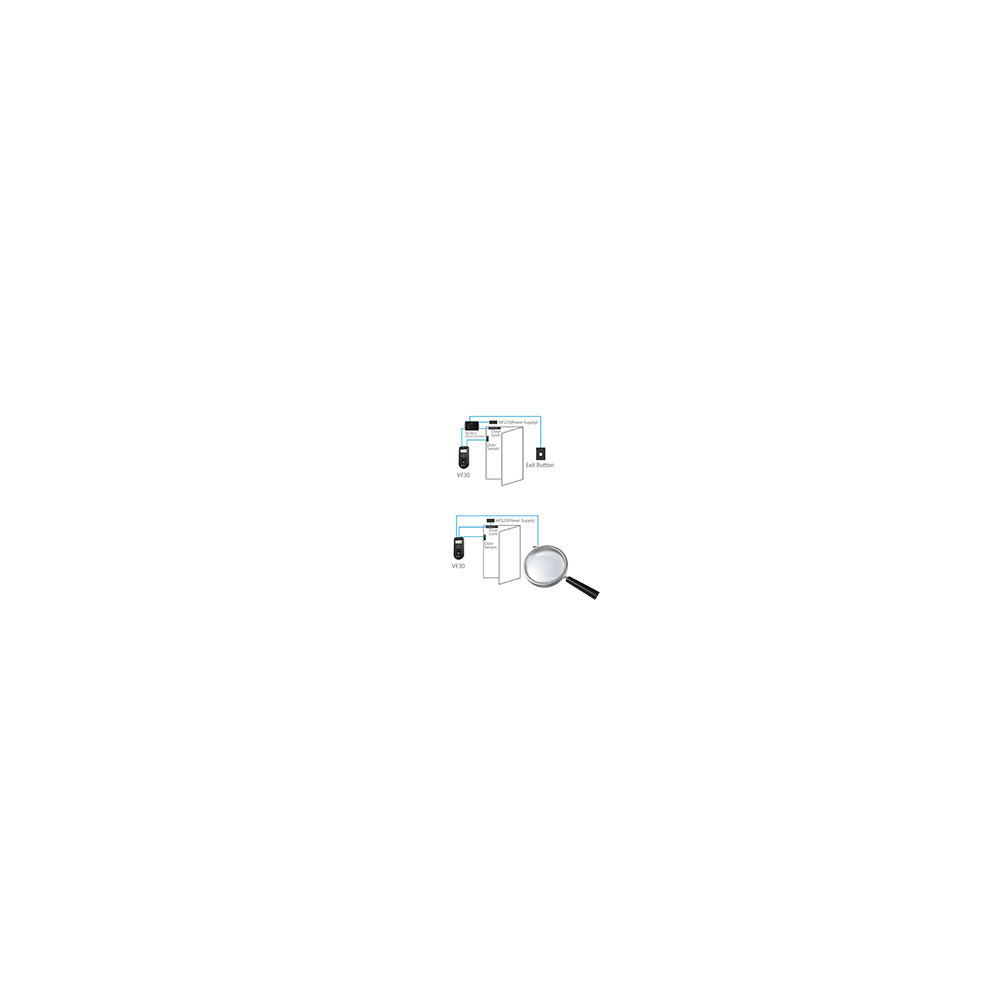

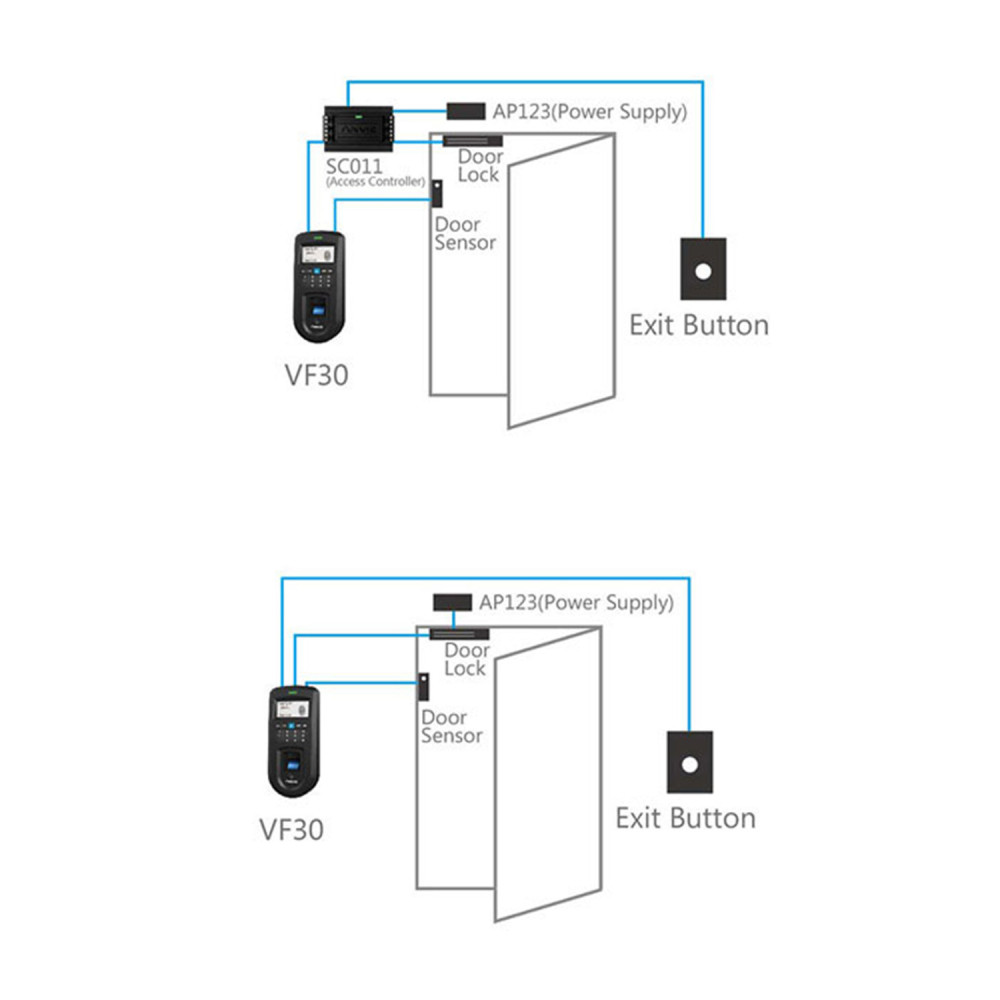

Integrated controller (door sensor, push button, bell and relay)
Control of schedules, shifts and cycles
Anti Pass-Back function
ANVIZ CrossChex complete management software included

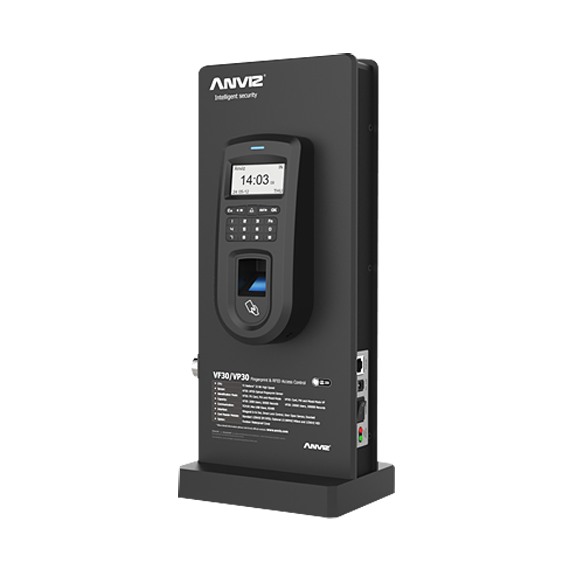

Includes pedestal with product personalisation

Integrated On/Off button, connections, lock and power supply

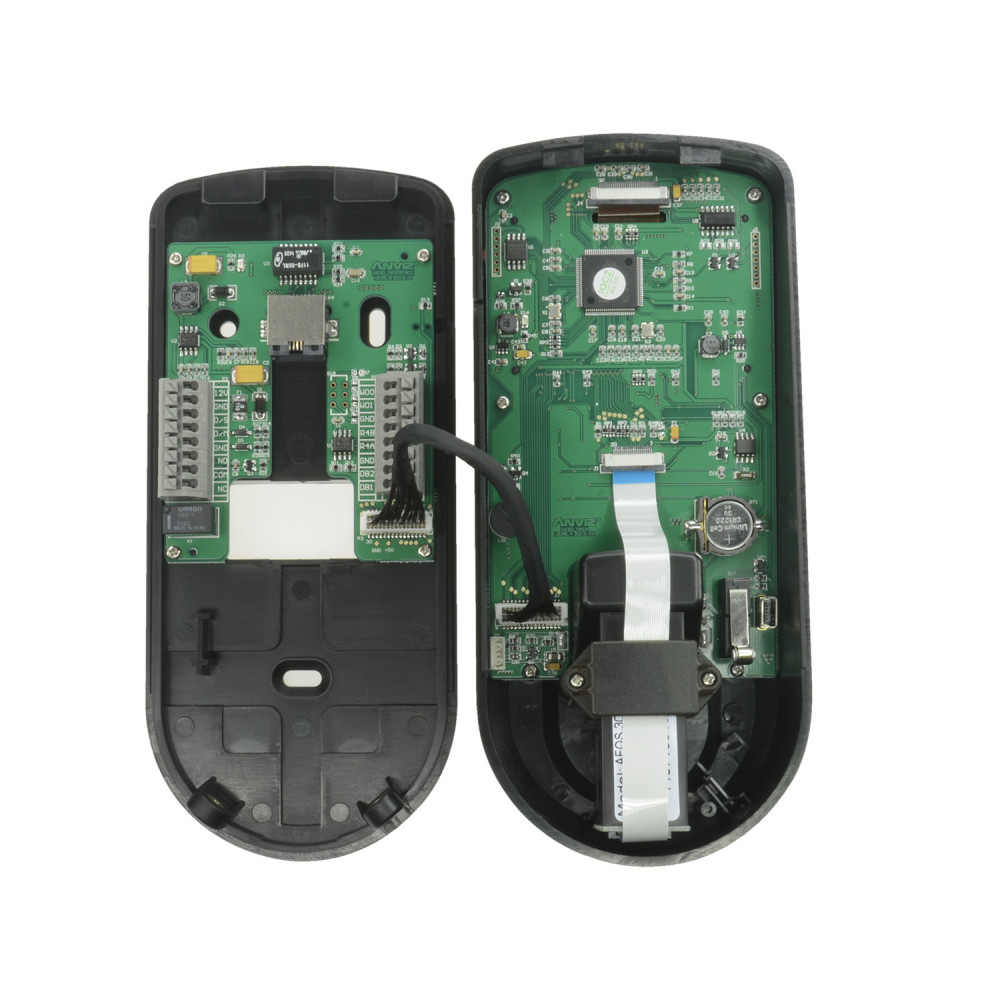

Processor	TI Stellaris® 32-Bit high speed
Algorithm	BioNano V10
Optical fingerprint sensor	AFOS300 encapsulated
Activation sensor	Infrared auto-activation
Scan area	22 x 18 mm
Resolution	500 DPI
Identification time	< 0.5 Sec.
Screen	128x64 LCD
Capacity	Up to 2000 fingerprints or cards
Records	Up to 50000
Identification modes	F, C, U+F, U+P, P+C, F+C
Proximity card	EM RFID
PC communication	TCP/IP, RS485, miniUSB
Inputs	Door sensor, opening button
Outputs	Wiegand 26, Output relay NO/NC
Power	DC 12 V / 1000 mA
Dimensions	40 (D) x 80 (W) x 180 (H) mm
Weight	240 g
