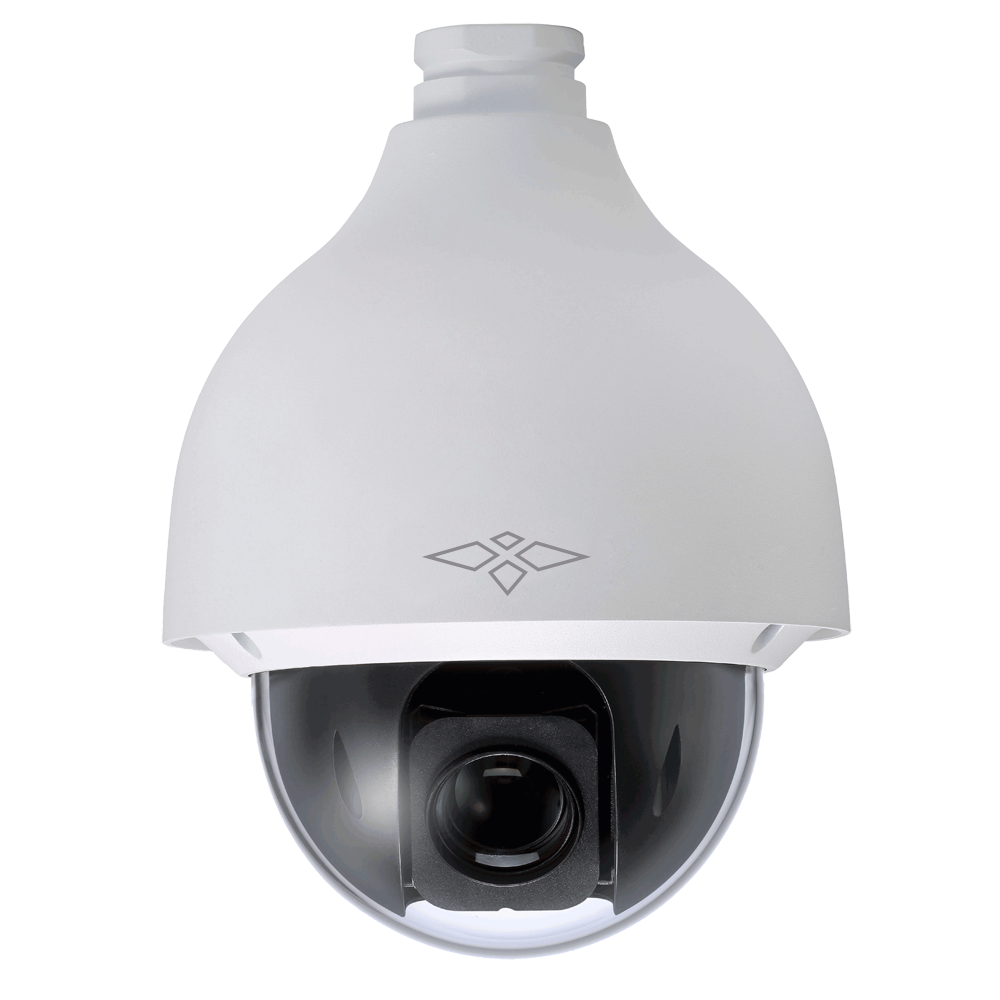

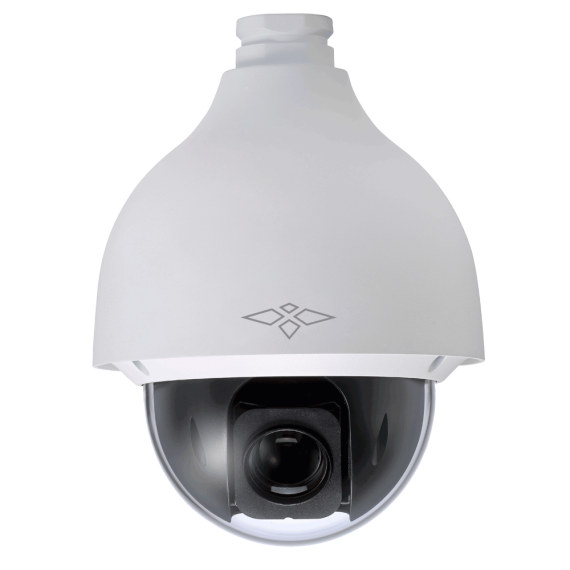

| Brand | X-Security |
| Image sensor | 1/2.8" STARVIS™ CMOS |
| Resolution | 4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480): CIF (352 × 288/352 × 240) |
| Compression | H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream); H.265+; H.264+ |
| Main Stream rate | 4M/3M/1080P/1.3M/720P (1–25/30 fps) |
| Extra Stream rate | Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 720P (1–25/30 fps) |
| Bitrate | H.264: 3 Kbps–20480 Kbps H.265: 3 Kbps–20480 Kbps |
| Lens | 4.9–156mm Vari-focal (32X) Optical zoom, Auto Iris, Auto Focus |
| Digital zoom | 16 X |
| Image improvements | WDR (120dB), 2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask |
| Minimum illumination | 0.005 Lux (colour) / 0.0005 Lux (B/N) |
| Day / Night | Removable mechanical ICR filter |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB interface, CMS software, mobile application and NVR |
| Memory | Slot for Micro SD card (Max 256 GB) |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: 0°~90° auto flip 180° |
| Manual speed | Horizontal: 0.1°~350° /s, Vertical: 0.1°~250° /s |
| Speed between Presets | Horizontal: 500° /s, Vertical: 500° /s |
| Preset positions | 300, 5 auto pattern, 8 auto tour, 5 auto scan |
| Auto Tracking | Simple, multiple and panoramic scene |
| IVS functions | Abandoned Objects, Lost and Found, Lost and Found Detection. |
| Communication | ONVIF Profile S&G&T; CGI |
| Alarms | 2 inputs / 1 relay NO/NC |
| Audio | 1 input (Line In) / 1 output (Line Out) |
| Power | 24VAC / 1,5A, PoE+(802.3at) |
| Degree of protection | Weatherproof IP67, Anti-vandal IK10 |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | Φ186 mm x 253 mm (Φ7.32" x 9.96") |
