SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH
SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH

SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 200W 1280WH

SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 100W 512WH
SAFIRE 2X FRITTSTÅENDE SOLCELLEPANEL KIT 200W 2560WH

Stand-alone power supply system for CCTV - Solar panel of 200W - Lithium LiFePo Battery 1280Wh (100Ah) - Integrated MPPT regulator - Support for mast anchorage - RS-485 for communication

Les merShow less
kr 13,990.00
Referanse:
SF-SOLARKIT-BATT-1280WH
Merke:
SAFIRE

Last ned produktark

Relaterte produkter
Beskrivelse
  • Stand-alone power supply system for CCTV
  • Solar panel up to 200W
  • 1280wh LiFePo battery with 2000 charge and discharge cycles
  • Integrated MPPT regulator
  • Maximum supported load 80W
  • Communication RS485 for third-party integration
  • Mast support included
  • Degree of protection IP67

    Technical system information
    Solar panel module 200W
    Battery Lithium LiFePo 1280wh
    Solar input voltage 18V
    Load voltage 10~14.6V
    Maximum input power Up to 450W in total
    Maximum current load 8A
    Maximum load supported 80W
    Regulator Integrated MPPT
    Communication RS485 (For integration with third parties). Provides all system information such as load level, system status or power consumption
    Output Voltage 12V Integrated DC Regulator (with standard jack connector compatible with CCTV cameras)

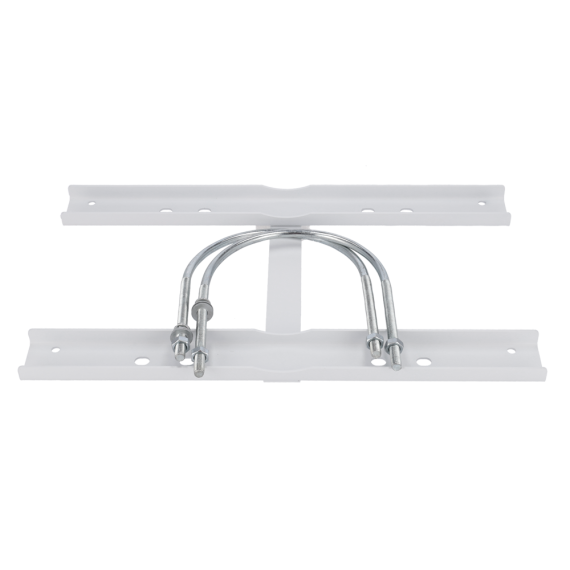

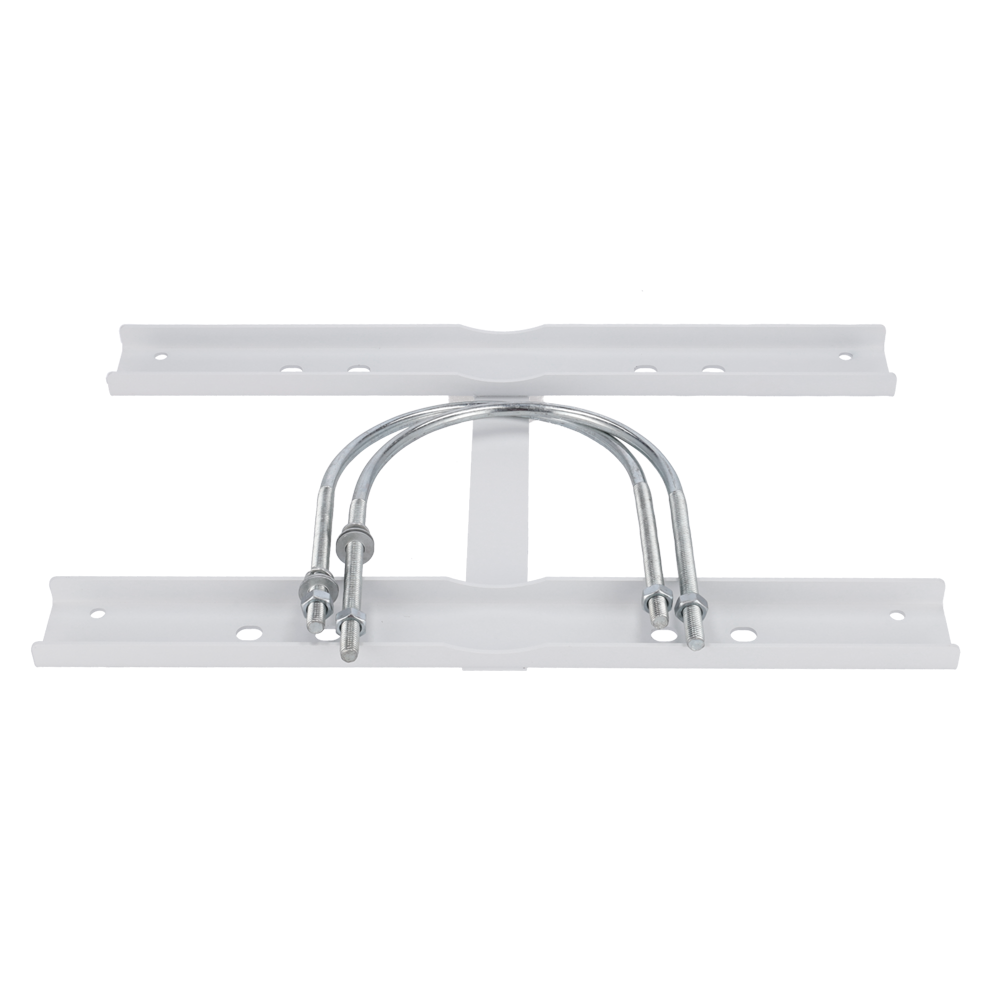

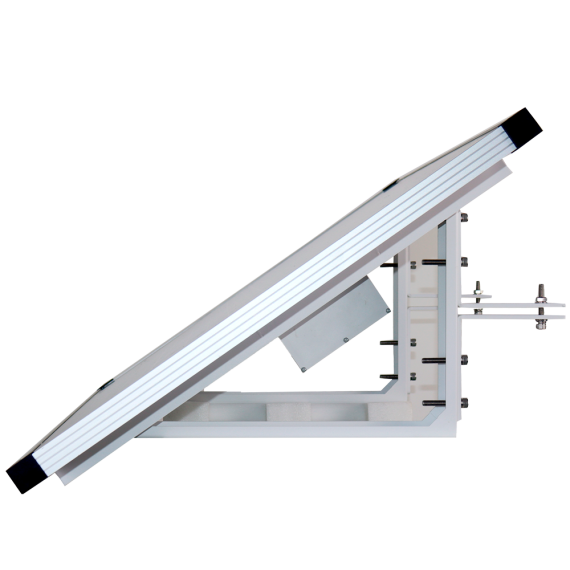

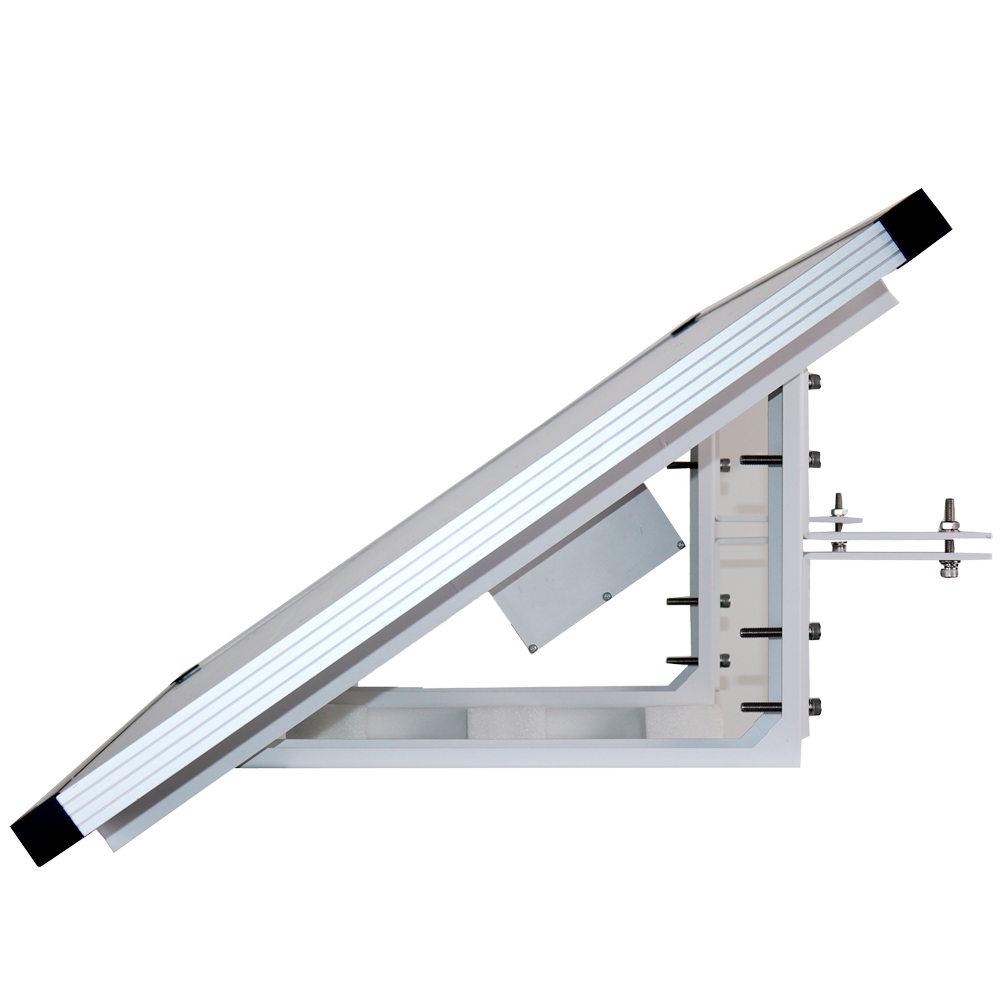

    Bracket Support for mast or vertical infrastructure mounting
    Mast diameter 100 - 200 mm
    Dimensions 345x120x140 mm
    Weight 40 Kg (with battery)

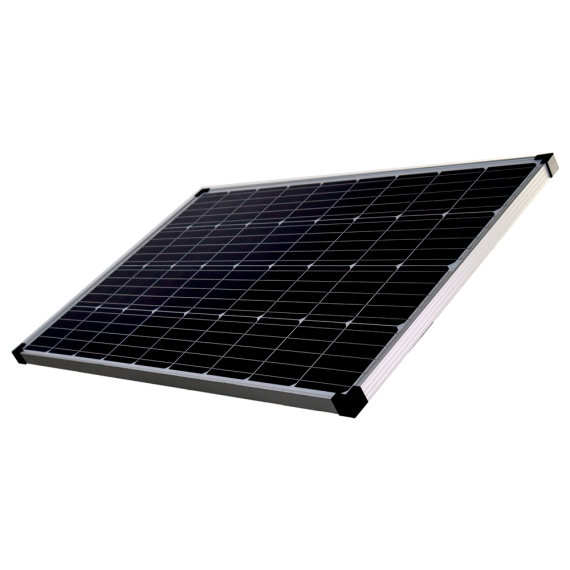

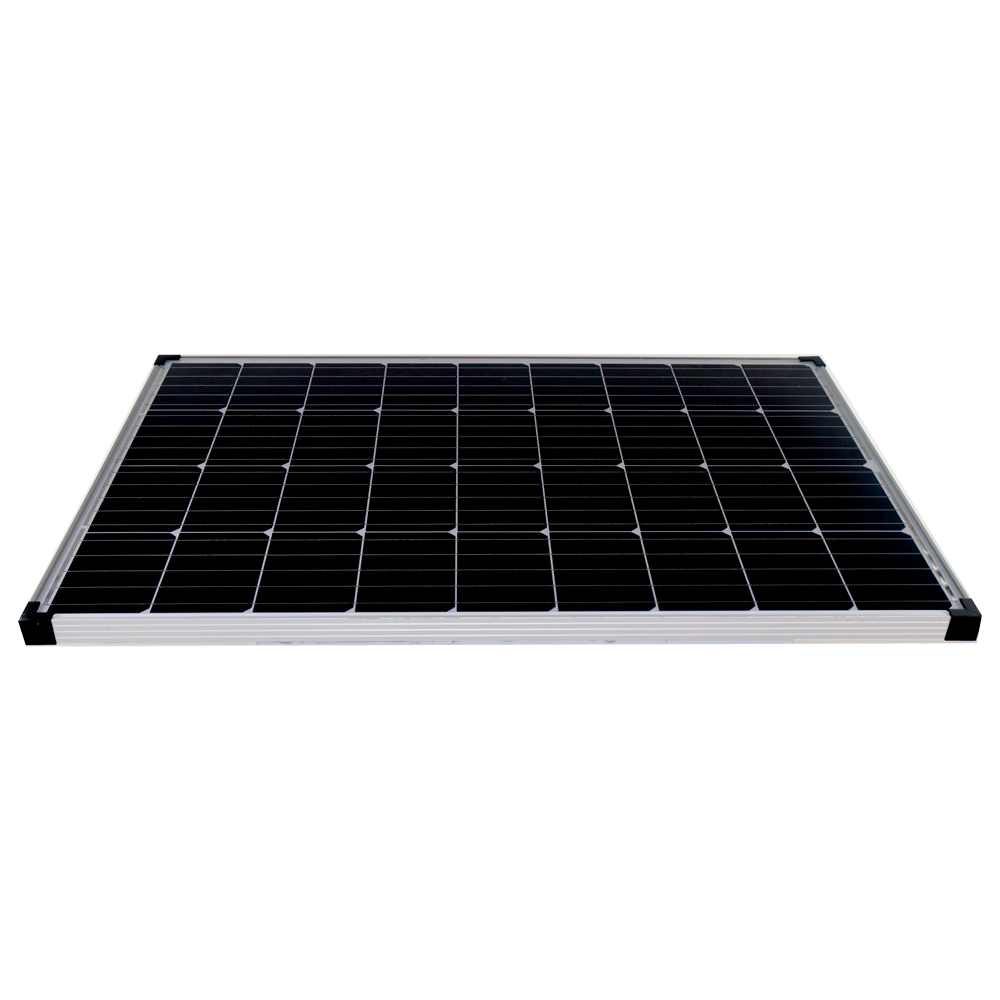

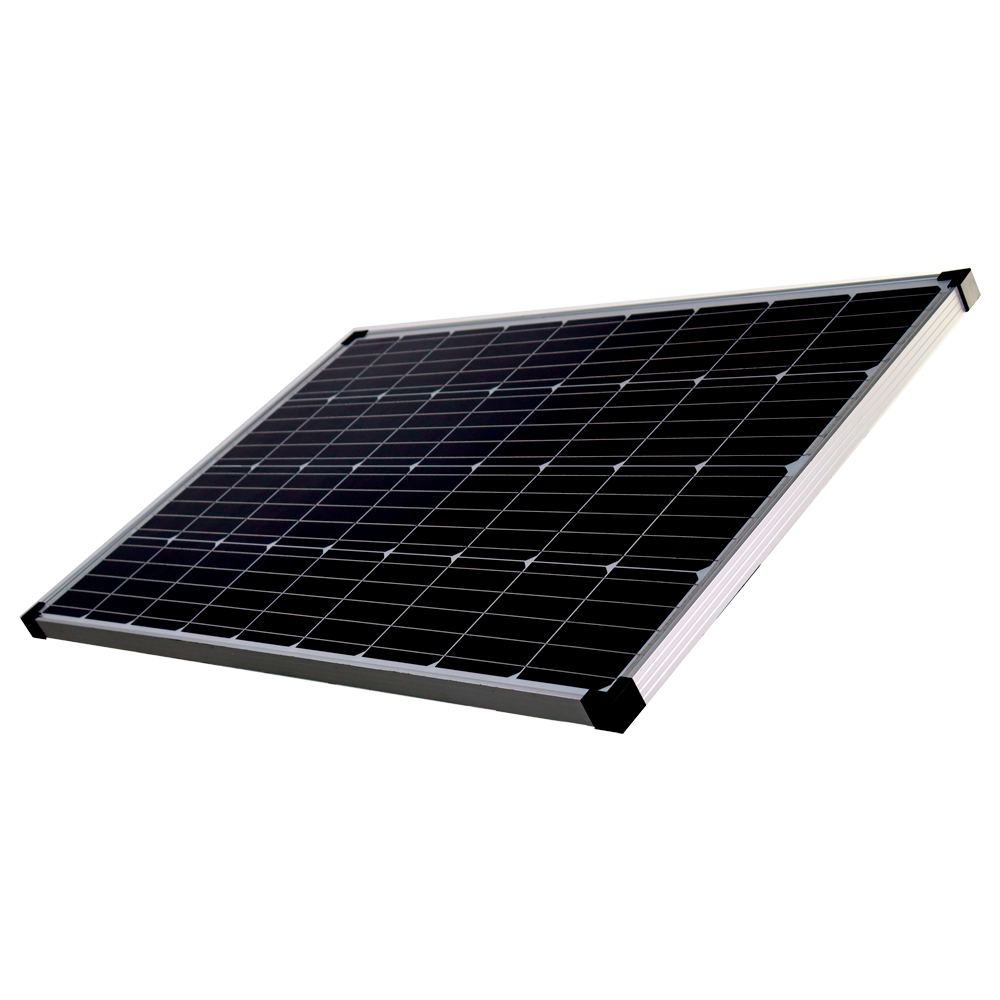

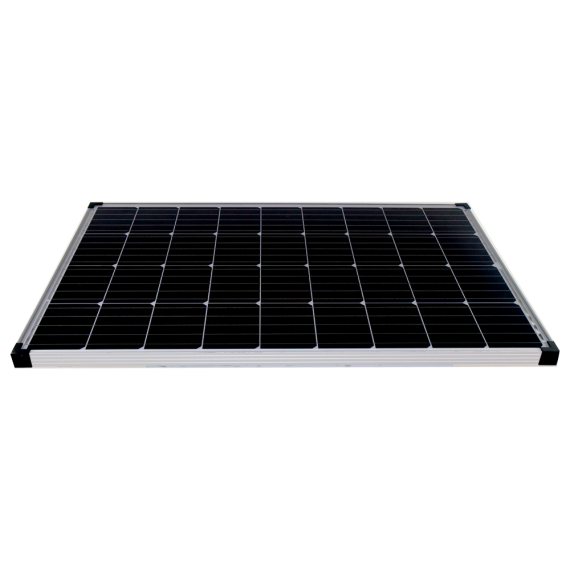

    Solar Panel
    Power 200 W
    Cells 166 monocrystalline
    Optimum Voltage 18V
    Optimum operating current 11.1A
    Short-circuit voltage 3.66V
    Open circuit voltage 21.24V
    Glass thickness 3.2mm
    Power tolerance (W) ±3%
    Maximum load capacity 60 m/s (5Kg/sg.m)
    Maximum hail load 23m/s, 7.53g
    Efficiency 21.6%
    Temperature Range -20ºC ~ 85ºC
    Module dimensions 1560 (W) x 30 (H) x 670 (D) mm
    Degree of protection IP67

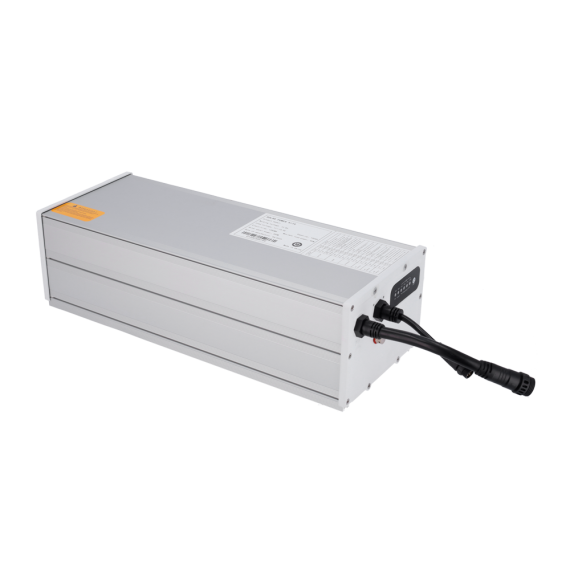

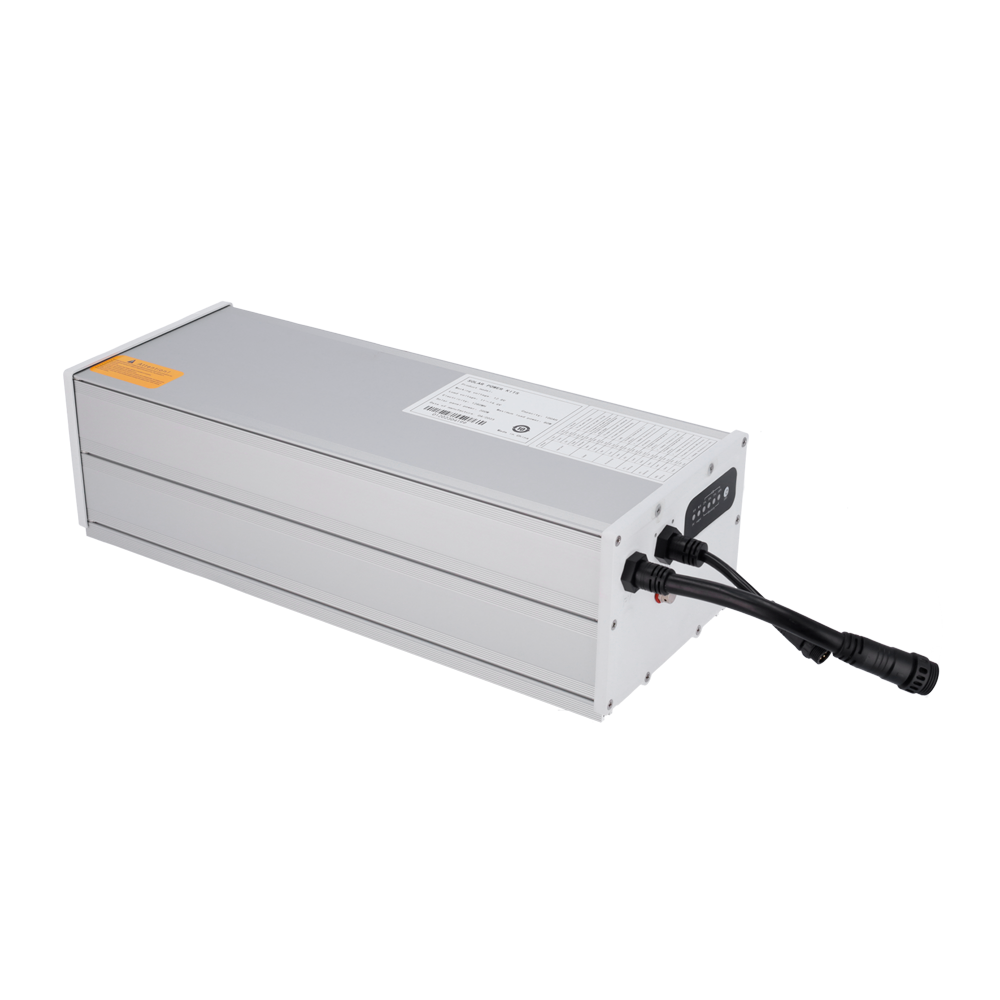

    Battery
    Material LiFePo
    Capacity 100Ah (1280Wh)
    Nominal voltage 12.8V
    Operating temperature Charge: 0 °C to 65 °C (32 °F to 140 °F)
    Discharge: -30 °C to 65 °C (-22 °F to 140 °F)
    Cycles >2000
    Degree of protection IP67
Les merShow less
Produktdetaljer
SF-SOLARKIT-BATT-1280WH

Dataark

Type:
Solcellepanel
Utgangsspenning (volt):
18v
Utgangsstrøm (ampere):
10A
