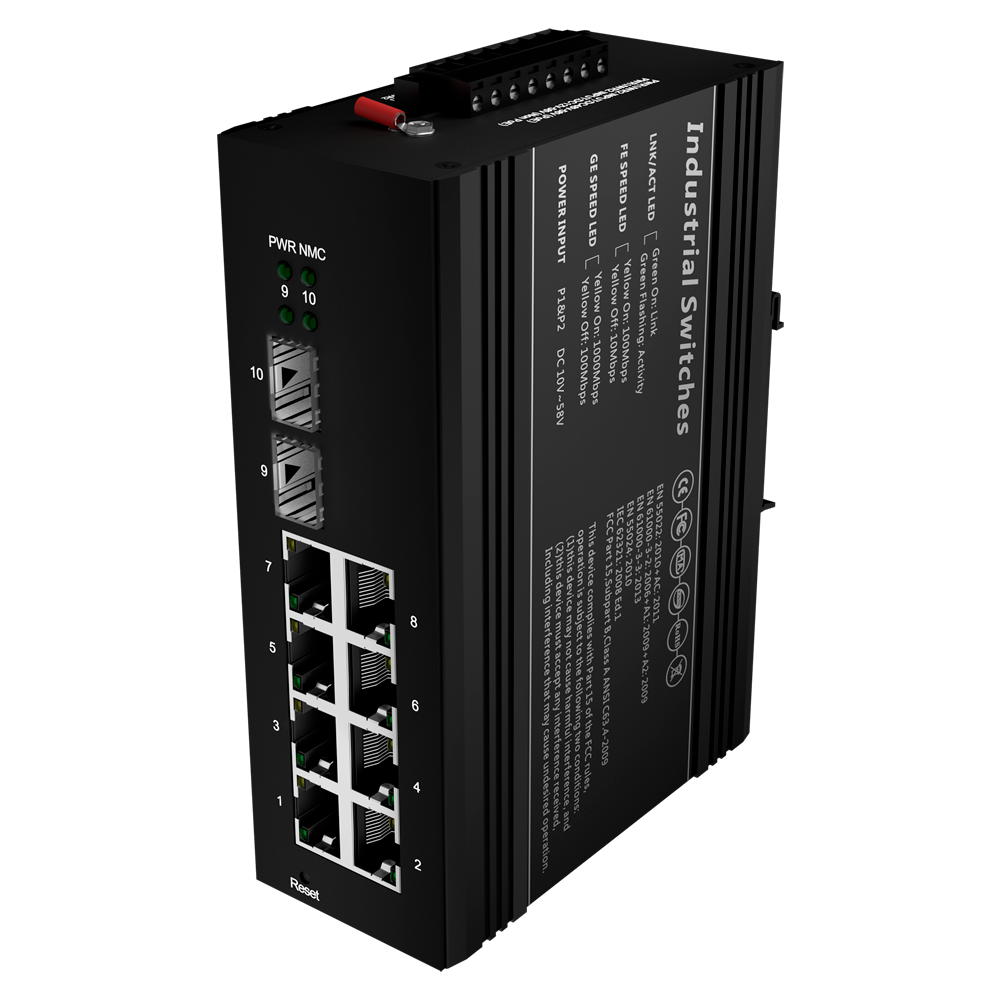

MARCA BLANCA SW1008HIPOE-MGF-240-DIN

White Brand PoE Switch - DIN rail mount - 8 Gigabit Ports + 2 Gigabit SFP - 90W ports 1 and 2 / 30W port 3-8 / Maximum 240W - IEEE802.3af/at/bt | PoE/PoE+/Hi-PoE - VLAN/STP/RSTP/MSTP/ERPS/SNMP/ACL - Static LAG/IGMP Snooping/DHCP Snoop/802.1x

Les merShow less

kr 7,092.75

Referanse:

SW1008HIPOE-MGF-240-DIN

Merke:

Last ned produktark

Relaterte produkter

Beskrivelse
Produktdetaljer

Beskrivelse

White Label
Manageable Desktop Switch
6 Ports RJ45 Gigabit PoE+ 802.3.af/at + 2 Gigabit Hi-PoE Ports
2 Gigabit SFP Ports
Supports PoE power up to 240 W total for all ports
Up to 90W on port 1 and 2 and up to 30W on ports 3-8
Compatible with PoE IEEE802.3af/at and Hi-PoE

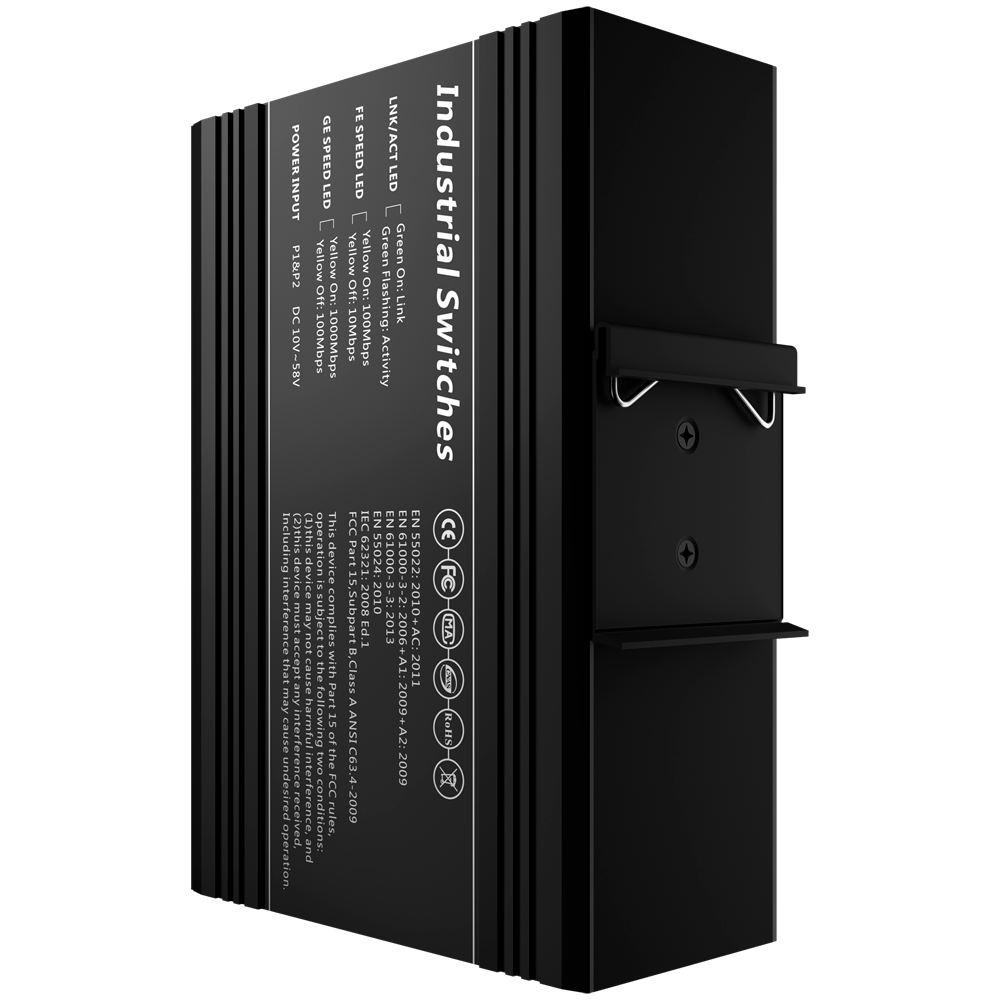

DIN rail mount

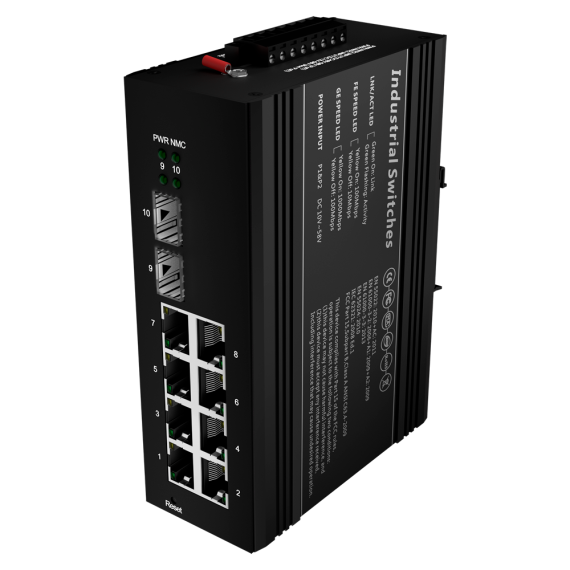

Interface	8 Ports RJ45 Gigabit + 2 SFP Gigabit Ports
PoE characteristics	Up to 90W ports 1 and 2 IEEE802.3bt Hi-PoE Up to 30W ports 3-8 IEEE802.3af/at PoE/PoE+ Maximum 240W
Supported Topologies	Ring / Star / Bus / Tree
Physical Layer Protocols	MDX/MDIX/Flow Control
Network Protocols	VLAN/STP/RSTP/SNMP/IGMP Snooping/802.1x/Port Isolation/QinQ
Management Protocols	SNMP/CLI/Console/WebUI/SSH/Telnet/Rmon
Quality of service	Highlighting and priority mapping Supports SP and WRR algorithms Rate limit QoS-based policies
Link Aggregation	Up to 12 groups
Jumbo Frame	10Kbyes
ACL	Supports 500 ACL of standard and extended type
Switching Capacity	36Gbps
MAC Table	16K
Packet Forwarding Rate	26,78Mbps
Buffer	12M

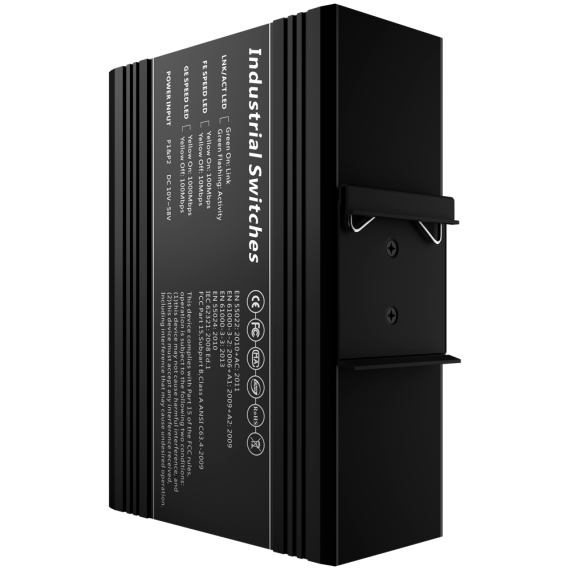

Installation	DIN rail

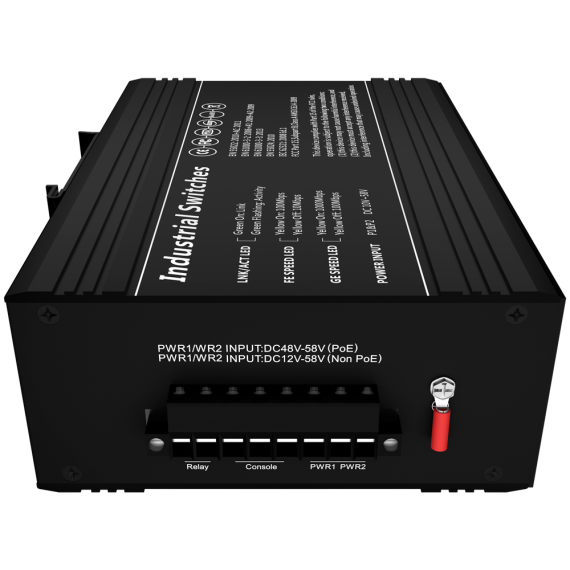

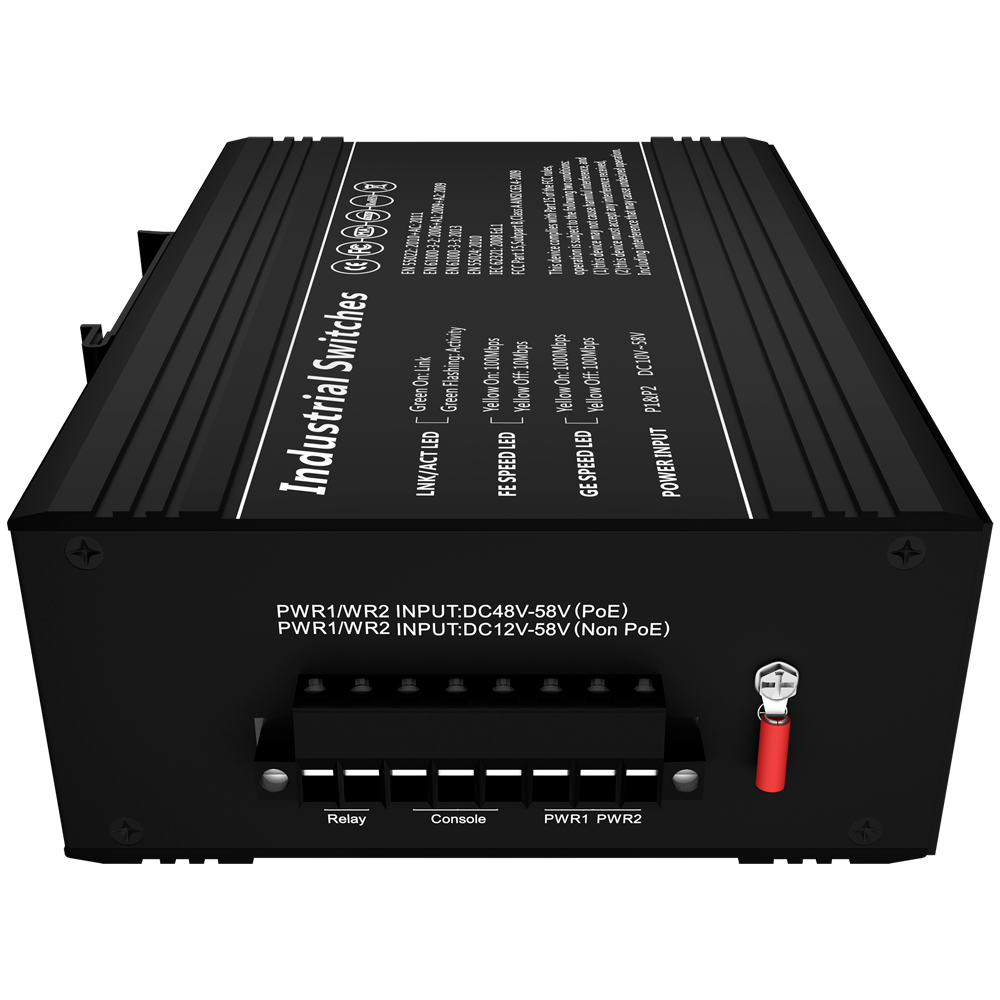

Power	DC 48 V ~ 58 V - The equipment does not include power supply. The following references are recommended: - DC48V5A-DIN - DC48V2A-DIN
Dimensions	48 (D) x 104 (H) x 143 (W) mm
Weight	580 g
Operating temperature	-40º C ~ 75º C
