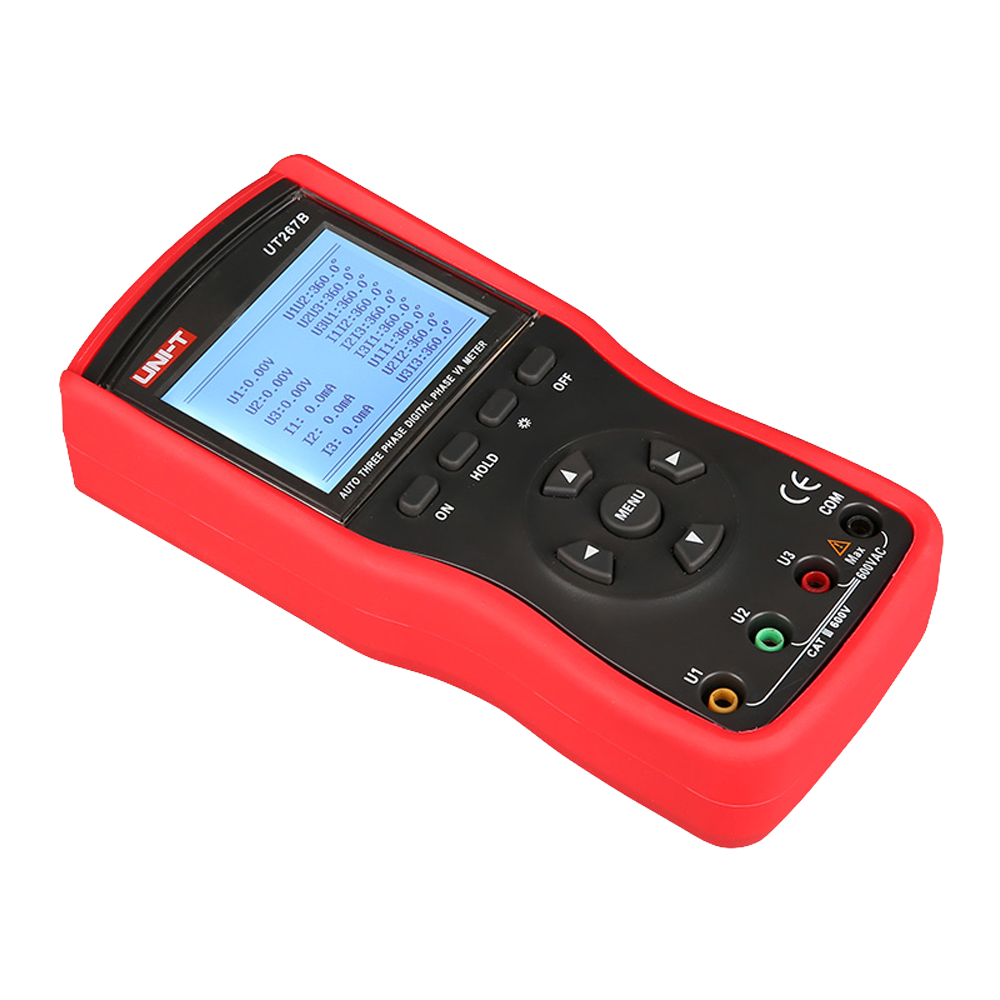

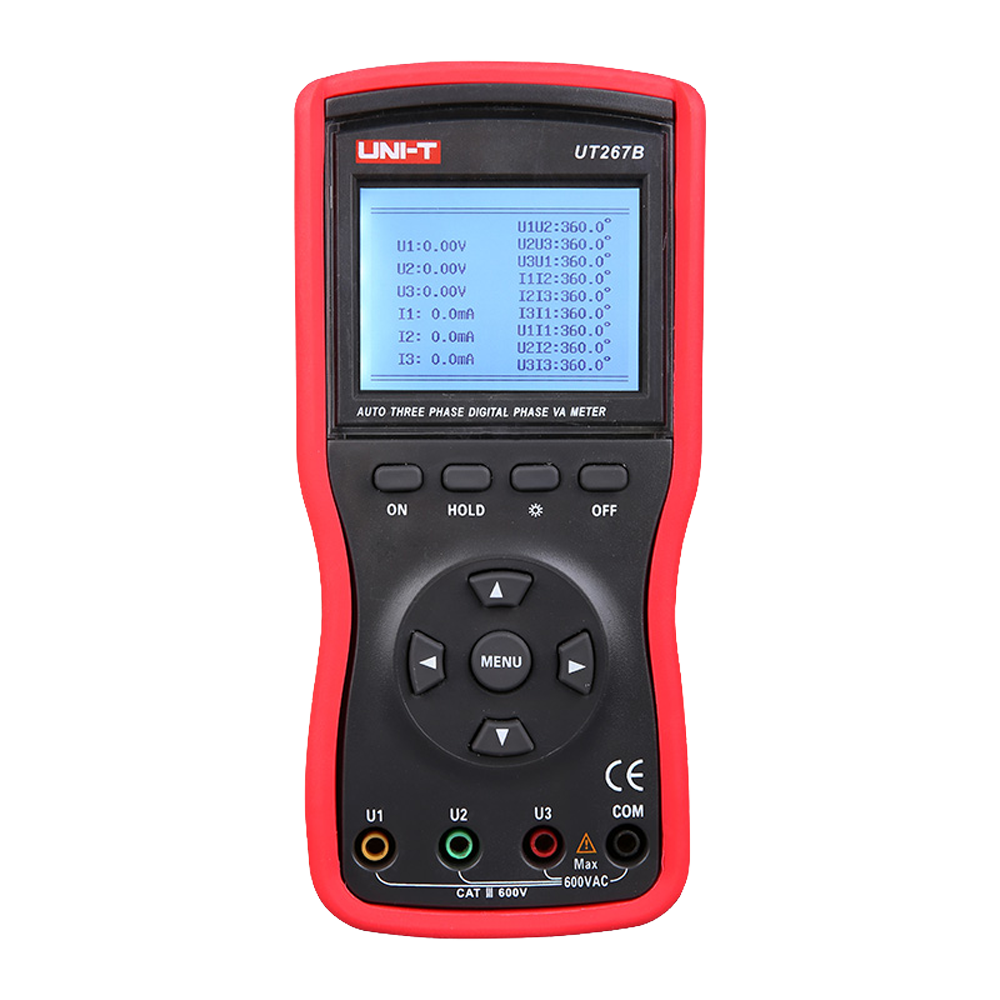

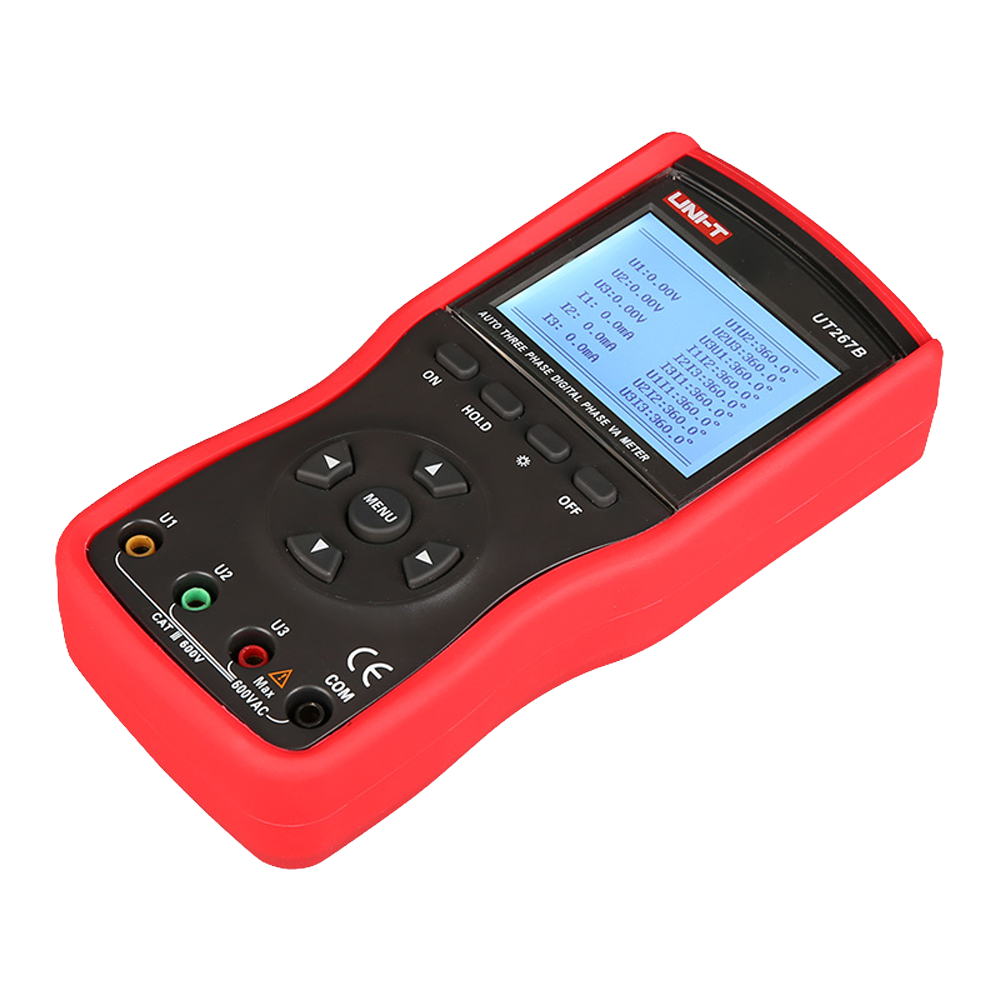

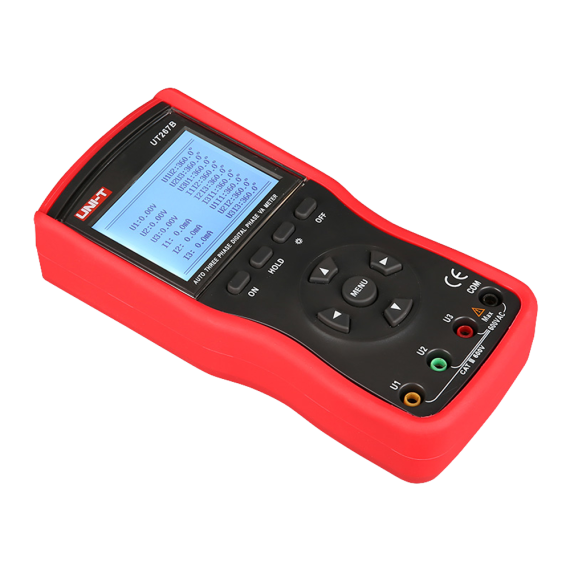

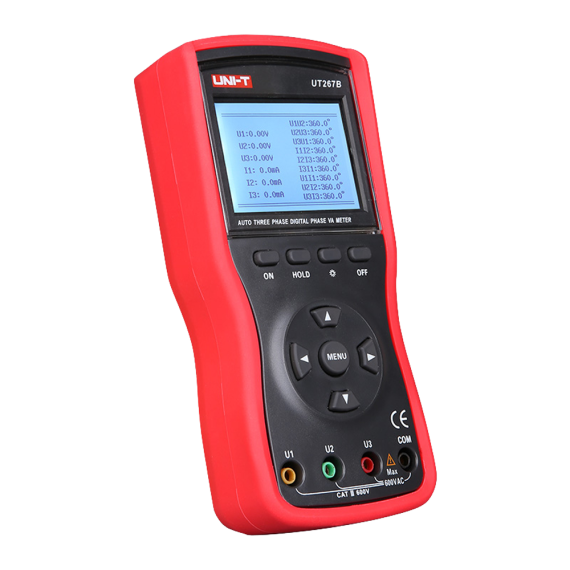

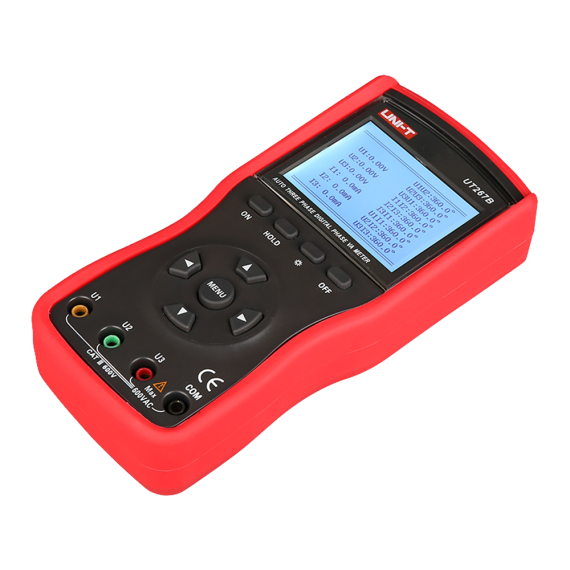

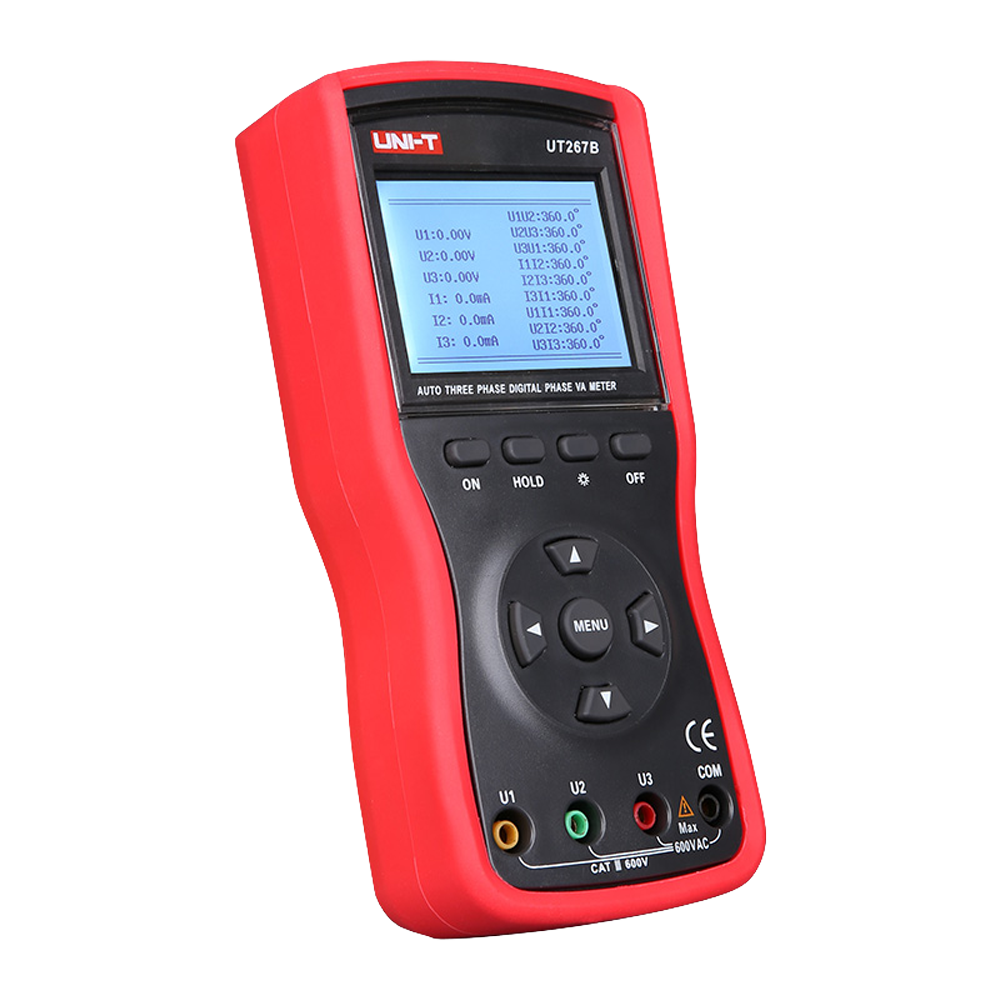

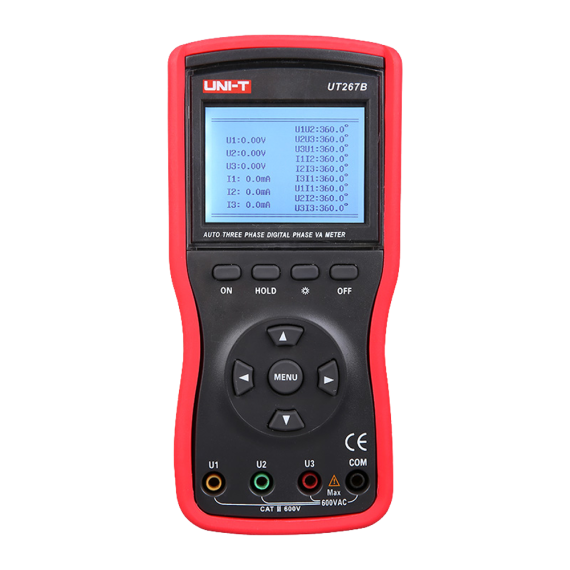

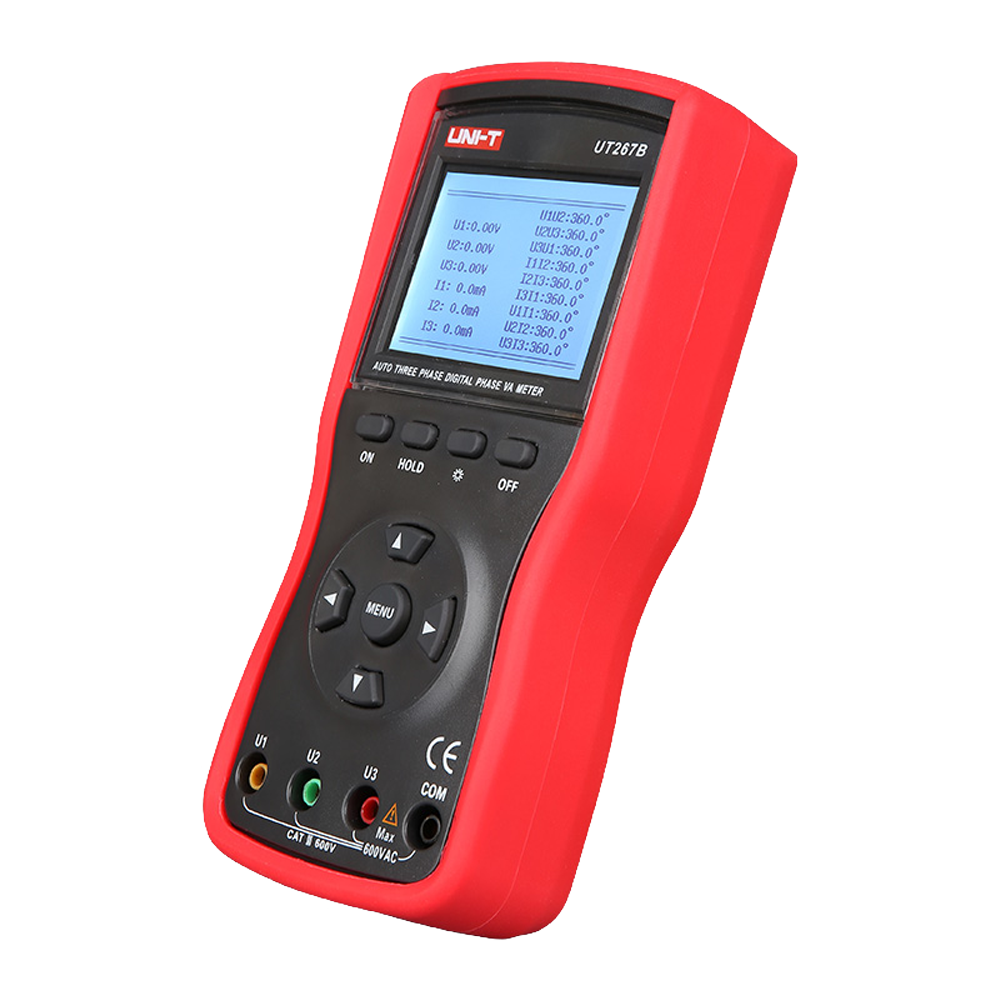

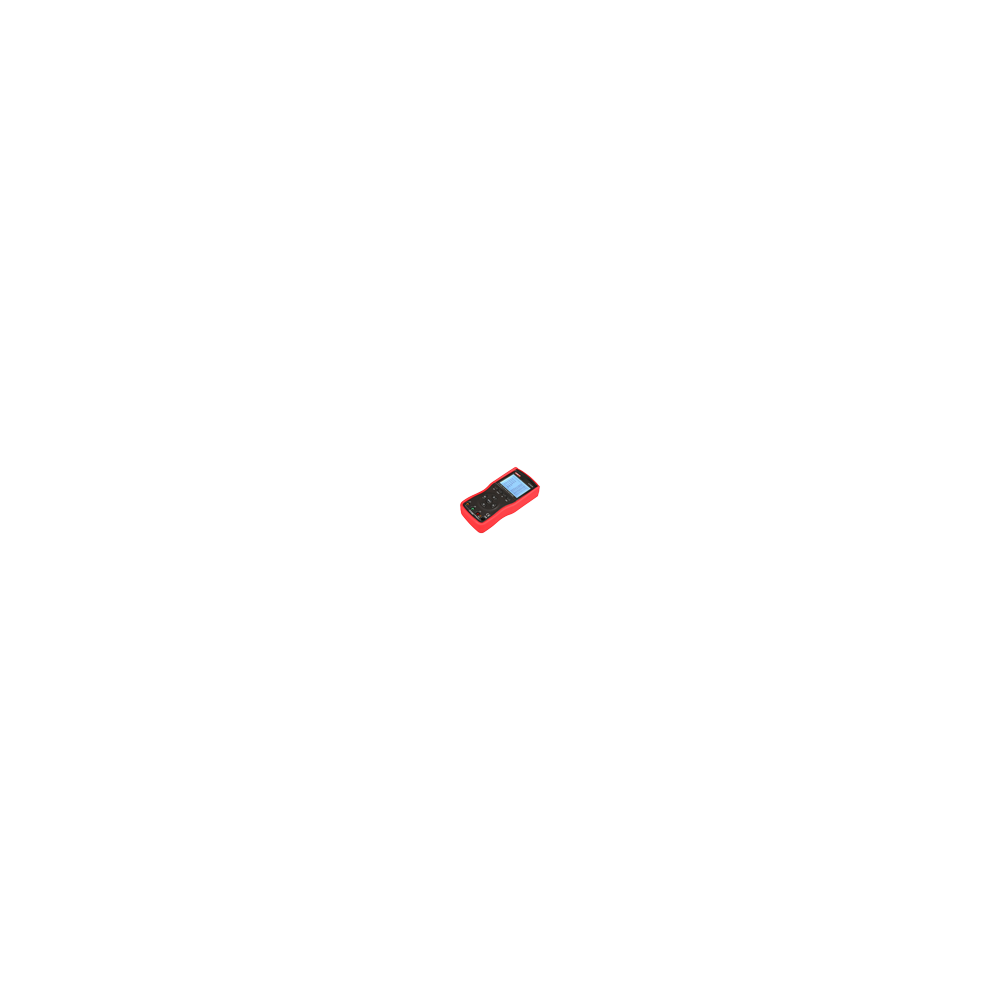

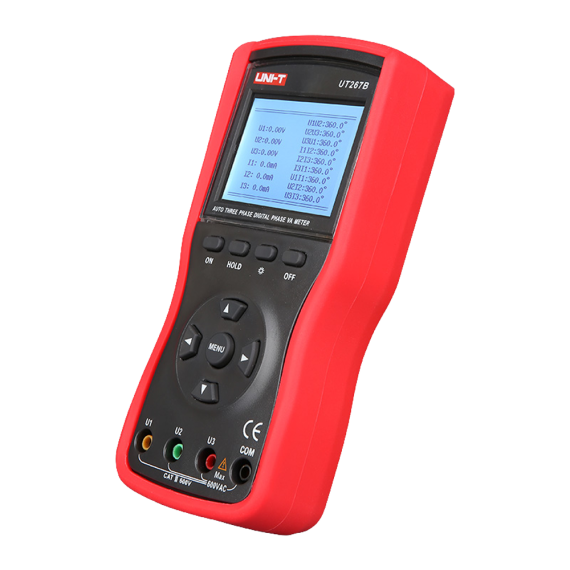

UNI-TREND UT267B

Three-phase current clamp meter - LED backlit display - Measurement in AC up to 600V and 20A - Active, reactive and apparent power measurement - Power factor and phase angle measurement - Memory for data storage

Les merShow less

kr 16,935.75

Referanse:

UT267B

Merke:

UNI-TREND

Beskrivelse
Produktdetaljer

Beskrivelse

UNI-T
Three-phase clamp meter CAT II 600V/ CAT III 300V
LED backlit display
AC current measurement up to 20 A
Measurement of AC voltage up to 600 V
Frequency measurement 45Hz~65Hz
Active power measurement up to 12 kW
Reactive power measurement up to 12 kVAR
Apparent power measurement up to 12 kVA
Power factor measurement -1~+1
Phase angle measurement up to 360º
Storage of up to 99 data
Auto range
Blocking of securities
Communication via RS-232
Automatic shutdown

Low battery indicator

Brand	Uni-T
Measuring range AC current	20A ±(1.5%+3)
Measuring range AC voltage	600V ±(1.5%+3)
Frequency	45Hz~65Hz
Active power	Up to 12kW ±(3%+3)
Reactive power	Up to 12kVAR ±(3%+3)
Apparent power	Up to 12kVA ±(3%+3)
Phase angle	Up to 360º ±1°
Power factor	-1~+1 ±0.03
Sum of current vectors	Up to 60A
Sampling rate	0.5 samples/s
Number of phases	3
Data storage	Up to 99 values
Communications	RS-232
Display dimensions	39.3mm x 26.5mm
Auto Range	Yes, it has
Data blocking	Yes, it is available
Low battery indicator	Yes, it has
Automatic shutdown	Yes available (15 min)
Clamp opening	16mm
Power	6 x batteries (LR6) 1.5V
Dimensions	196 (H) x 92 (W) x 54 (D) mm
Weight	550 g
Security	CAT II 600V/ CAT III 300V CAT III [%VAR%]

Les merShow less

Produktdetaljer

Referanse UT267B

Sist vist

Vis mer

Del

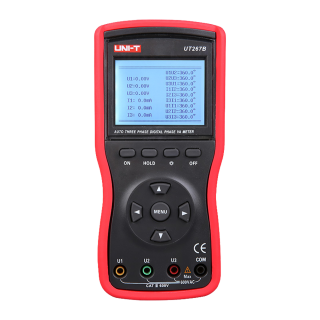

UNI-TREND UT267B
