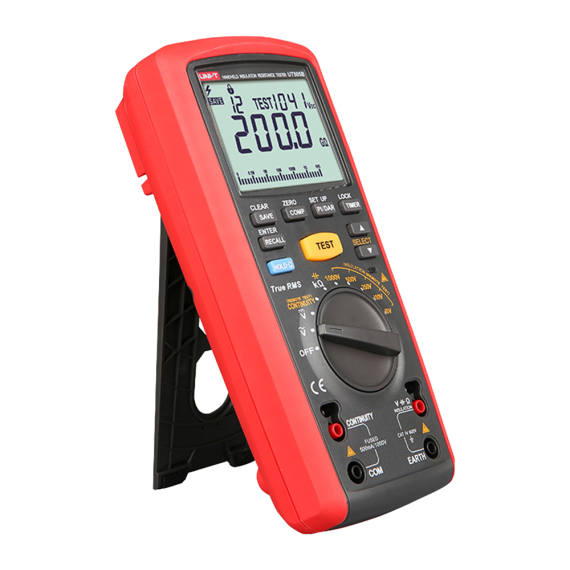

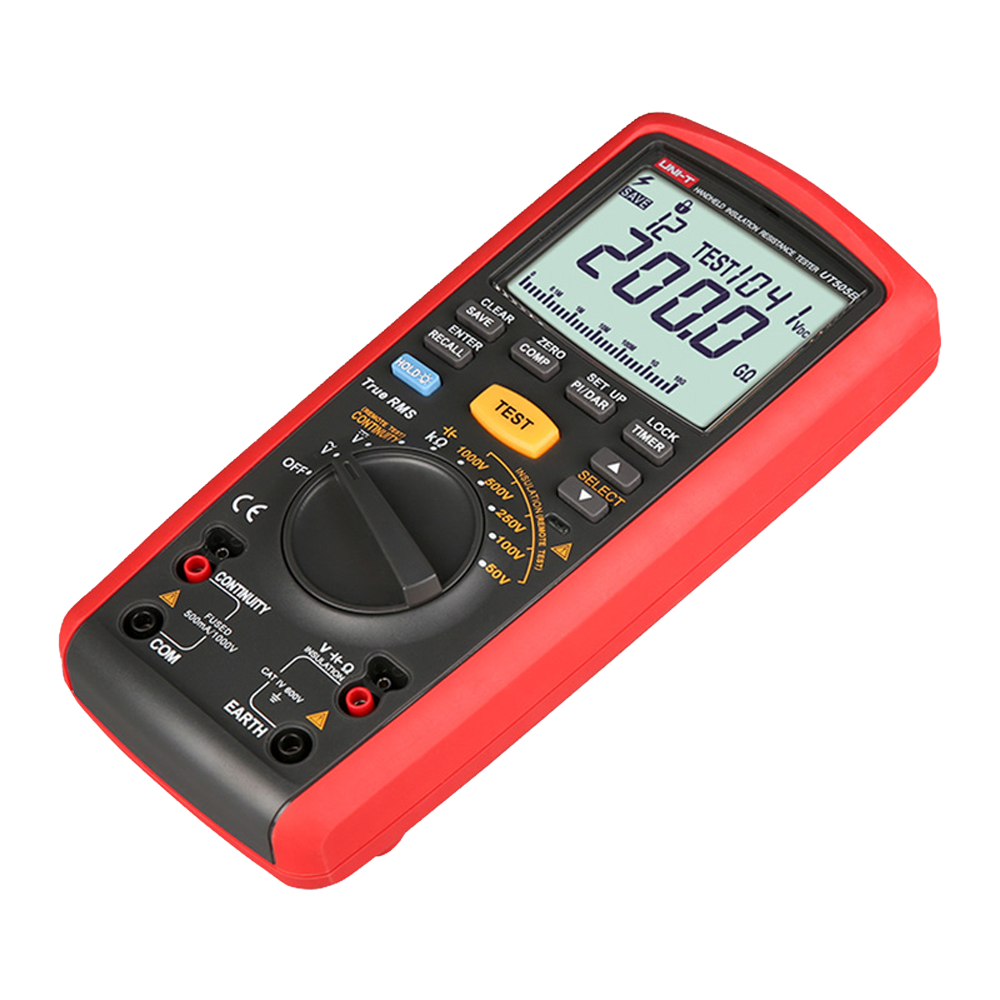

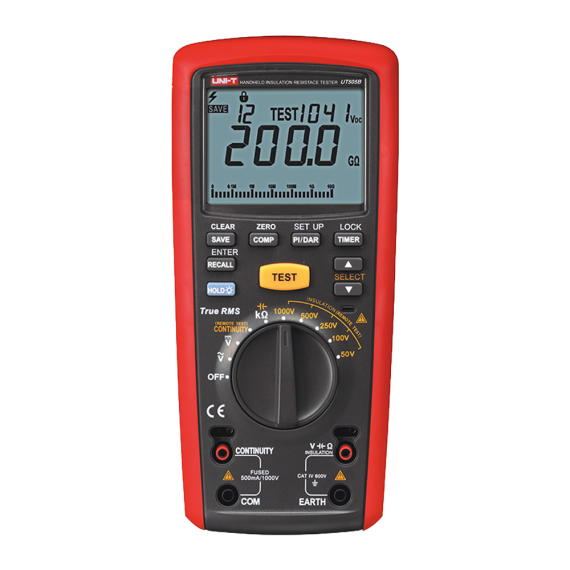

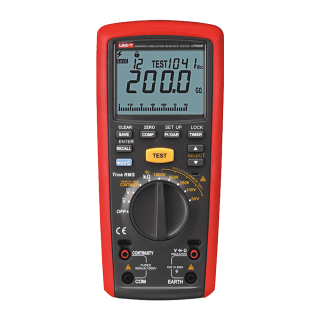

| Brand | Uni-T |
| Isolation Resistance | 50V: 0.01MΩ~50MΩ ±(3%+3) / 50MΩ~1GΩ ±(3%+3) 100V: 0.01MΩ~100MΩ ±(3%+3) / 100MΩ~1GΩ ±(3%+3) / 1GΩ~10GΩ ±(10%+3) 250V: 0.01MΩ~200MΩ ±(1.5%+5) / 200MΩ~1GΩ ±(1.5%+5) / 1GΩ~20GΩ ±(10%+3) 500V: 0.01MΩ~500MΩ ±(1.5%+5) / 500MΩ~1GΩ ±(1.5%+5) / 1GΩ~50GΩ ±(10%+3) 1000V: 0.01MΩ~2GΩ ±(1.5%+5) / 2GΩ~10GΩ ±(5%+3) / 10GΩ~20GΩ ±(7%+3) / 20GΩ~200GΩ ±(20%+3) |
| Charging current | 50V (R=50kΩ) 1mA; 0%~10% 100V (R=100kΩ) 1mA; 0%~10% 250V (R=250kΩ) 1mA; 0%~10% 500V (R=500kΩ) 1mA; 0%~10% 1000V (R=1MΩ) 1mA; 0%~10% |
| Short circuit current | <2mA |
| Resistencia general | 0.01kΩ~10MΩ ±(3%+3) |
| Rango de medida de voltaje AC y DC | DC: 0V~600V ±(2%+3) AC: 0V~600V ±(1.5%+5) |
| Rango de medida de frecuencia | 45~1kHz ±(0.1%+3) |
| Rango de medida de capacirtancia | 100pF~500μF ±(5%+5) |
| Cuentas display | Hasta 6000 |
| Ratio de Absorción Dieléctrica (DAR) | Si dispone |
| Índice de Polarización (PI) | Si dispone |
| Buzzer voltaje alto | Si dispone |
| Indicador de sobrecarga | Si dispone |
| Test resistencia interna 10 MΩ | Si dispone |
| Dimensiones | 103 (Al) x 225 (An) x 59 (Fo) mm |
| Dimensiones display | 78mm x 59mm |
| Alimentación | 6 x pilas 1.5V (LR6) |
| Peso | 530 g |
| Seguridad | CAT II 1000V/ CAT III 600V |
