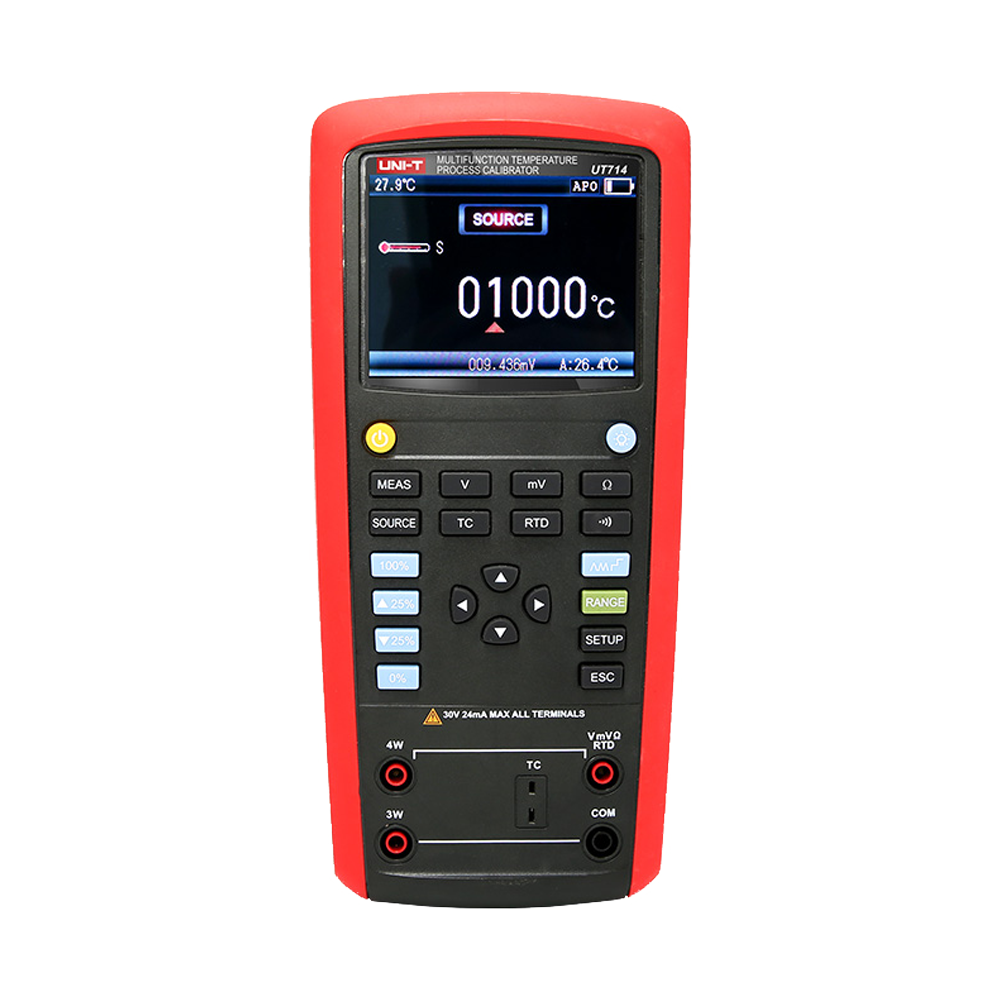

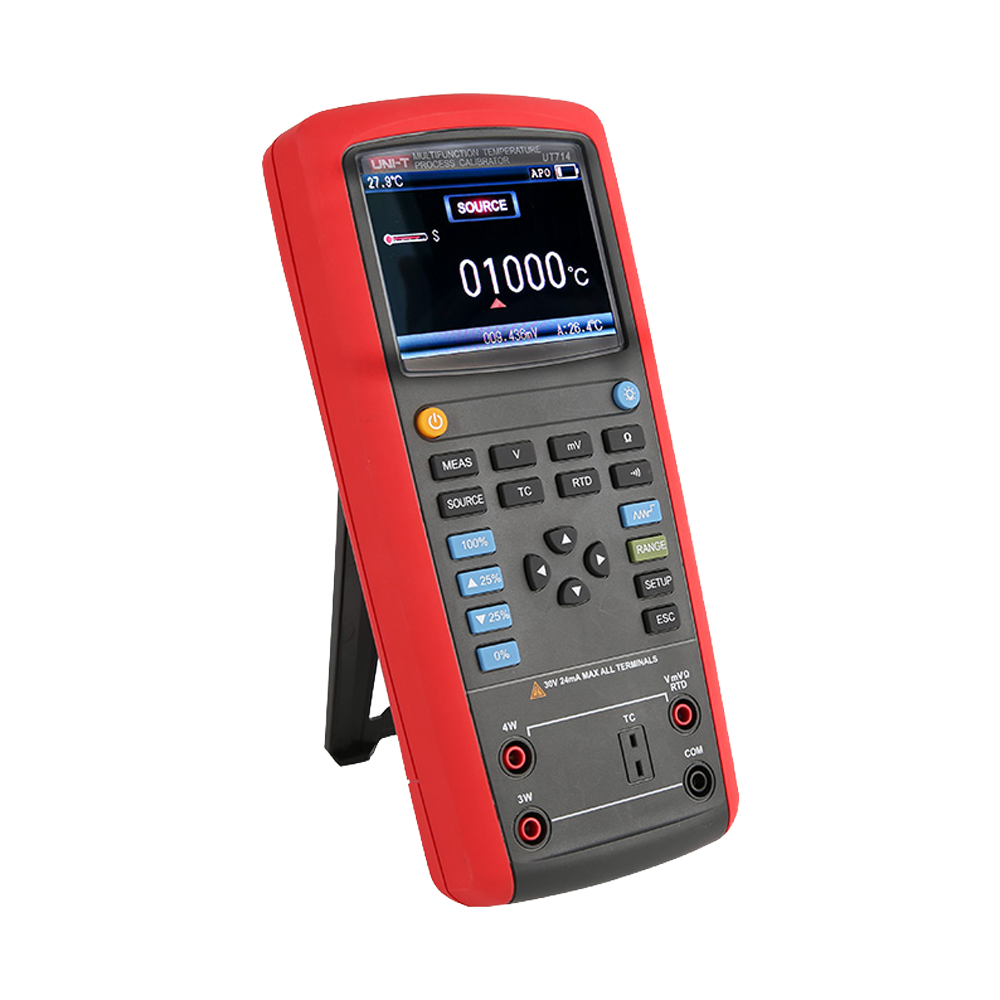

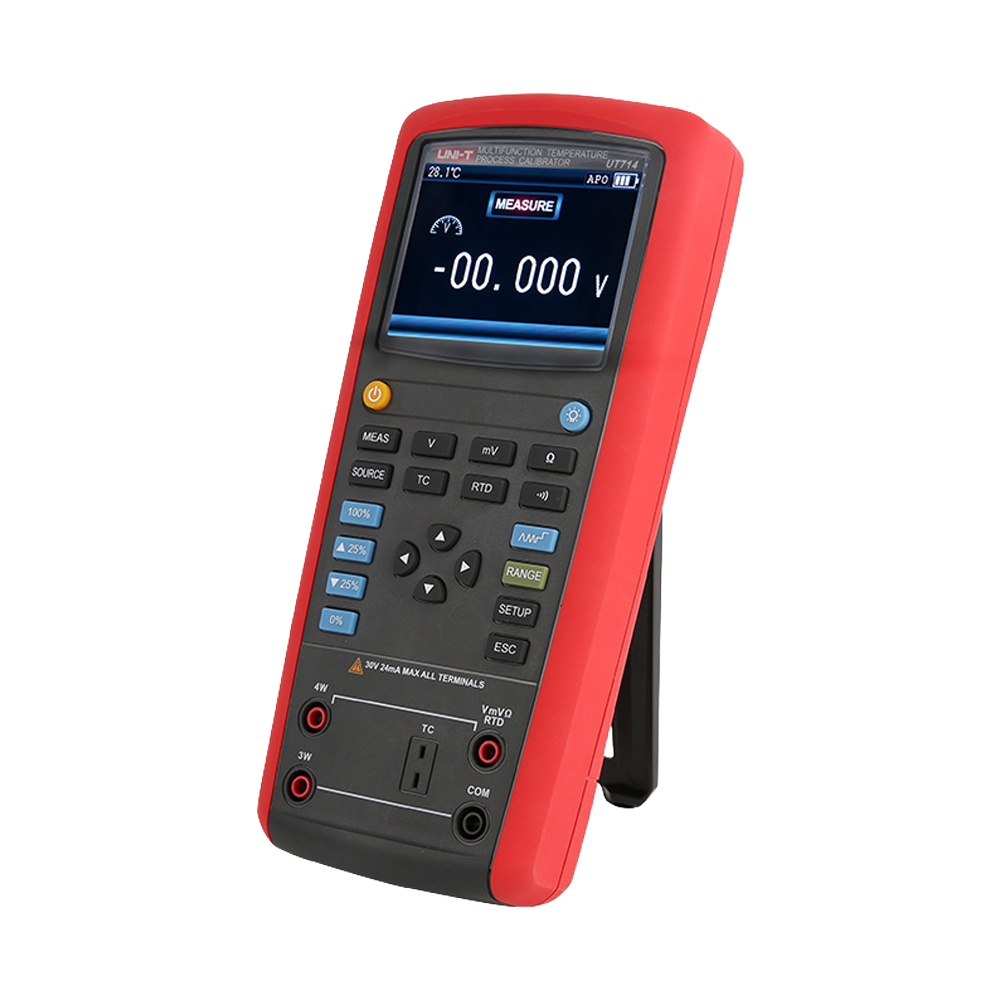

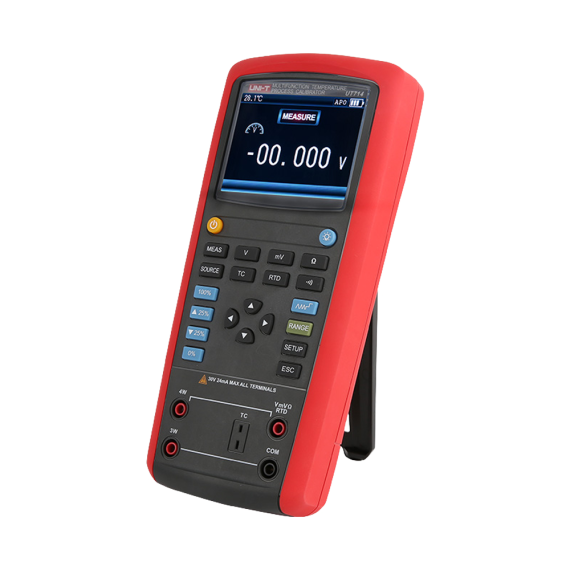

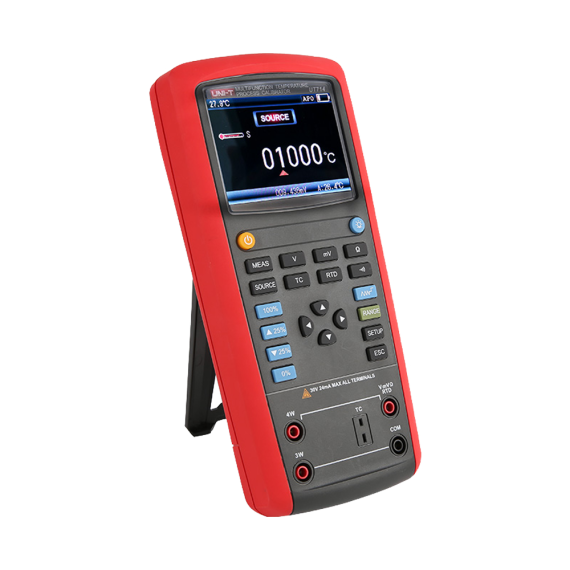

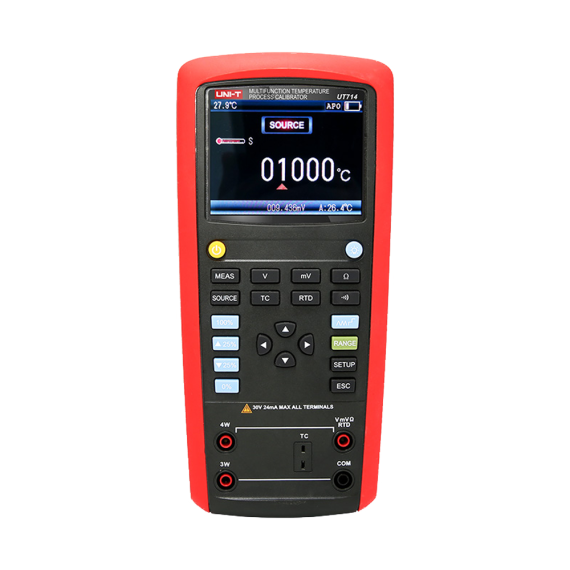

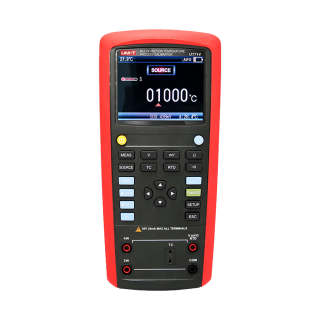

UNI-TREND UT714

Temperature process calibrator - LCD display up to 2000 accounts - Makes measurements of thermal probes and RTD's - Performs voltage and resistance measurements - USB communication available - Automatic shutdown

Les merShow less

kr 16,559.40

Referanse:

UT714

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

UNI-T
Multifunction process temperature calibrator
Valid for thermocouple, RTD's, voltage and resistance measurements
Valid for calibrating different types of temperature sensors
LCD display up to 2000 accounts
Passage/ramp functions
Rechargeable battery
Source and measurement accuracy up to 0,02 %
Contrast adjustment
Automatic shutdown (adjustable time)
USB communication

Stores and retrieves configurations

Brand	Uni-T
Measurements
DC voltage (V)	50mV ±(0.02%+2) 500mV ±(0.02%+2) 30V ±(0.02%+2)
Resistance (Ω)	500Ω ±(0.05%+10) 5000Ω ±(0.05%+10)
Thermocouples	R,S,K,E,J,T,N,B,L,U
RTDs	Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120
Continuity test	Yes, it is available
Source
DC voltage (V)	100mV ±(0.02%+10) 1000mV ±(0.02%+10) 10V ±(0.02%+10)
Resistance (Ω)	400Ω ±(0.05%+10) 4000Ω ±(0.05%+10)
Thermocouples	R,S,K,E,J,T,N,B,L,U
RTDs	Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120
Display dimensions	70.6mm x 34mm
Display accounts	Up to 2000
Accuracy	Source: up to 0,02 % Measurement: up to 0,02 %
Characteristics
Communication	Yes, it is available. USB
Passage/ramp functions	Yes, it is available
Contrast adjustment	Yes, it is available
Automatic shutdown	Yes, it is available. Adjustable time
Other functions	Stores and retrieves configurations
Dimensions	195 (H) x 95 (W) x 58 (D) mm
Power	6 x rechargeable batteries 1.2V (AA)
Weight	650 g
