| Brand | Branded |

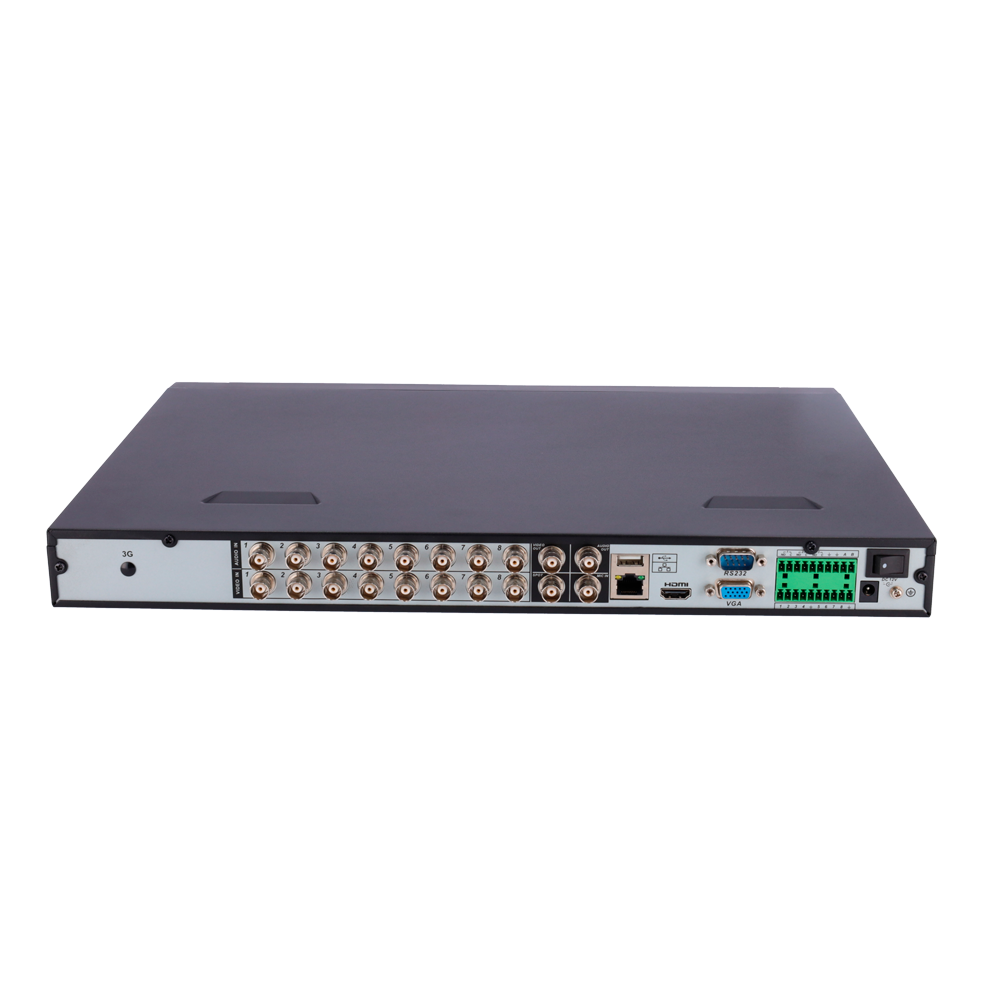

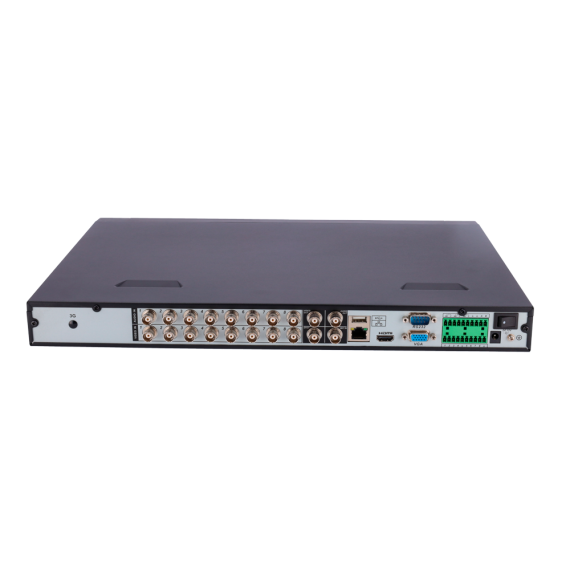

| Inputs for analog cameras | 8 BNC channels |
| Video outputs | 1xHDMI, 1xVGA, 1xBNC |
| Video compression format | H.264 / MPEG4 |
| Main display resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 |
| Recording resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 |
| Coding capability | 8CH@1080p |
| Audio inputs | 8 CH (RCA) |
| Audio outputs | 1 RCA output |
| Bidirectional audio | Supports high quality two-way conversation |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | 8 inputs / 3 relay |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Internal memory | 2xSATA HDD |
| Communication | 1 x RJ45 10/100 Mbps (Ethernet) / 1 x RS485 / 1 x Connector for antenna |
| Remote access | Web Browser, Smartphone App and Smart PSS |
| Power | DC 12 V, 40 W |
| Operating temperature | -10° ~ +55° C |
| Dimensions / Weight | 137 x 162 x 30 mm / 2.3 Kg |
