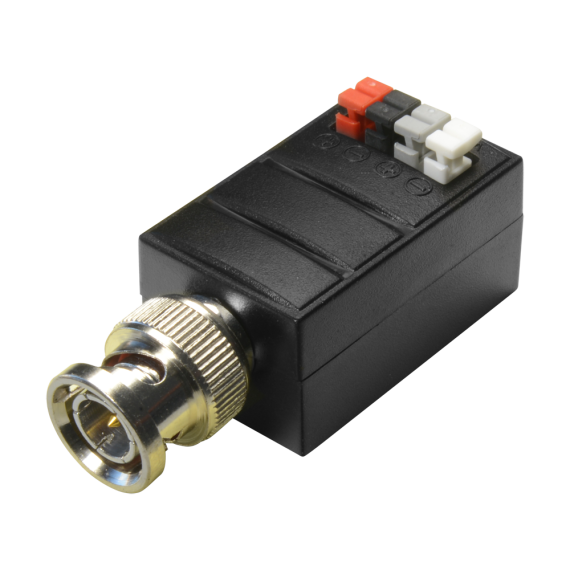

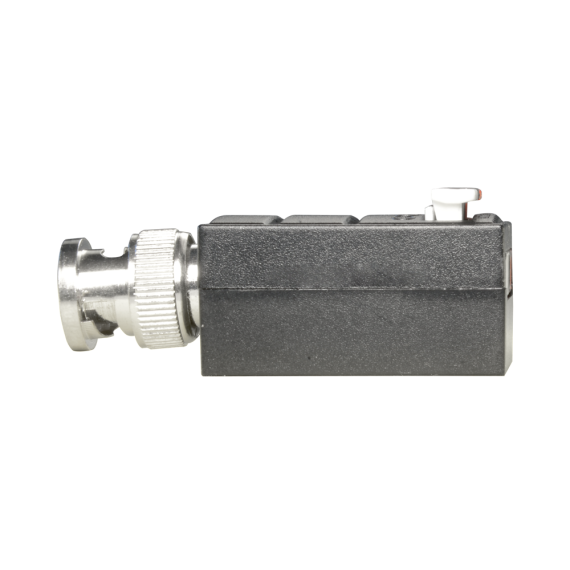

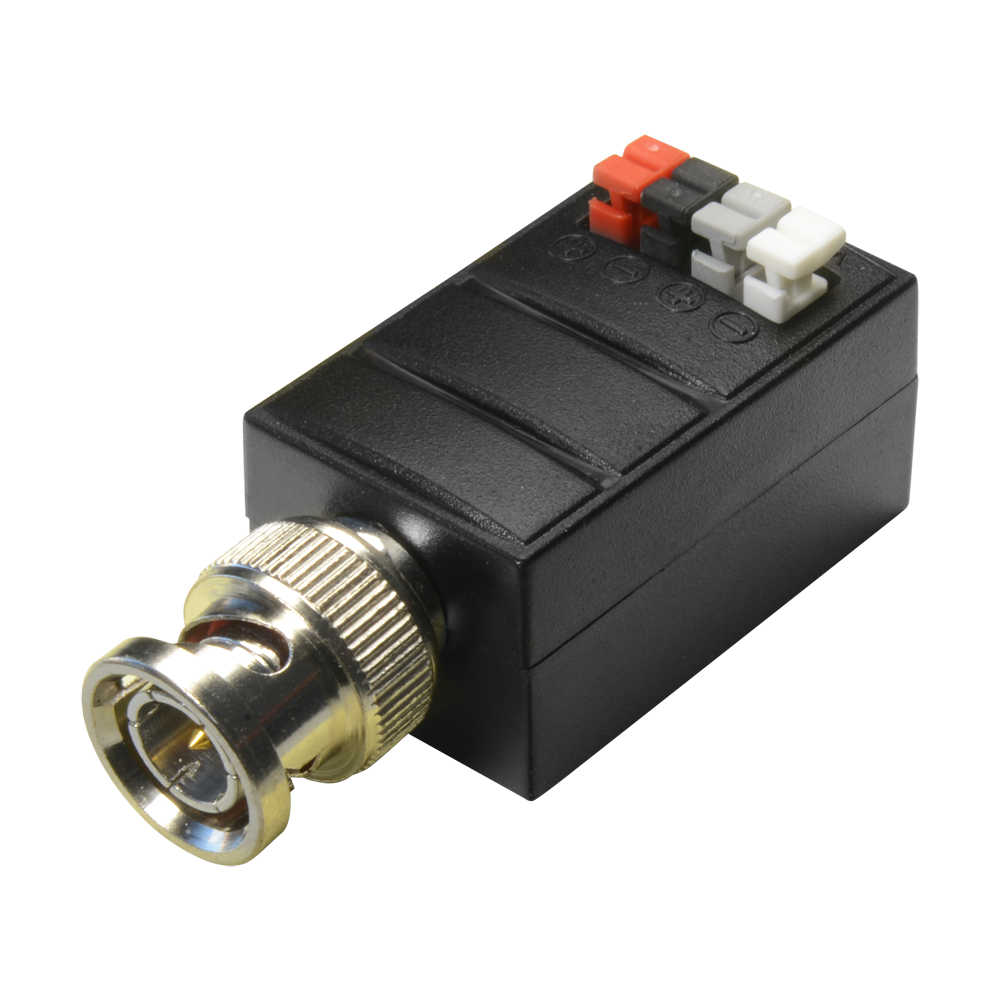

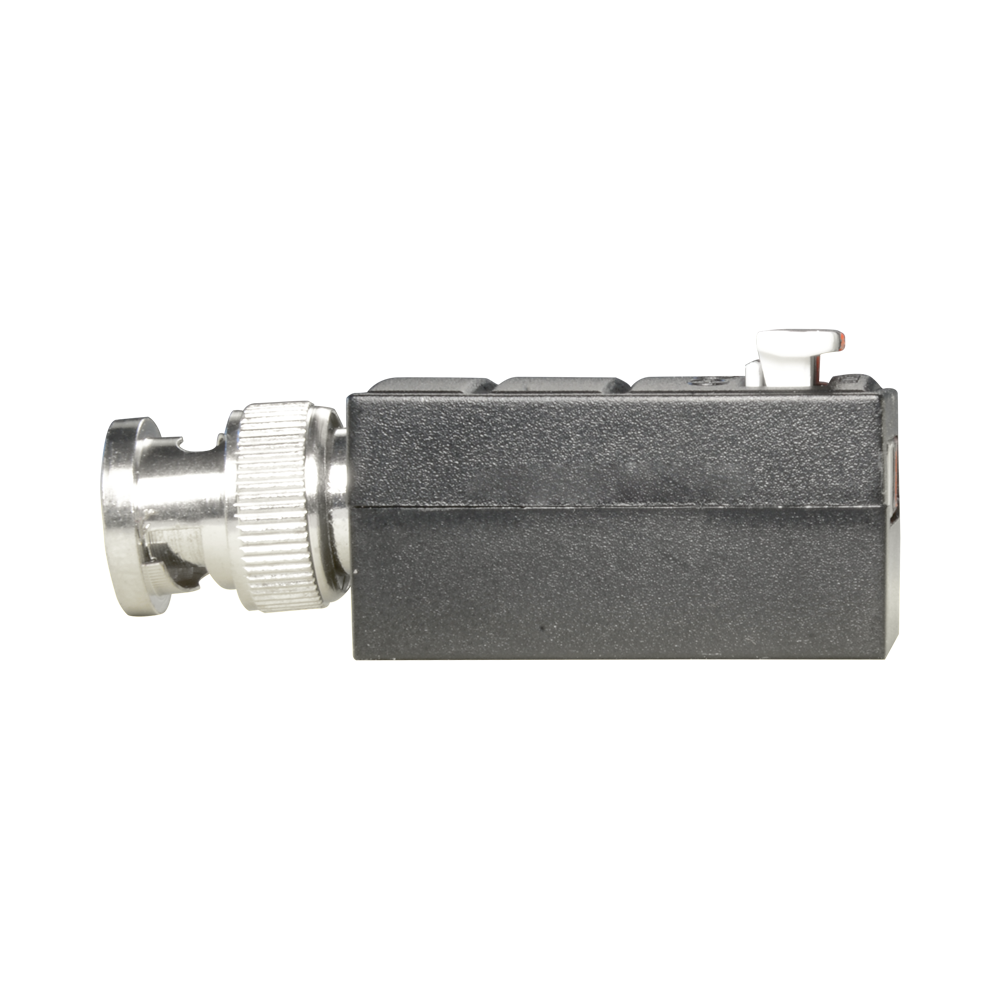

MARCA BLANCA BA615A-TX

Active transceiver - Optimized for HDTVI / HDCVI / AHD - 1 video channel - BNC/UTP 4 pins - Range: 400 ~ 700 m - Transmitter / Compatible with BA615A-RX
Les merShow less
kr 636.90
Referanse:
BA615A-TX
Beskrivelse
  • Balun (transceiver)
  • Optimized for HD video: HDTVI / HDCVI / AHD
  • 1 channel
  • Active
  • Power 12VVDC
  • BNC/UTP 4 pins
  • Video
  • Maximum range 400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)
  • 1 Transmitter
  • Compatible with BA615A-RX

    Number of channels1 channel

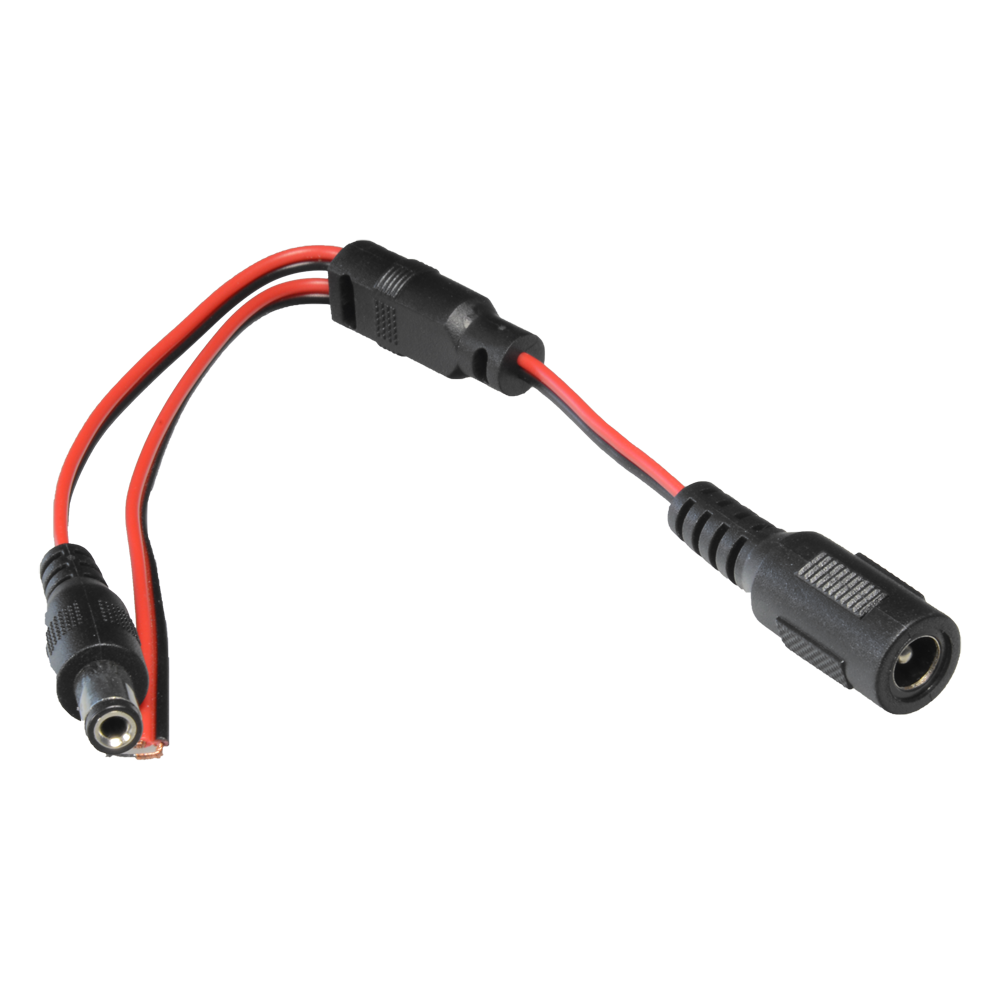

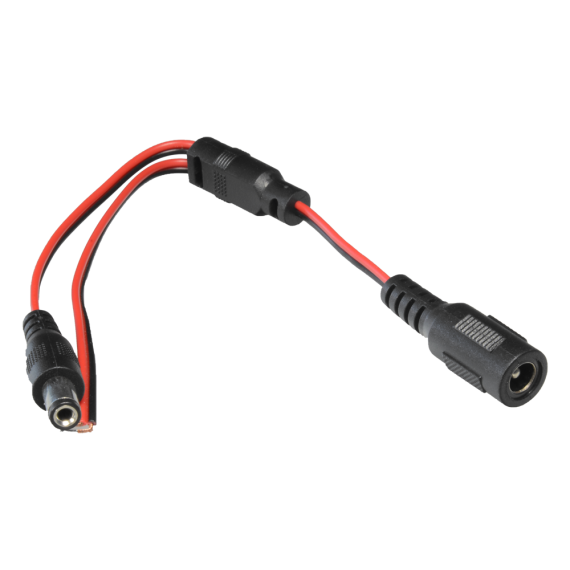

    Power12VDC / 1A (Passive)
    Video Input/OutputBNC (male)
    Transmission distance400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)

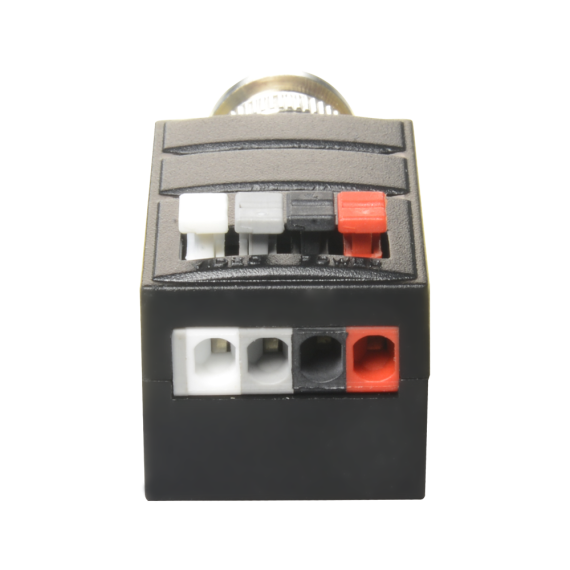

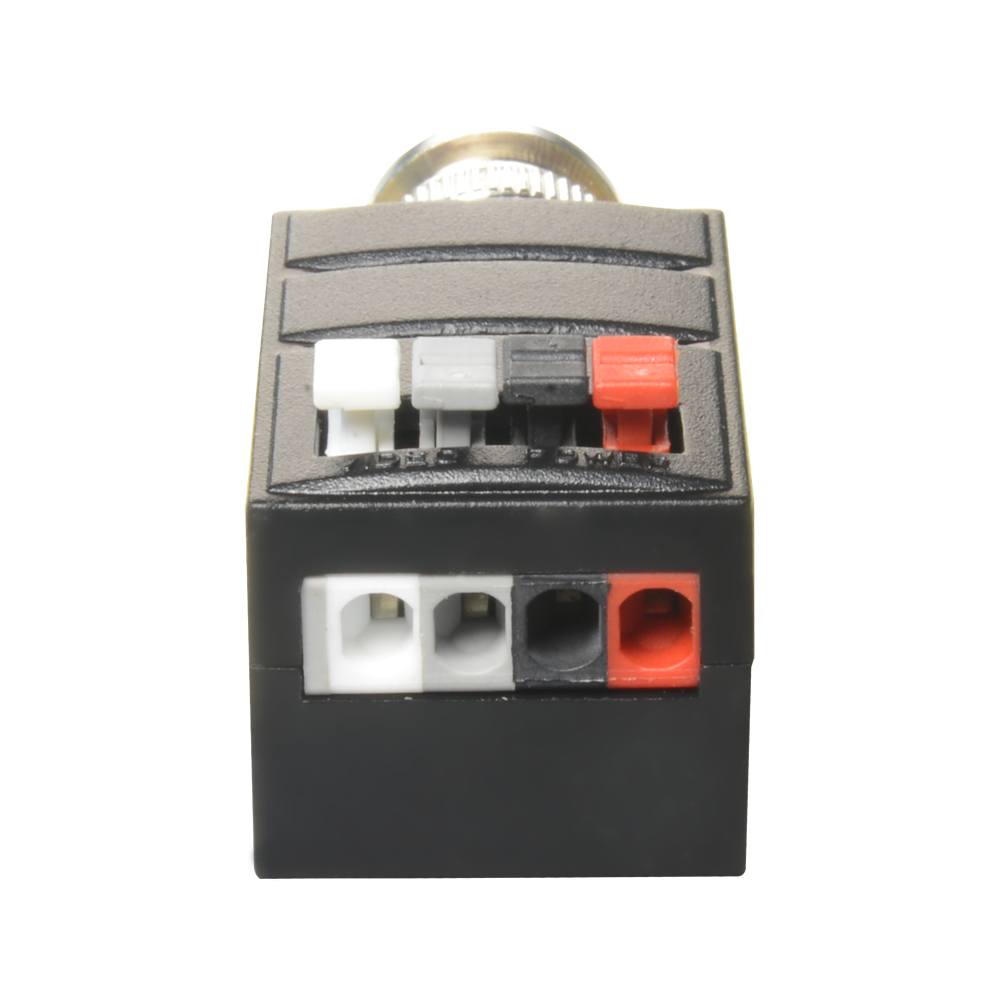

    Twisted pair connectorConnector with 4 pins
    Crosstalk60 dB
    Input impedance75 Ohm
    Output Impedance100 Ohm
    Cable categoryUTP category 5e/6
Les merShow less
