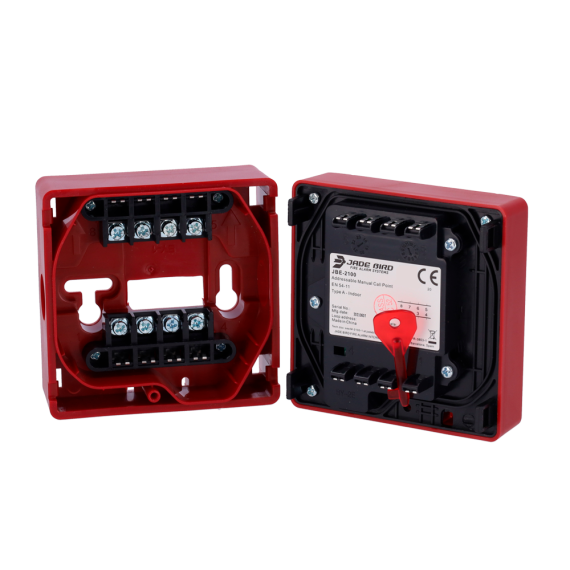

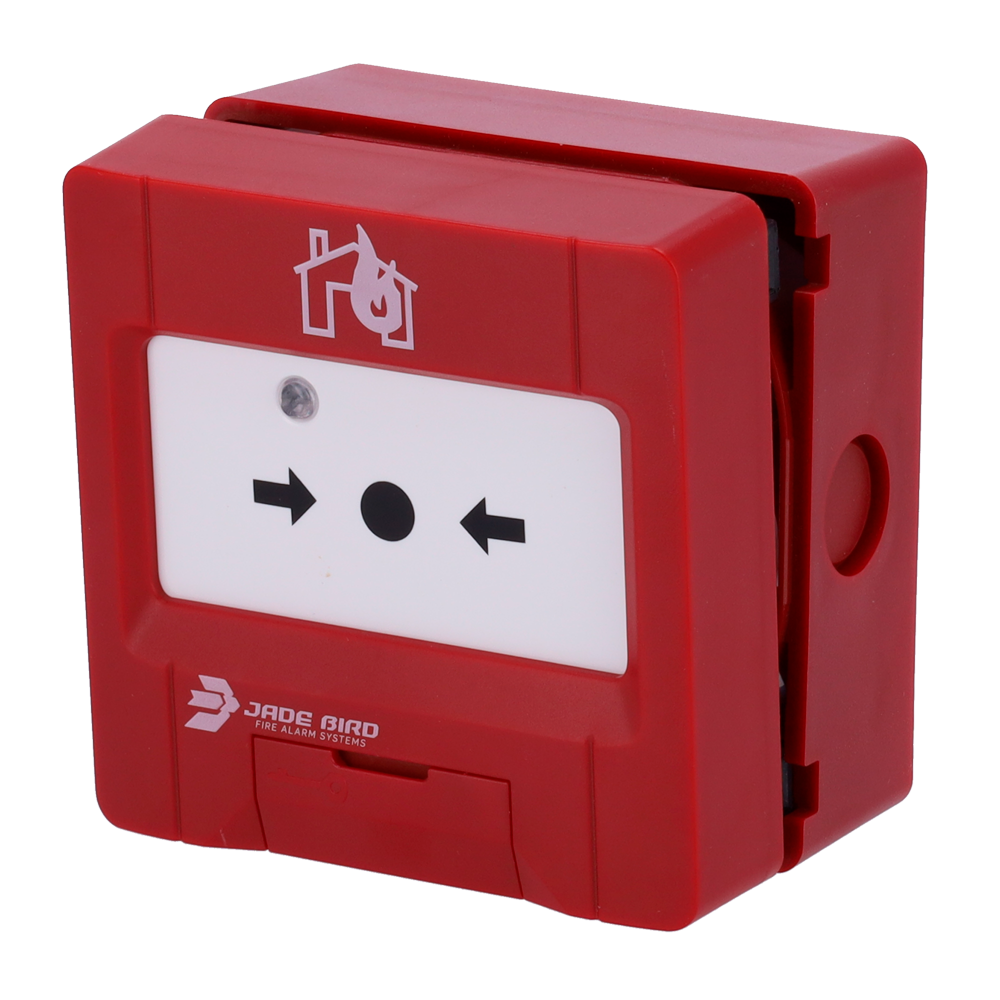

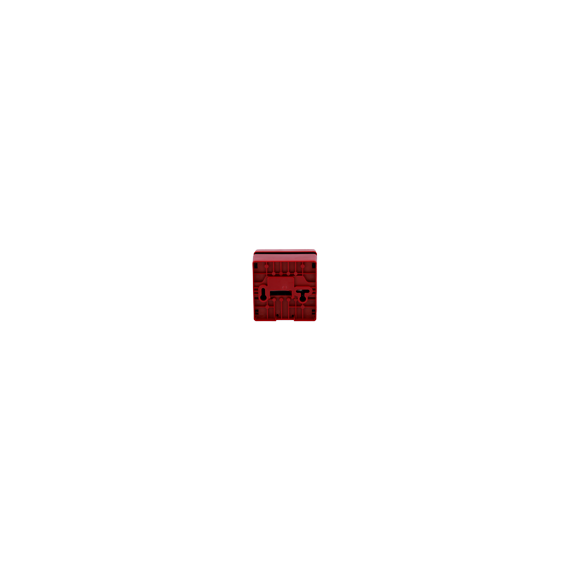

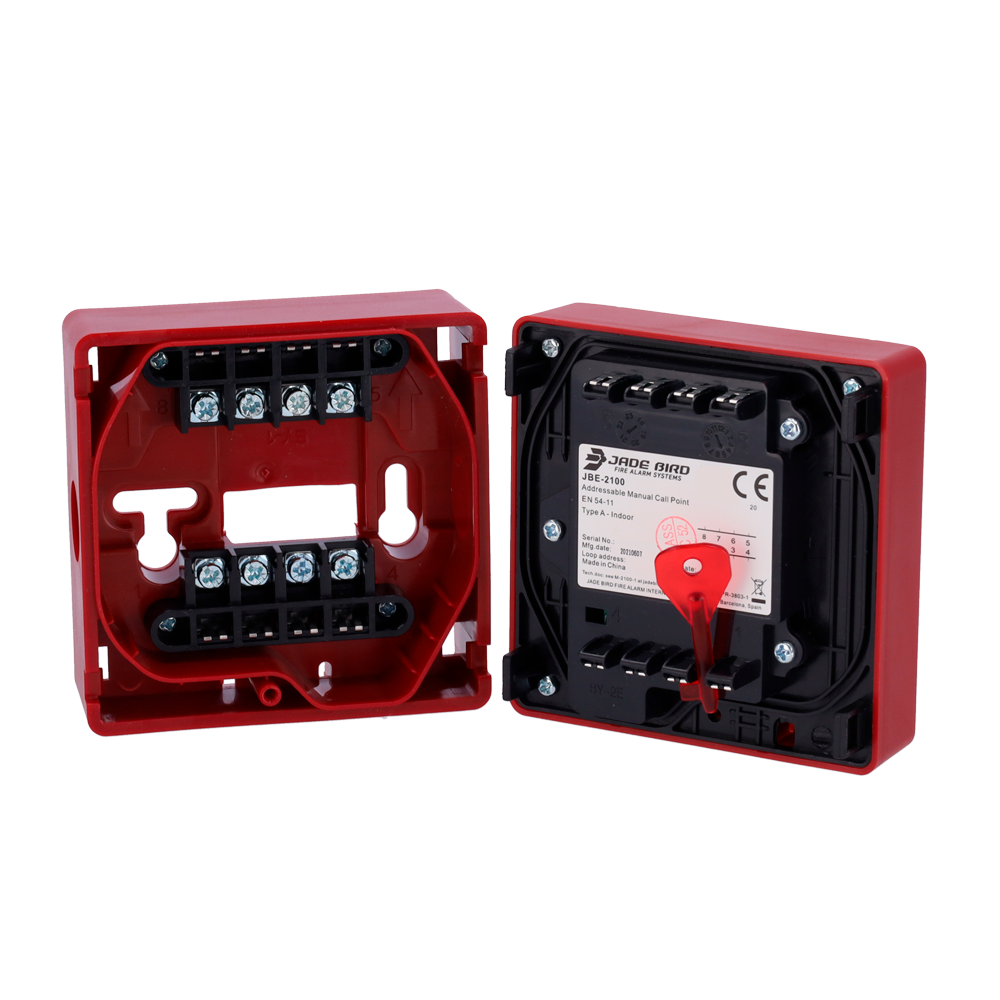

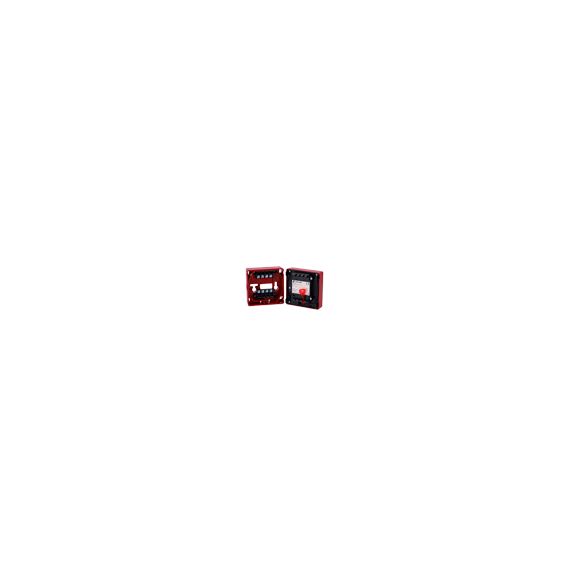

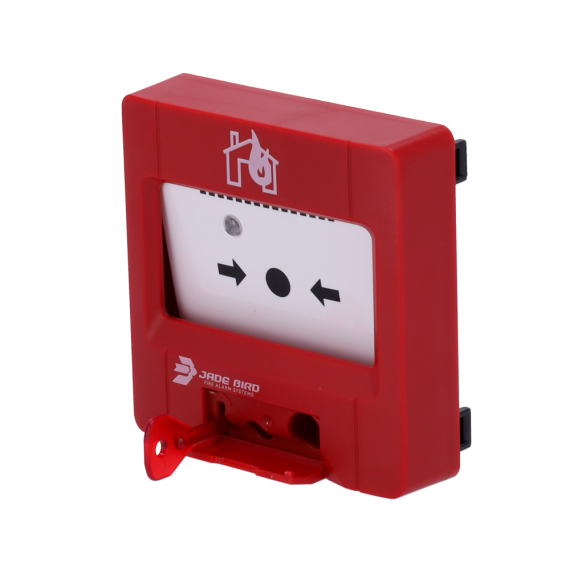

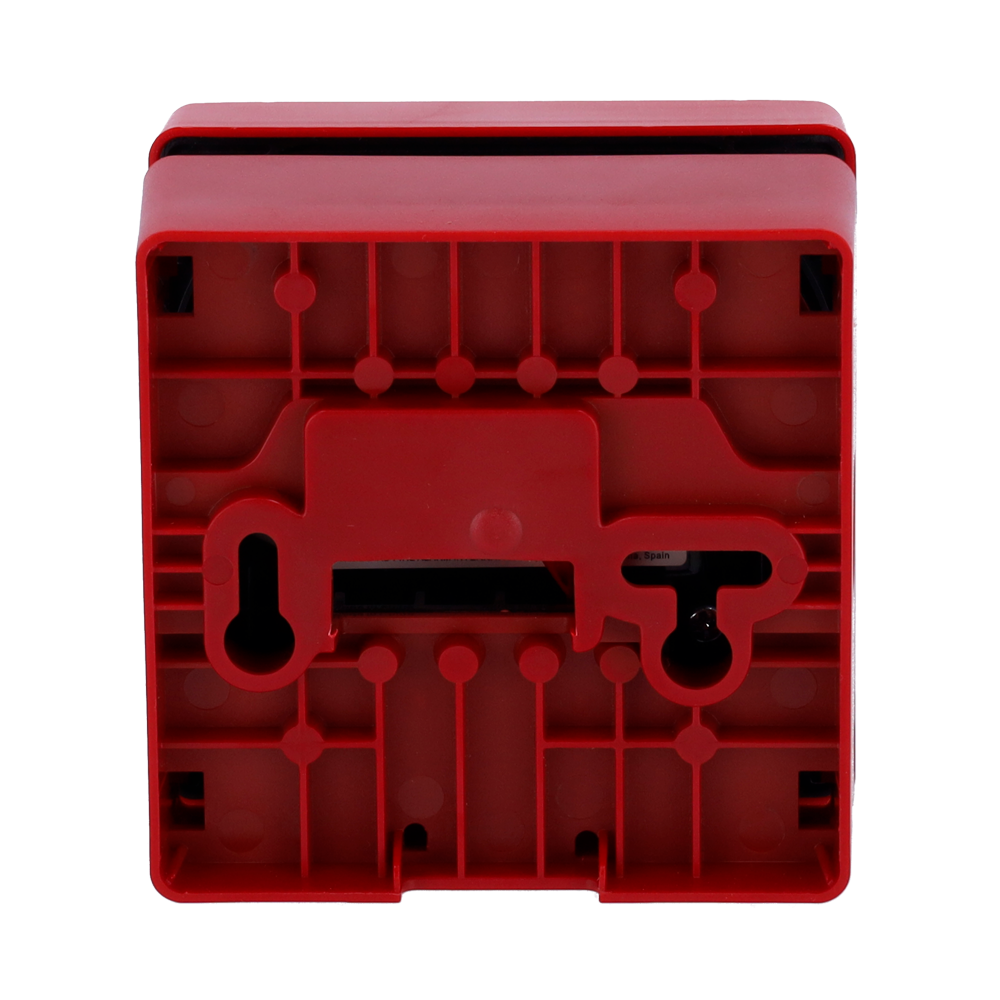

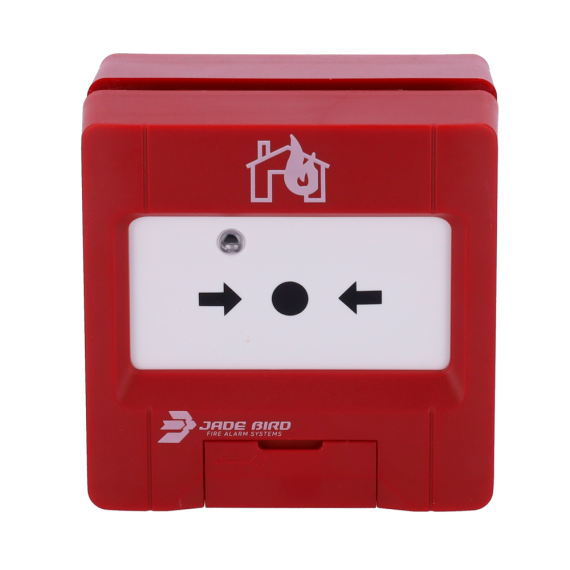

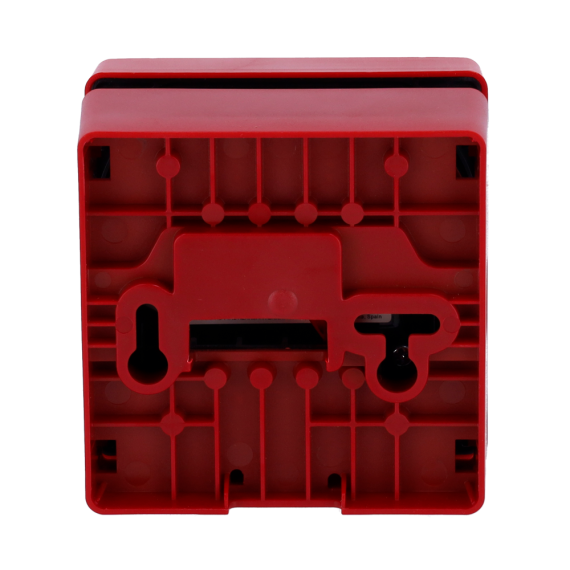

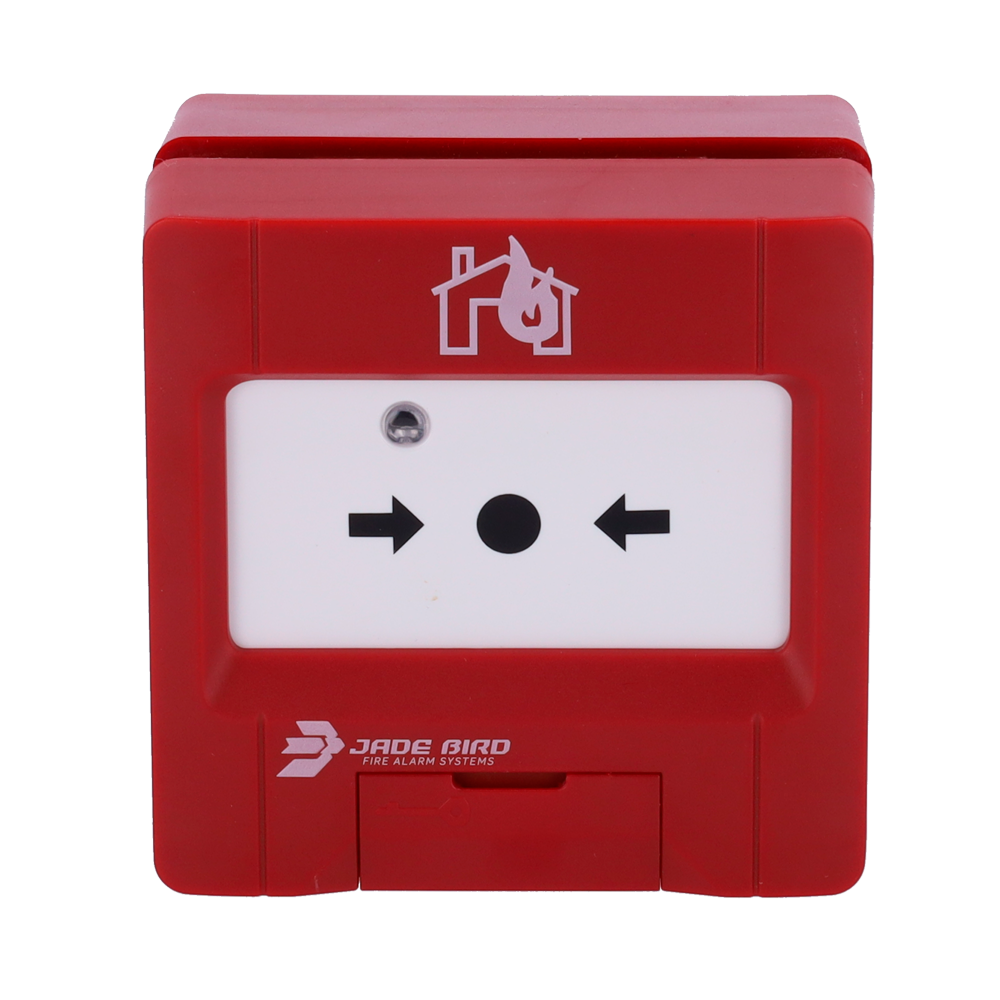

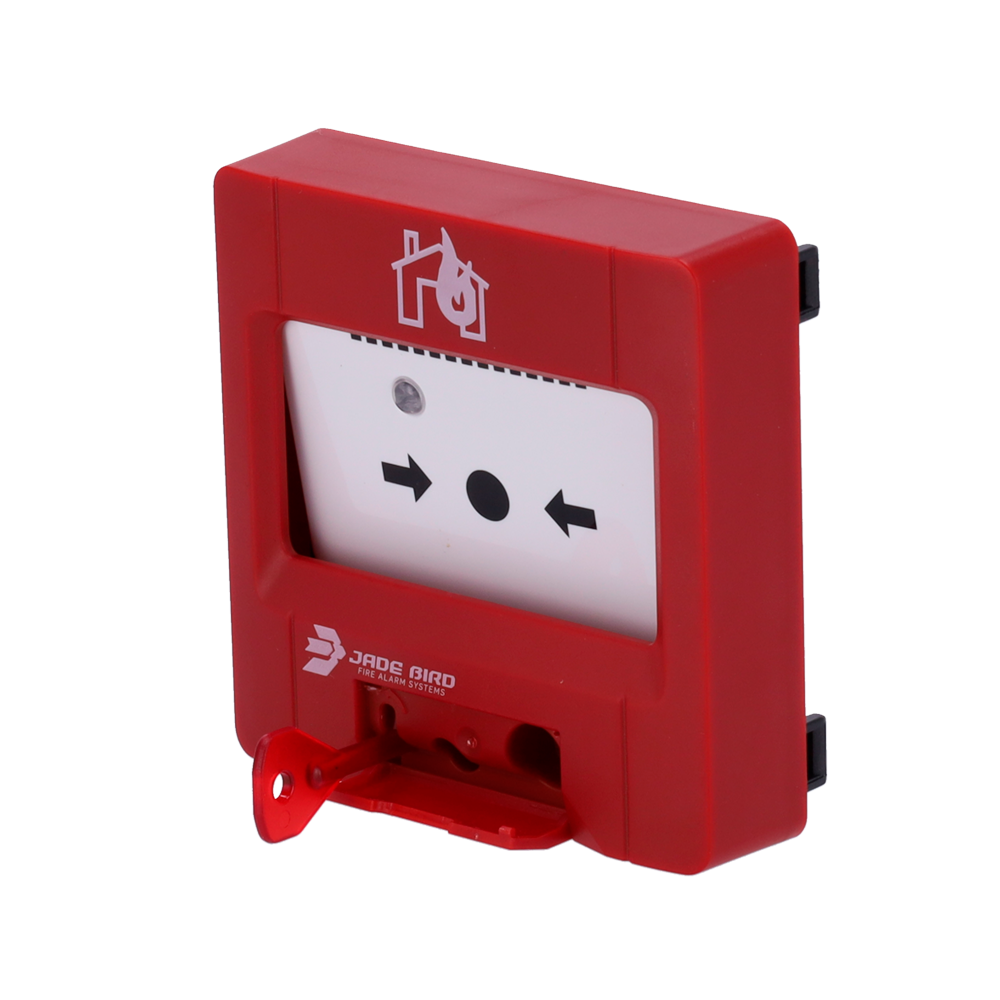

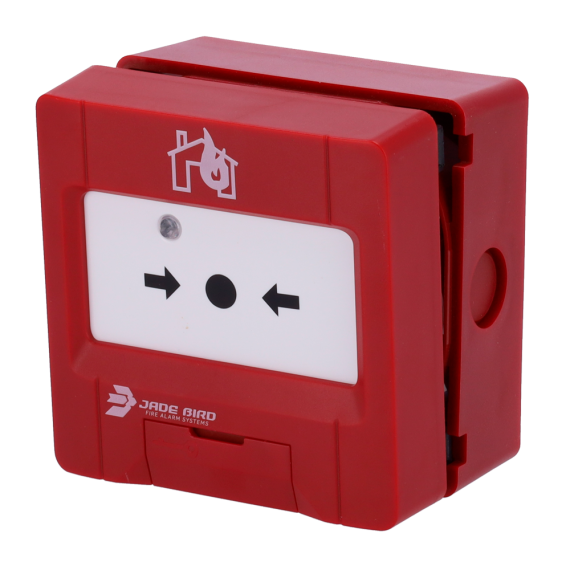

JADE BIRD JBE-2100
Jade Bird analog pushbutton - Rearmable - Visual activation indicator - Auxiliary dry contact - Selectable alarm resistance 680/470 Ω - Certified EN 54-11
Les merShow less
kr 630.82
Referanse:
JBE-2100
Merke:
![JADE BIRD]()
Relaterte produkter
- Jade Bird - Pulsador analógico rearmable
- Visual activation indicator
- Without isolator
- Same key for opening and rearming
- Selectable alarm resistance
- Address programmable by means of the JBE-AT1 tool
- Certified in EN54-11
- Auxiliary dry contact for local action or signal to third parties
Brand Jade Bird Type Manual resettable pushbutton Operating voltage 19-28 VDC (pulse width of JBE protocol) Connection JBE communication bus 2 wires, no polarity Cable size Twisted pair without mesh 0.5 - 2.5 mm² Consumption in idle mode ≤0.3 mA @24 V Consumption in alarm mode ≤1.0 mA @24 V Dry contact 0.1 A / 30 VDC Temp. of work -10ºC to 55ºC Temp. of storage -20ºC to 60ºC Humidity ≤ 95% RH (non-condensing) Address Addressing tool JBE-AT1 Address range 1-200 Led indicator Rest: Blinking with loop pooling
Alarm: Fixed ignitionDimensions (HxWxD) 90 mm × 90 mm × 52 mm Protection Grade IP40 Weight 0,16 kg Standard EN 54-11
