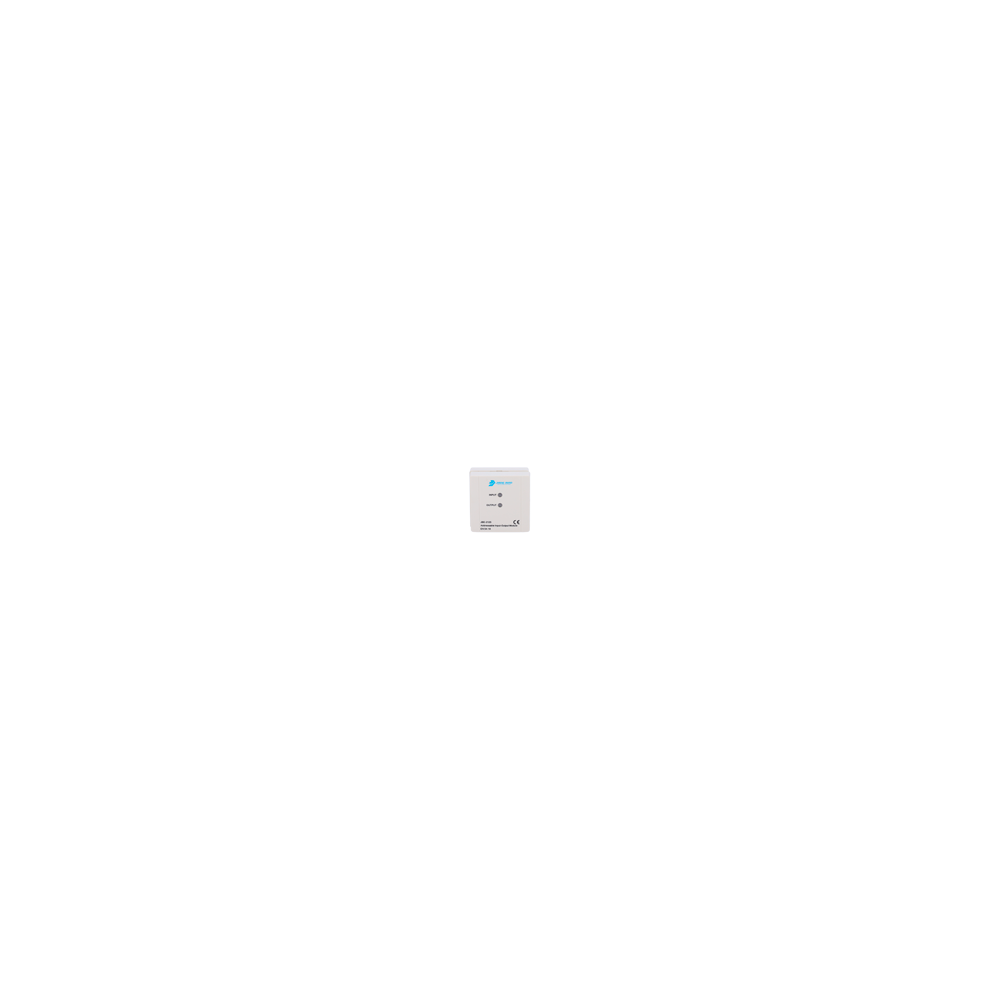

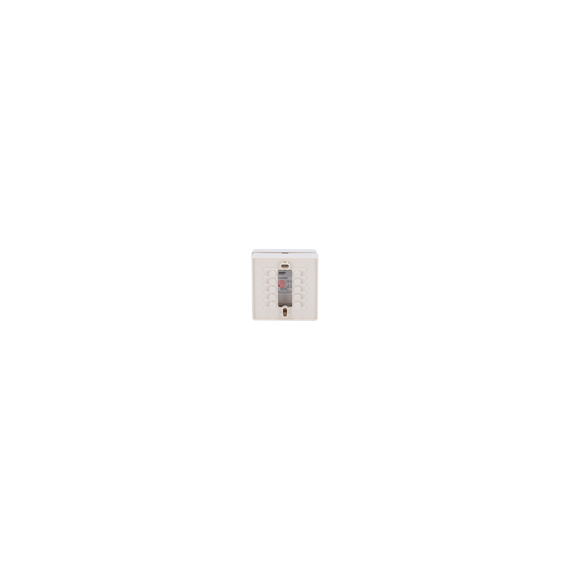

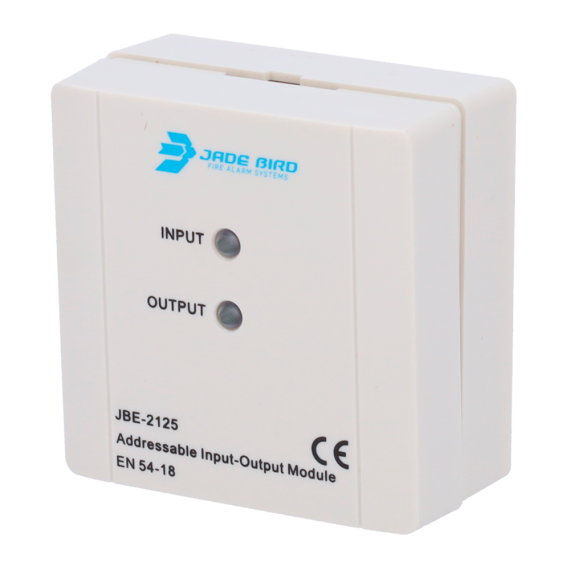

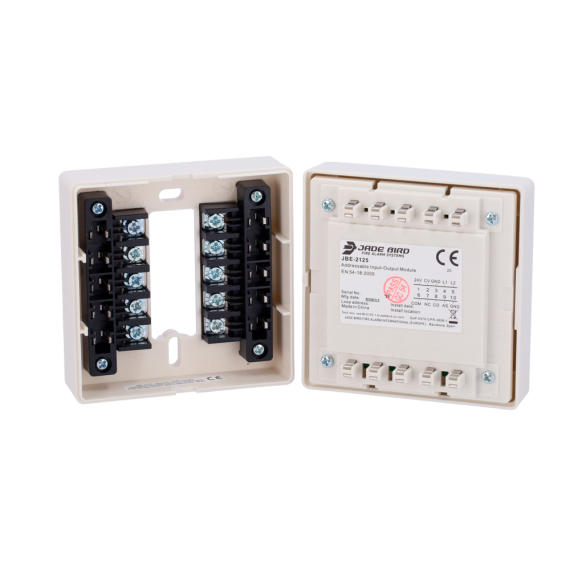

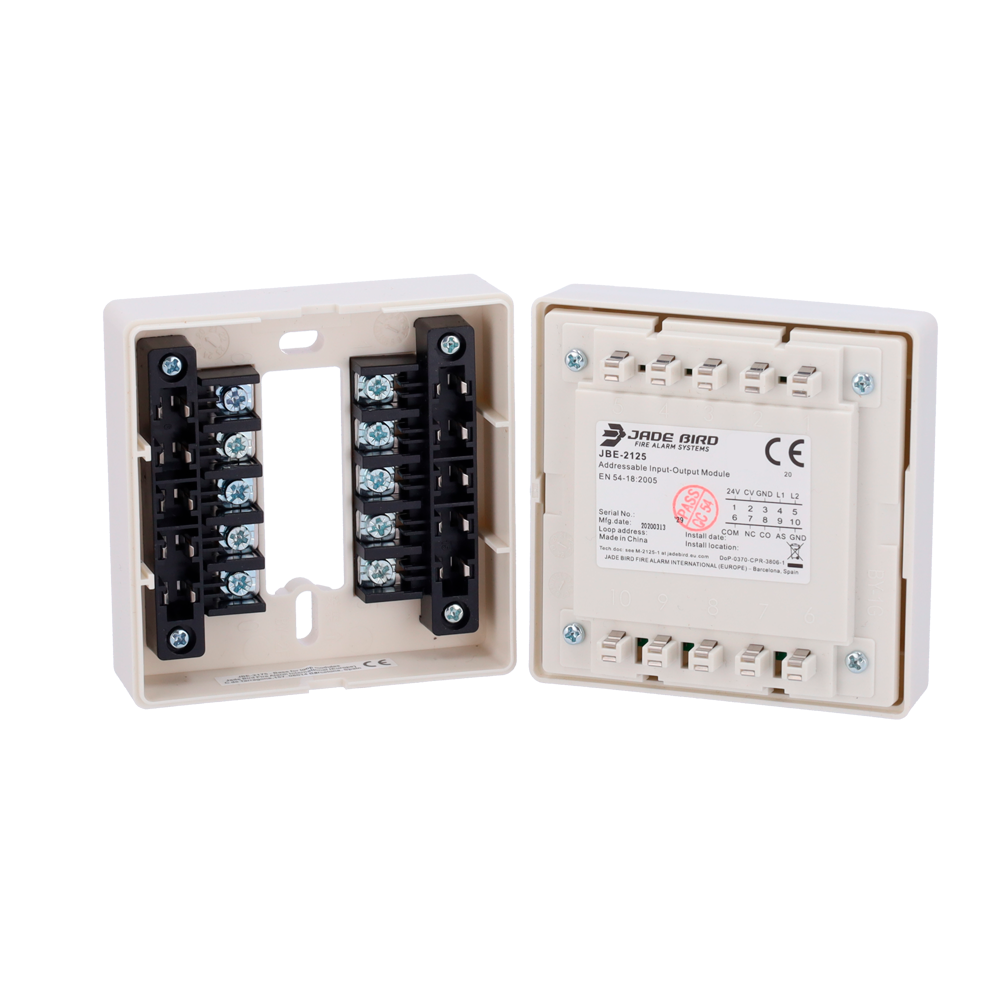

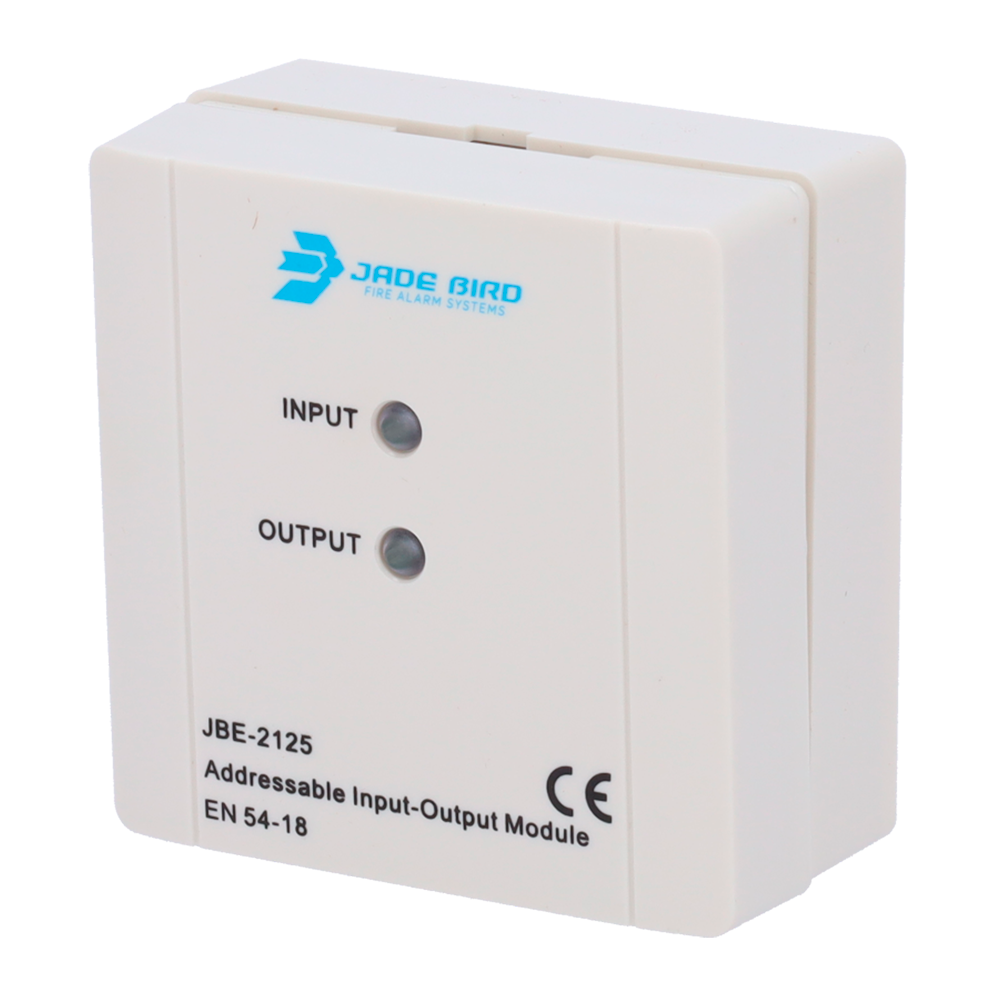

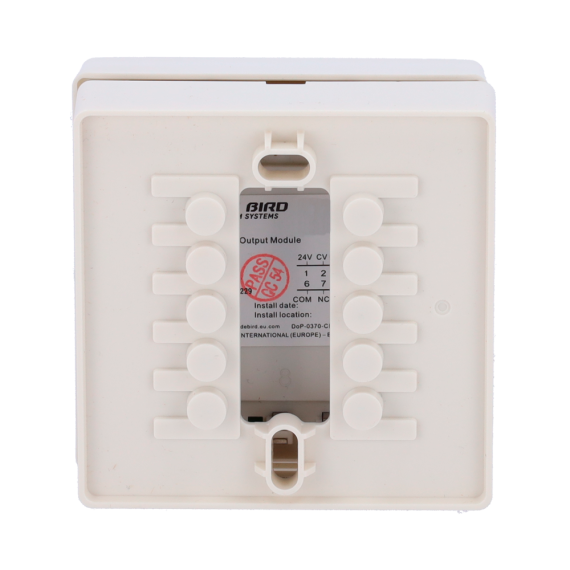

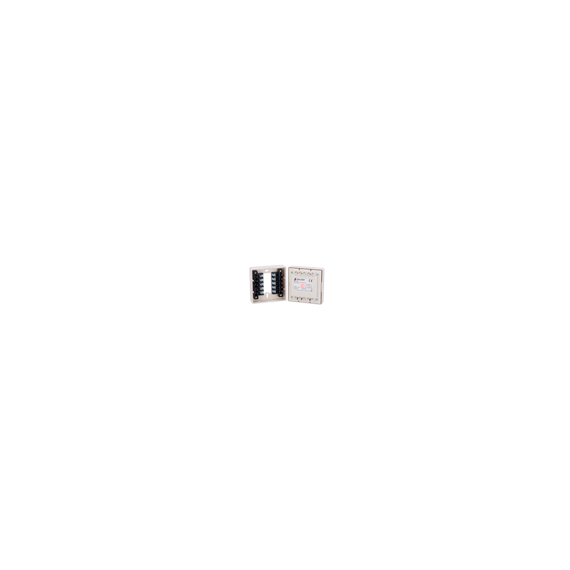

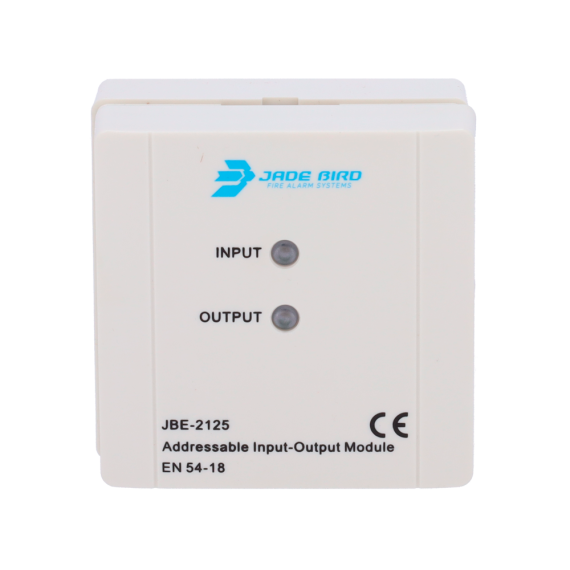

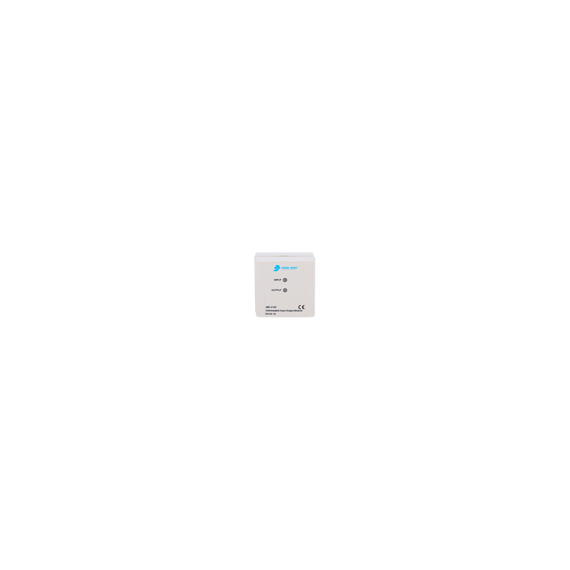

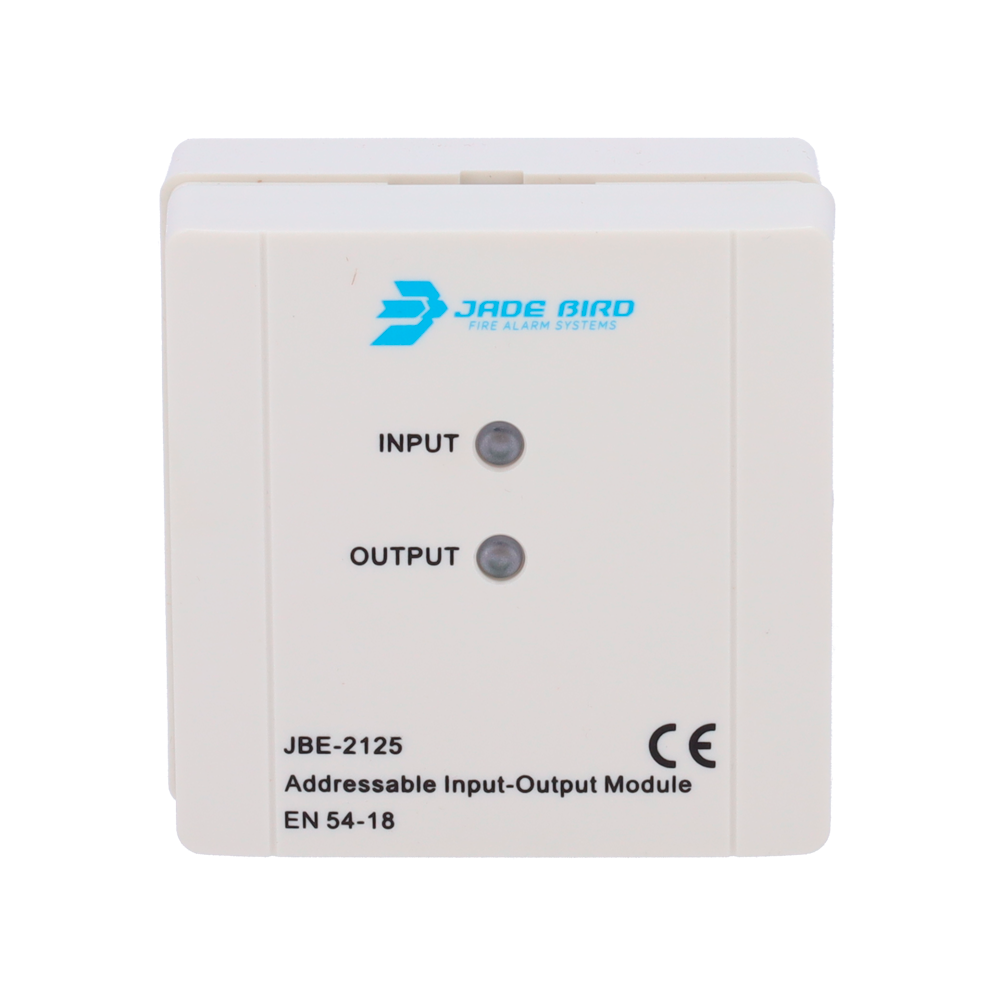

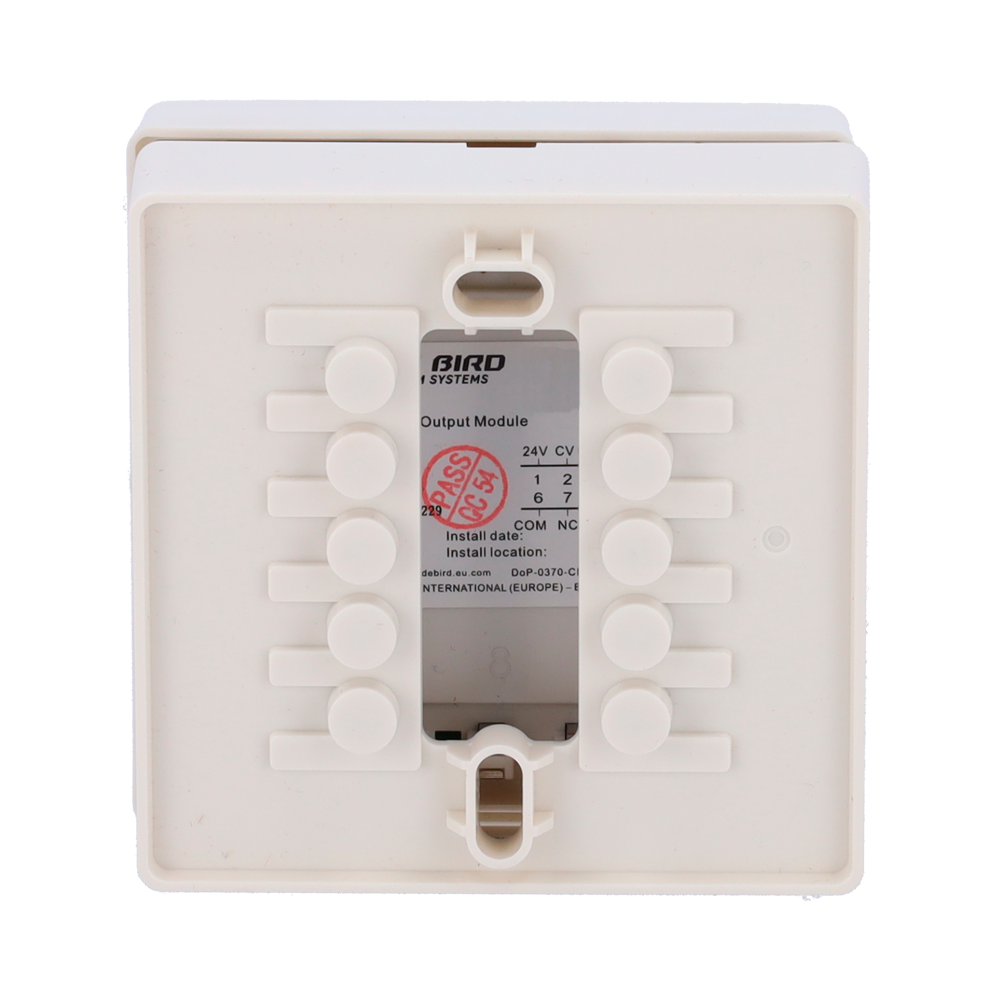

JADE BIRD JBE-2125

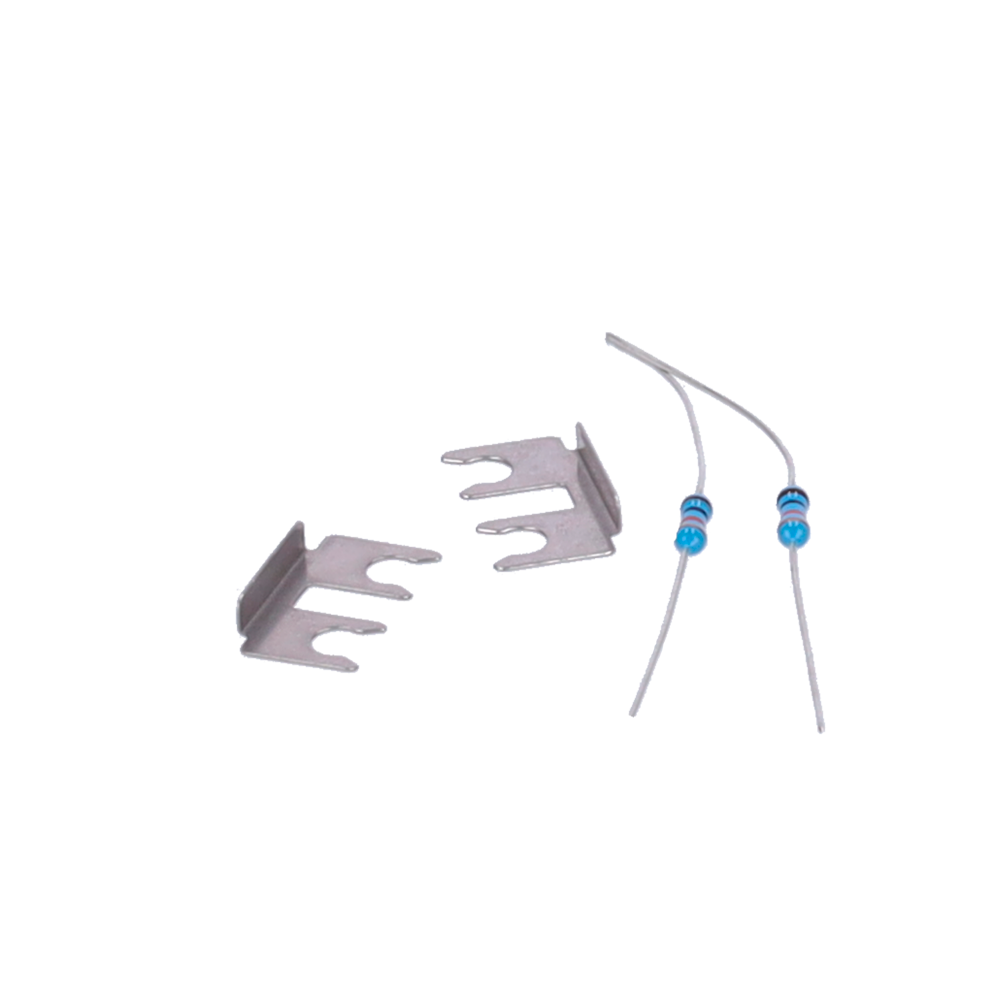

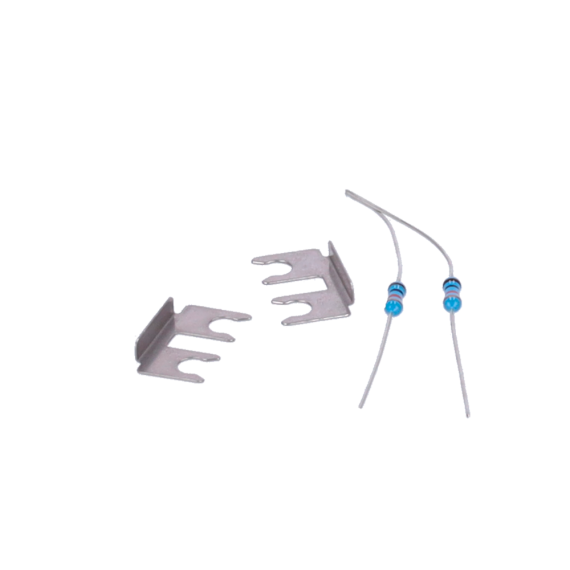

Jade Bird analog module - 1 Output with confirmation input - Powered by loop - Conductor cable up to 2.5mm2 - REOL of 10 kΩ (supplied) - Certified EN 54-18
Les merShow less
kr 526.02
Referanse:
JBE-2125
Merke:
![JADE BIRD]()
Relaterte produkter
- Jade Bird
- Output module with analog confirmation input
- Loop powered
- Without isolator
- Front LED indicator
- Address programmable by means of the JBE-AT1 tool
- Certified EN 54-18
Brand Jade Bird Type Analog module of 1 output with confirming input Operating voltage DC 16 - 30 V (Pulse Width JBE Protocol) Connection JBE communication bus 2 wires, no polarity Wired Twisted pair without braid 0.5 - 2.5 mm2 Consumption in idle mode ≤0.25 mA @24 V Active consumption ≤1 mA @24 V Output Maximum 1 To @24V (supervised output mode) Relay contacts 2 A @30 V DC (Relay output mode) Resistance EOL ent. 10 kΩ EOL resistance salt. 10 kΩ Temp. of work 0℃ ~ +40℃ Temp. storage -20℃ ~ +60℃ Environment ≤ 95% HR (40±2℃) (no condensation or icing) Address Routing tool JBE-AT1 Address range 1-200 Red LED indicators (Supervised departure) IP40 Sleep: "Input" and "Output" are blinking
Output Activation: "Output" fixed on
Confirmation: "Input" fixed on
Malfunction Input: "Input" off, "Output" off
blinks
Fault Output 24V: "Input" and "Output" offRed LED indicators (Dry relay output) Rest: "Input" blinking, "Output" off
Malfunction: "Input" and "Output" offDimensions 85×85x41 mm (length x width x height) Weight 0.1 kg (including base) IP Rating IP40 Certified EN 54-18:2005
EN 54-18:2005/AC:2007
