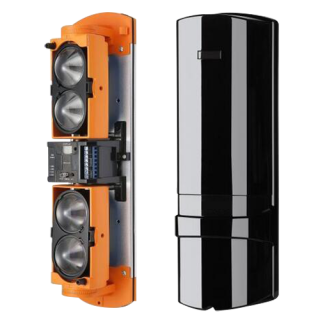

MARCA BLANCA ABH-150L

Infrared barrier detector - Wired | 4 beams | Function AND OR - Max distance. detection 150 / 450 m - High configuration capacity - Tamper | Relay Outputs | LED Display - Power supply 12~24VDC/VAC

Les merShow less

kr 1,881.75

Referanse:

ABH-150L

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

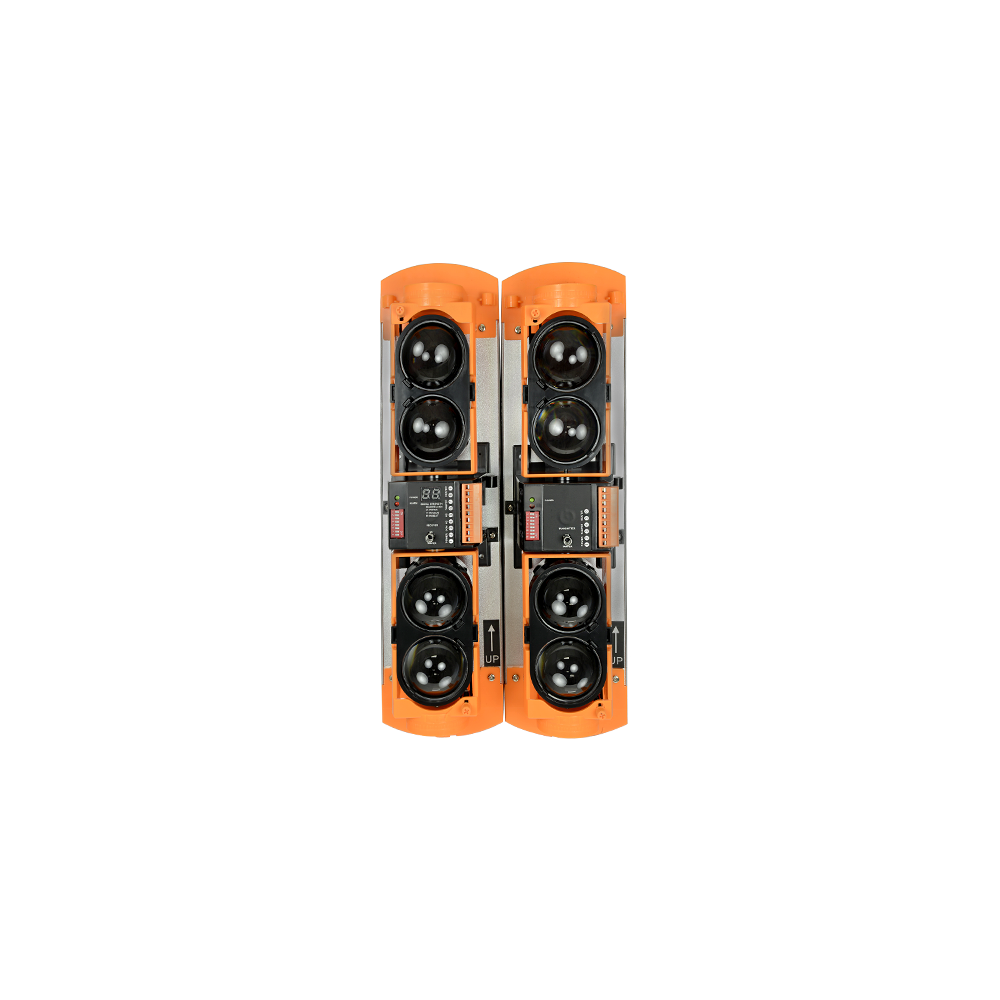

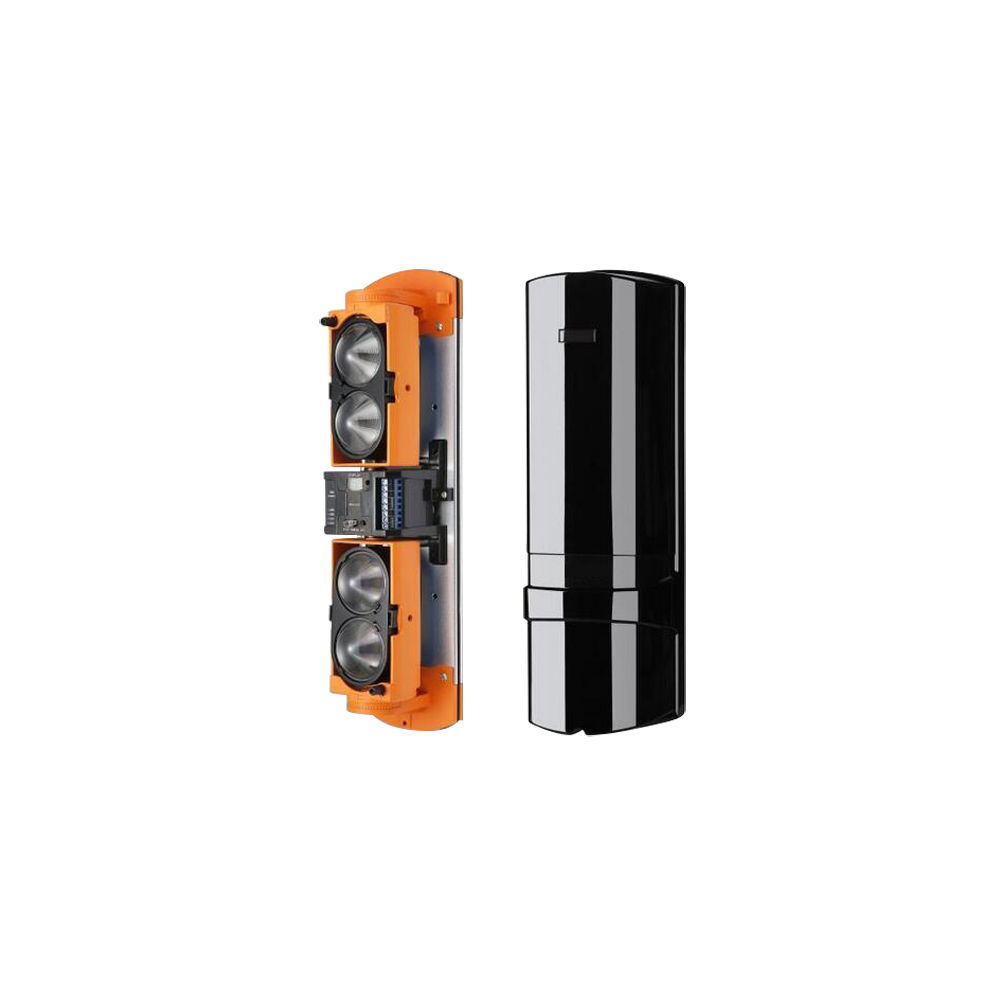

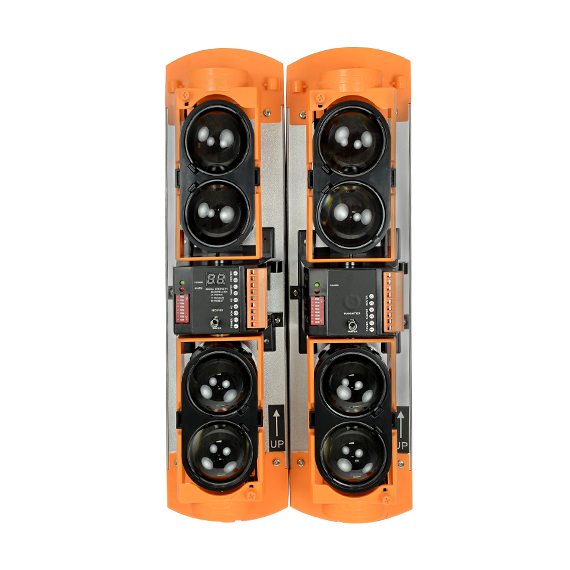

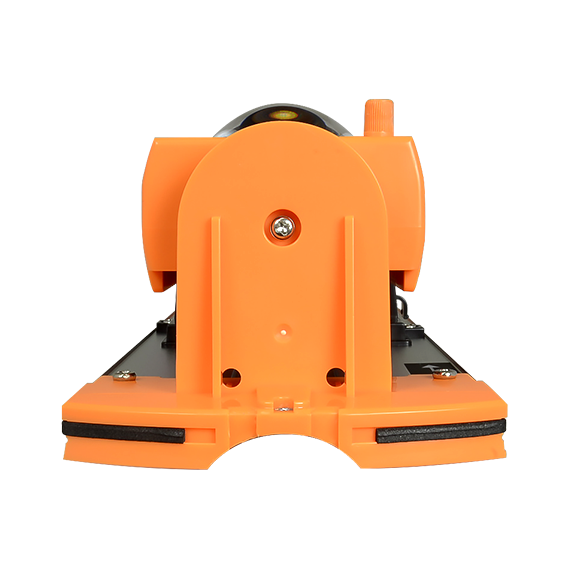

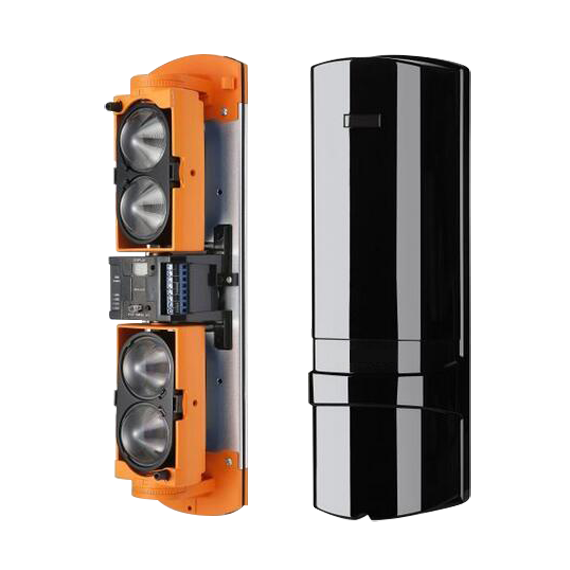

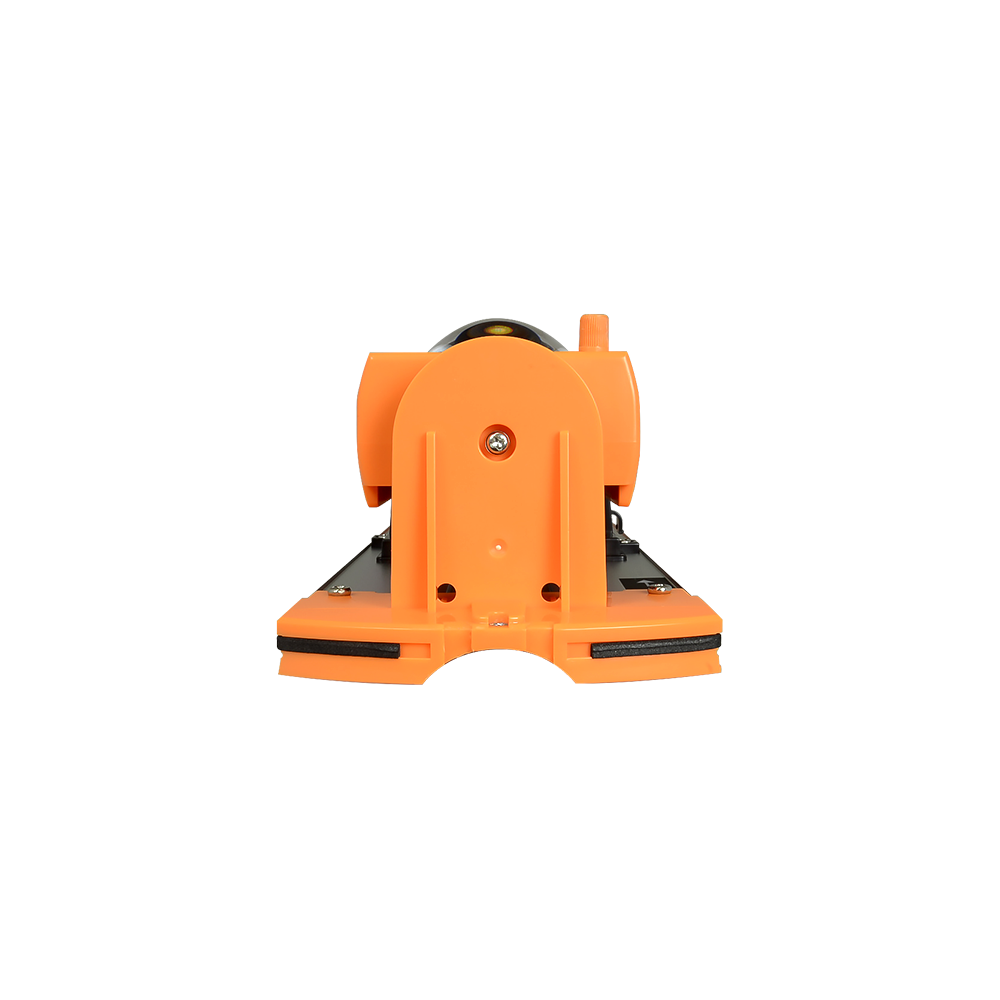

Quadruple infrared beam barrier for exterior
Wired
Maximum detection transmitter / receiver 450 m (interior) and 150 m (exterior)

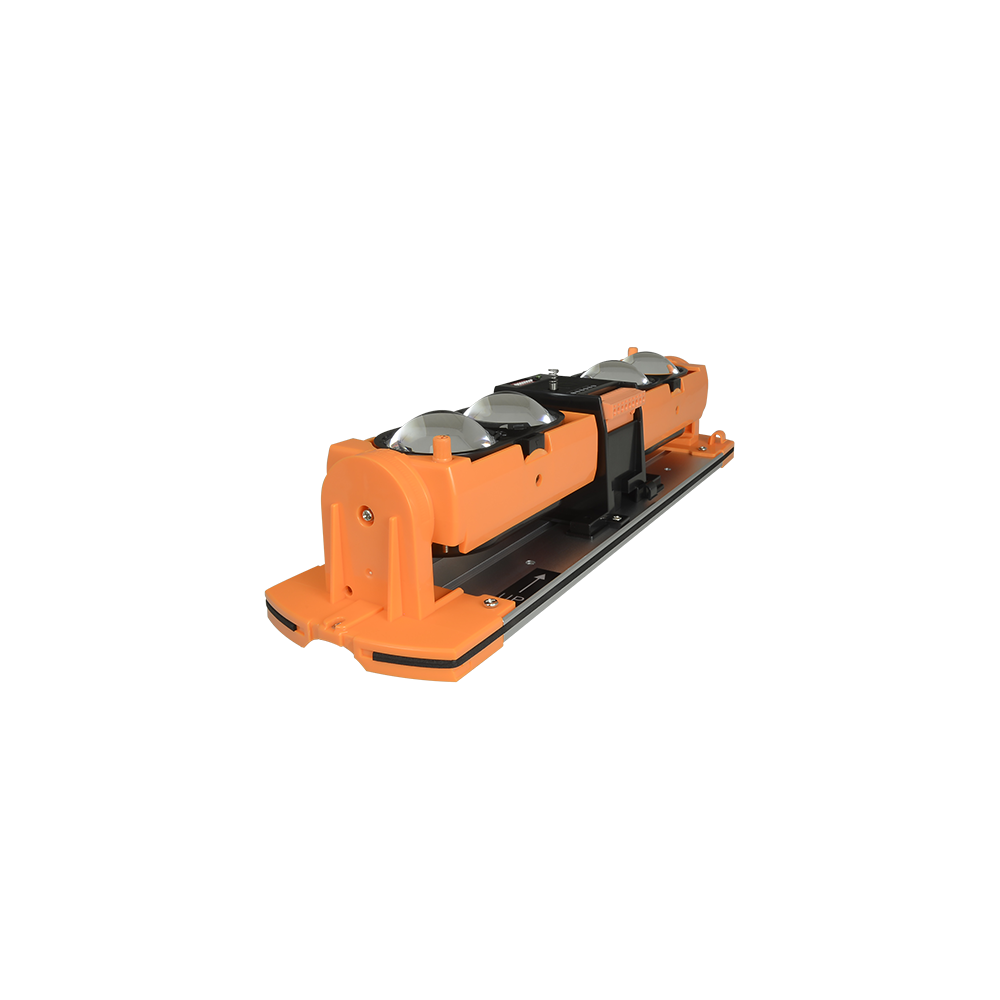

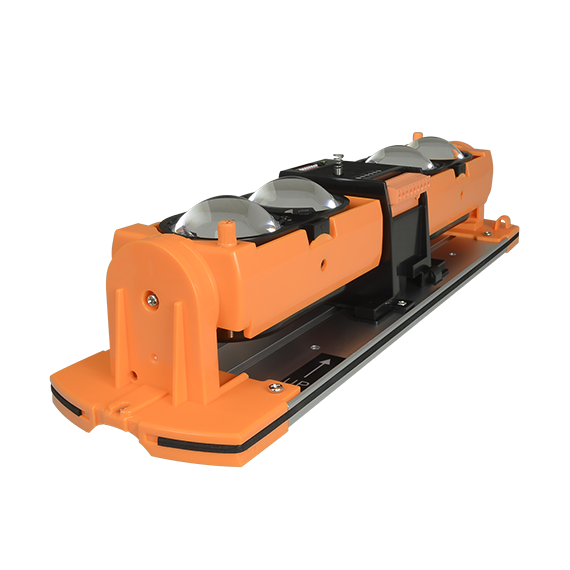

Quadruple adjustable lens
H: ±90º / V: ±10º
AND/OR function

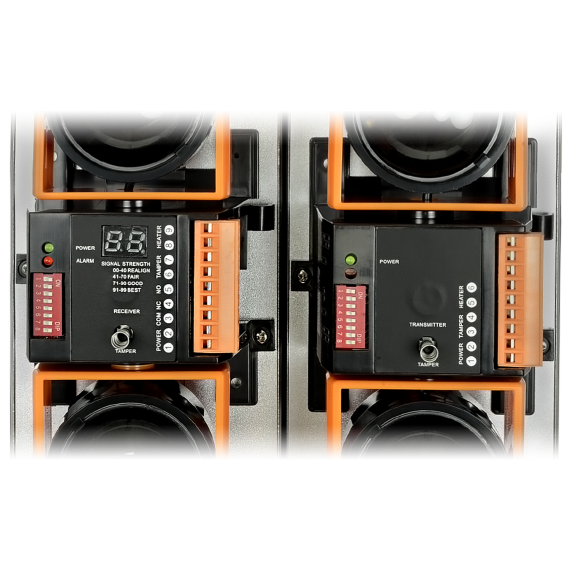

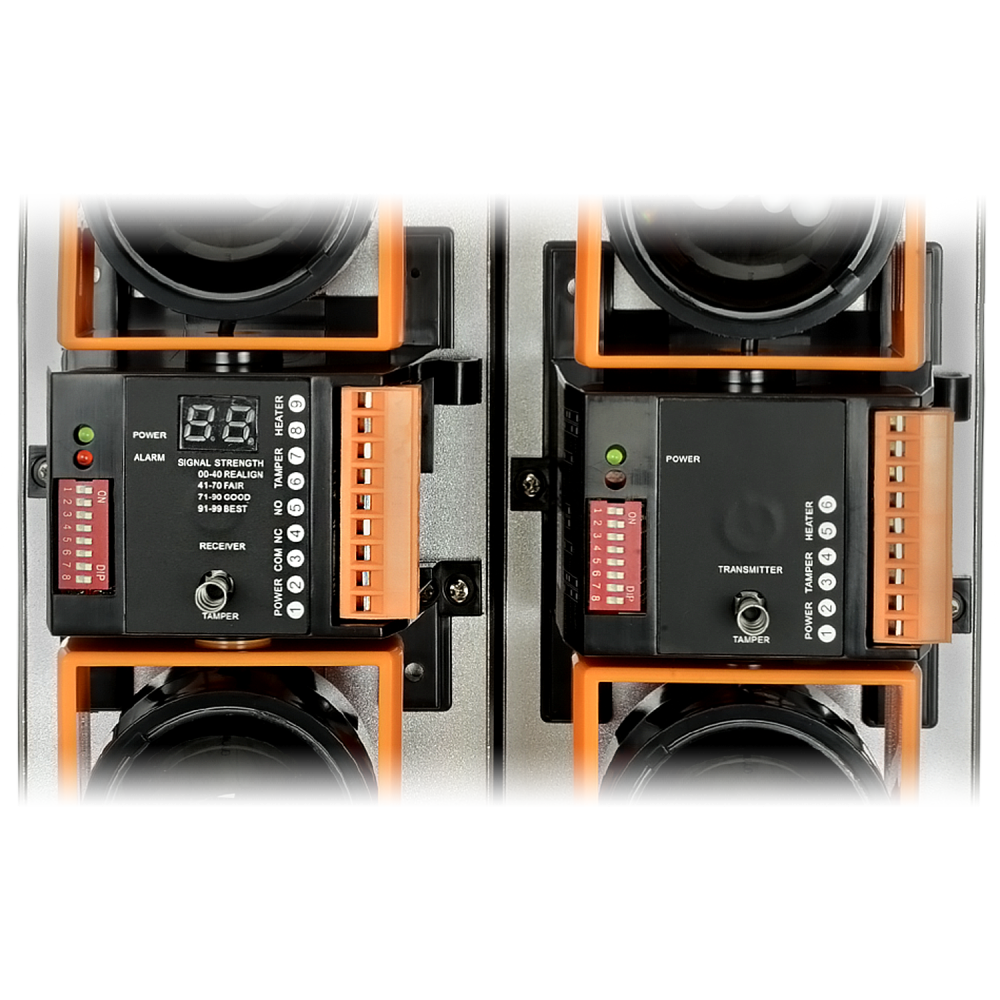

DIP Switch for programming
4 work frequencies
Easy programming over LED Display

Power 12~24 VDC/VAC

Detection range	450m indoor / 150m outdoor
Number of beams	4
Detection method	Interruption of the 4 beams at once or only 2 (up o down)
Interruption time	50ms, 100ms, 300ms, 700ms (available)
Frequency channels	4 different channels over DIP Switch
Alarm outputs	1 relay NO/NC (max. 30VDC/VAC, 0.5A), Tamper NC
Alignment angle	Horizontal 180°(±90°), Vertical 20°(±10°)
Adjustment method	Over LCD Display between 0-99
Operating temperature	-25ºC ~ +55ºC
Degree of protection	IP65
Power	12~24 VDC/VAC, 90 mA max.
Dimensions	291 (H) x 92 (W) x 90 (D) mm

Les merShow less

Produktdetaljer

Referanse ABH-150L
