DUEVI DV-BTLINK
kr 694.80
| Brand | Duevi |
| Model | Kapture F |
| Technology | Double technology: microwave (24 GHz) and curtain type PIR |

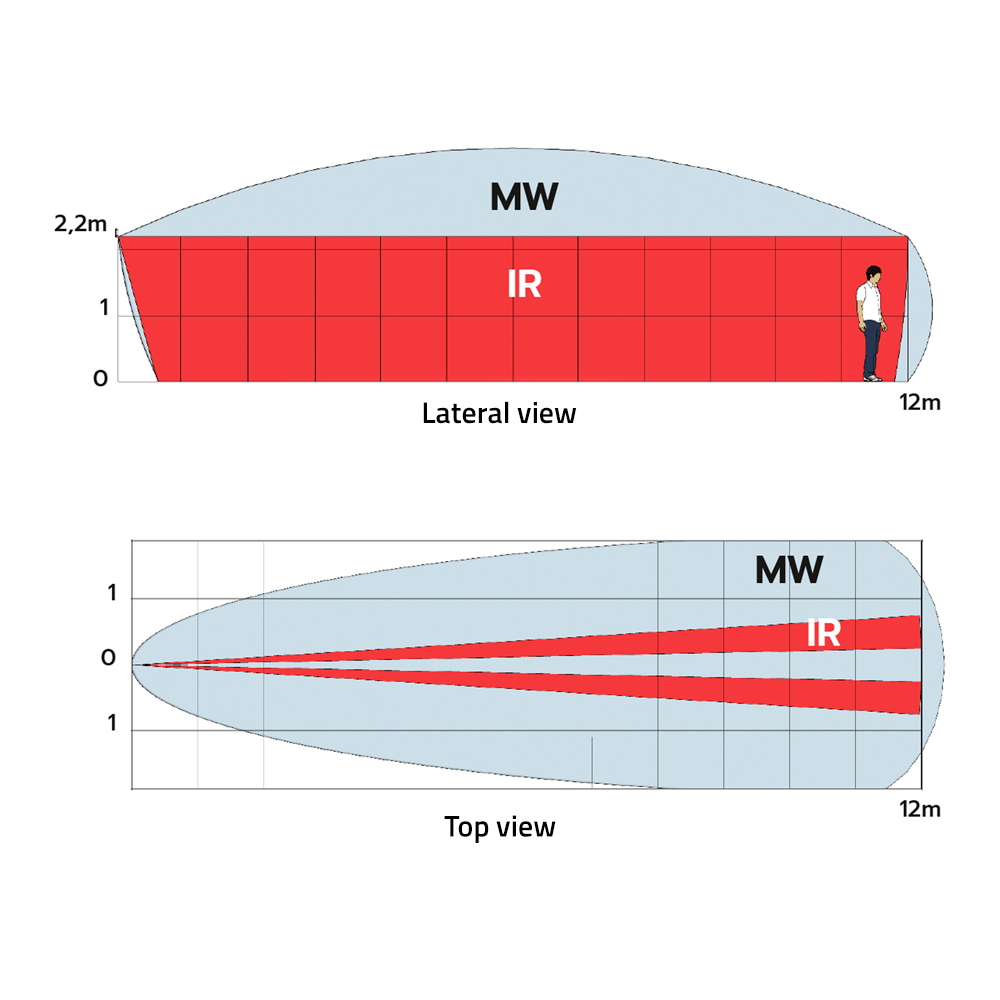

| Detection range | Configurable: 3 m to 12 m (depending on installation) / PIR 7.5º / Microwave 30º |
| Pet immunity | Not available |
| Installation height | Recommended 2.2 m (from 2 to 4 meters) |
| Masking | Available |
| Sensitivity | Adjustable (potentiometer from 30% to 100% or through App) |
| Tamper-resistant opening | Available |
| Anti-sabotage tamper | Available (motion accelerometer) |
| LEDs indication | Alarm (blue). IR detection (red) and Walk test (red): IR / blue: alarm confirmation) |
| DIP Switch configuration | Walk-test (On/Off), Anti-masking (On/Off), Programming by App (On/Off), Unification of alarms on one output (On/Off) |
| Additional configuration in App | Anti-shadow function to avoid false alarms (4 levels) / Independent adjustment of sensitivity in IR and microwaves |
| Configuration by App | DV-BTLINK module required and download View Sensor App (Android) |

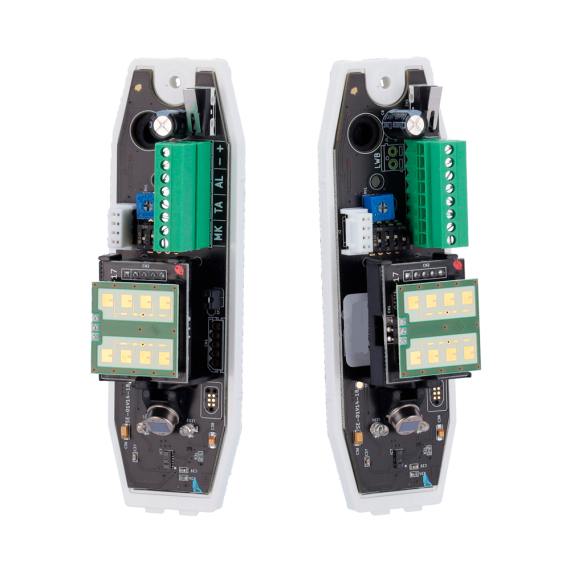

| Wired outputs | Alarm, tamper and anti-masking |
| Power | 9.6 at 14.5 VDC |
| Temp. operation | -40 ºC ~ +70 ºC |
| Degree of protection | IP54 |

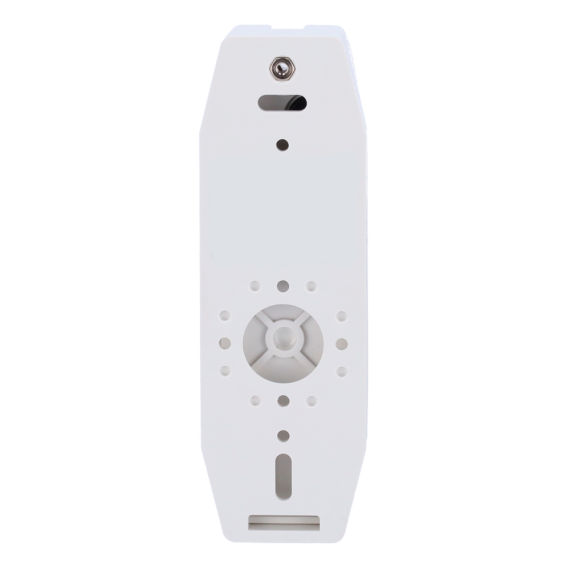

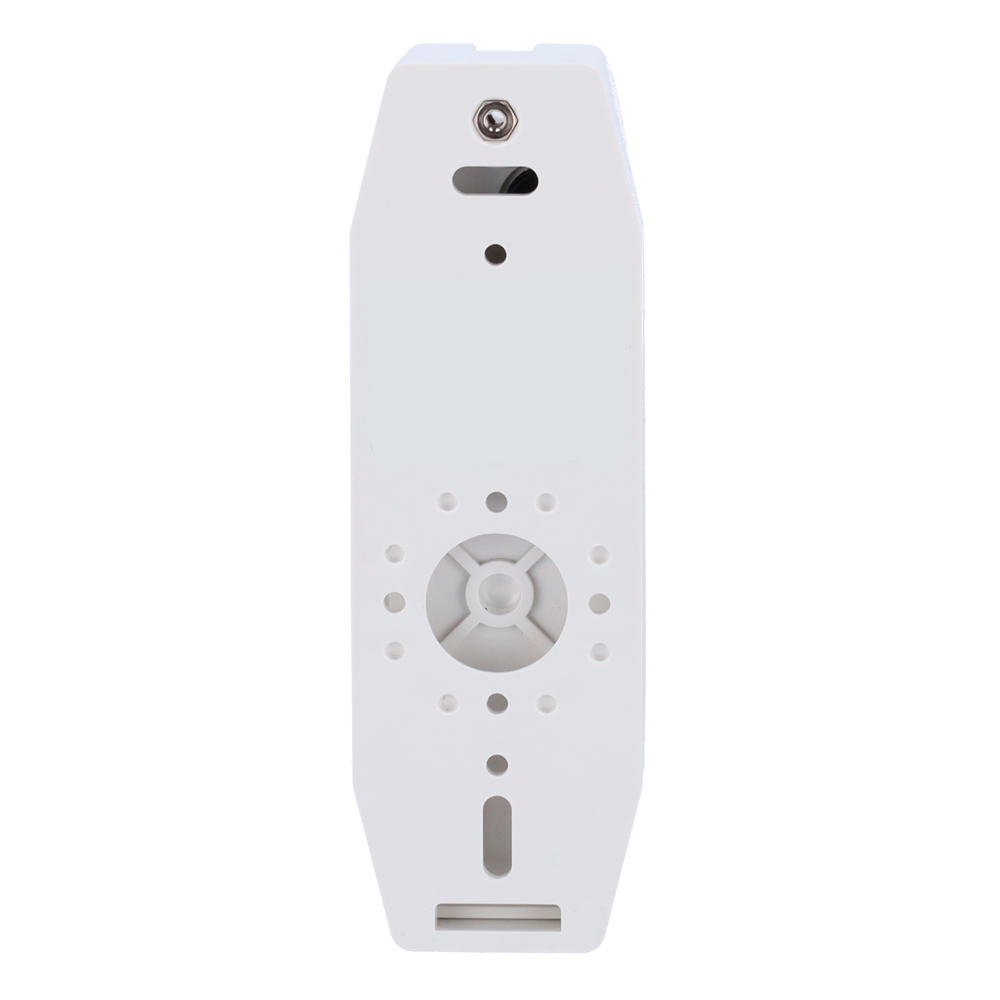

| Bracket | Includes wall bracket and L-bracket |
| Dimensions | 128 (H) x 41 (W) x 48 (D) mm |
