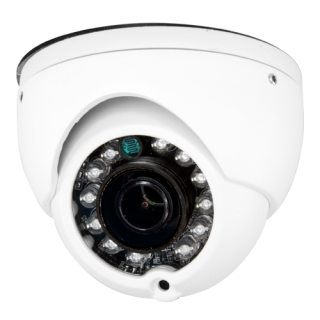

MARCA BLANCA DM939FIAB-F4N1

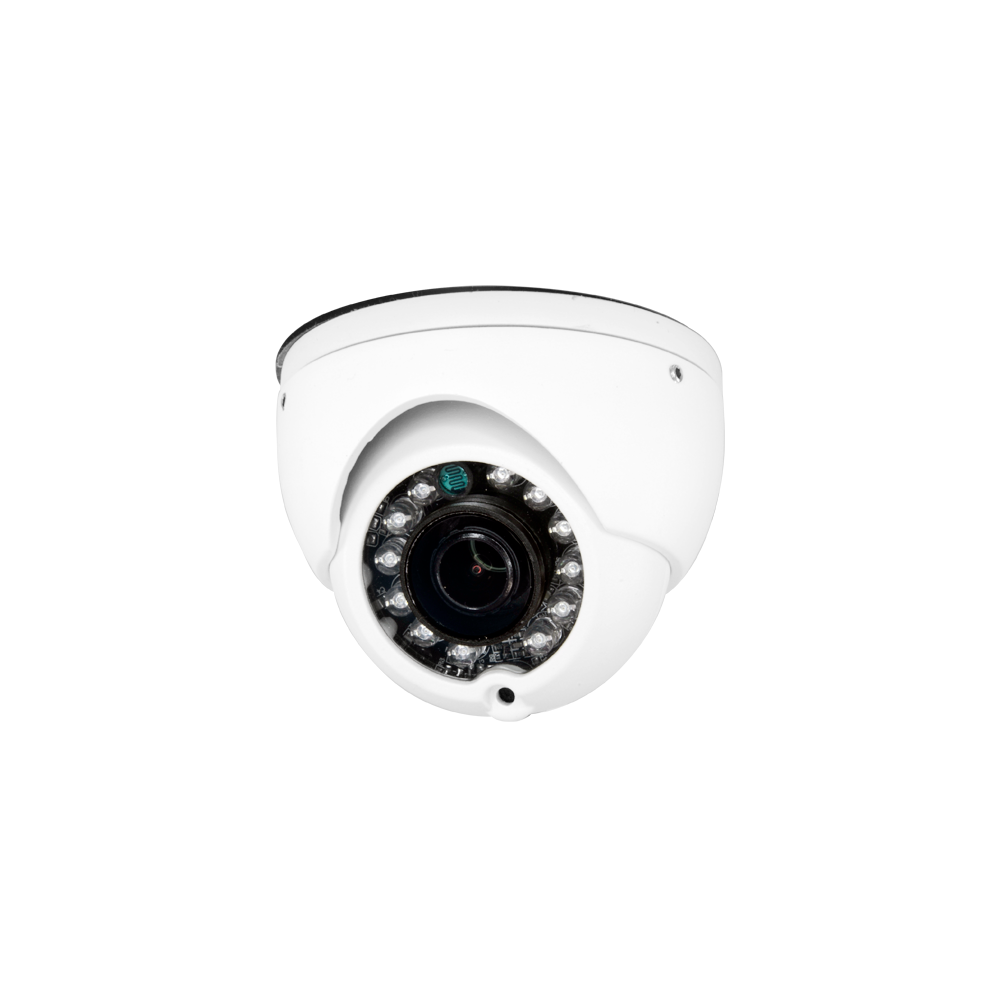

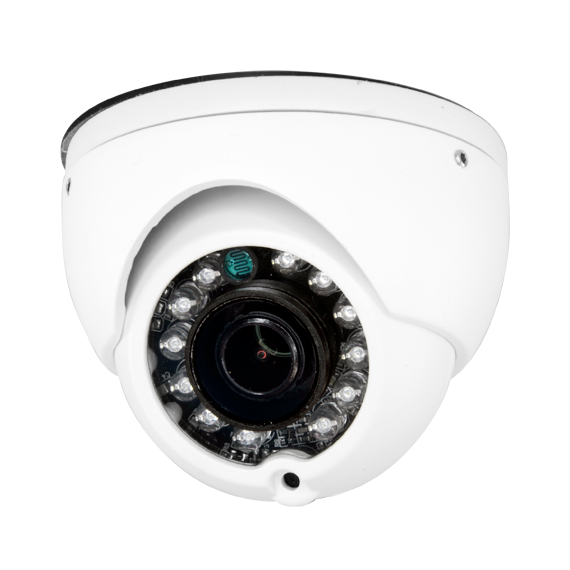

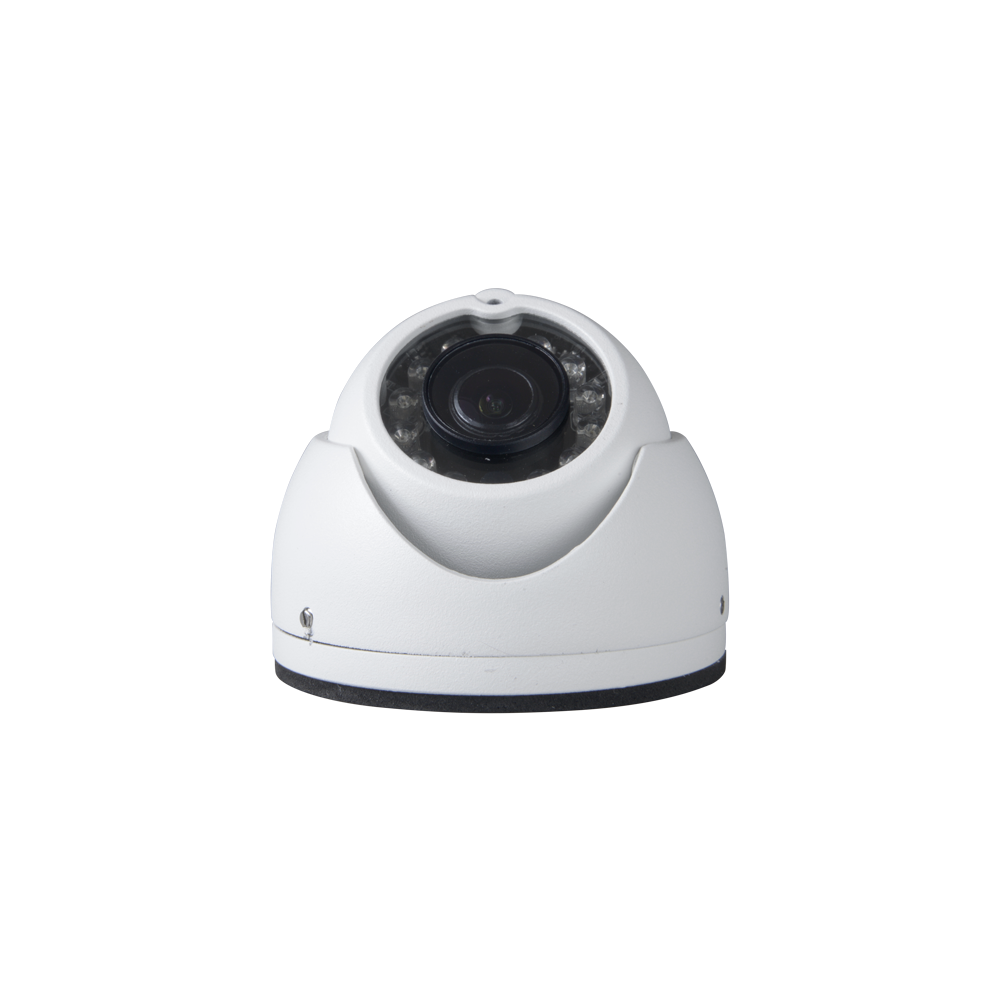

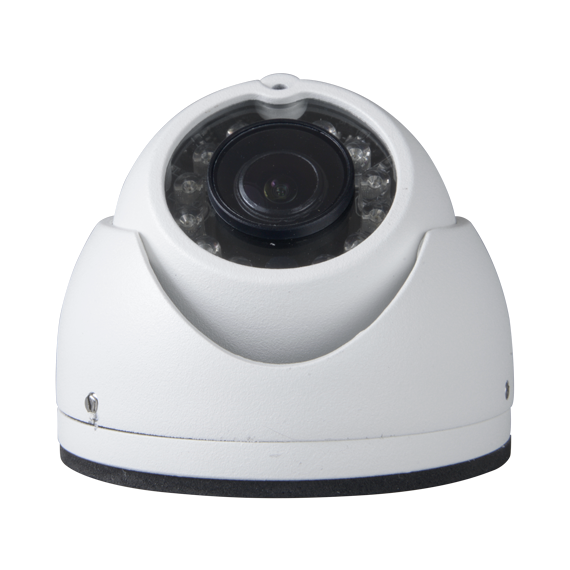

Dome camera with infrared, valid for exterior. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 1080p PRO.

Consisting of a 1/2.9" Sony© 2.19 Megapixel Exmor sensor (model IMX323) and DSP (model NVP2441H) which offers a resolution of 1080p at 25 FPS. Fixed lens of 2.8 mm with a diagonal vision field of 94º. It has infrared LEDs that are activated automatically, providing a clear image at 0 Lux (total darkness) at a maximum distance of 8 m. It has automatic IR Cut filter that permits clear, real colour, daytime images.

Due to the DSP it furthermore has an OSD menu in HD formats, which can be accessed remotely from the recorder via the coaxial cable, or in both formats from the connection cable button, which allows you to configure the camera and adjust its most important parameters:

• DWDR, to improve image quality under different lighting conditions
• Sense-Up, keeps the image clear and vivid at low lighting
• 3DNR, digital noise reduction system without loss of focus
• AWB & ATW, automatically adjusts white balance for improved colour tone
• BLC (Back Light Compensation) and HLC (High Light Compensation)
• Defog, reduces the effect of fog, compensating the total contrast
• Privacy masks with 4 zones
• Motion detection (Videosensor)

  BNC video connector for HD formtats HDTVI / HDCVI / AHD / CVBS, switchable via buttons, Audio via integrated microphone.

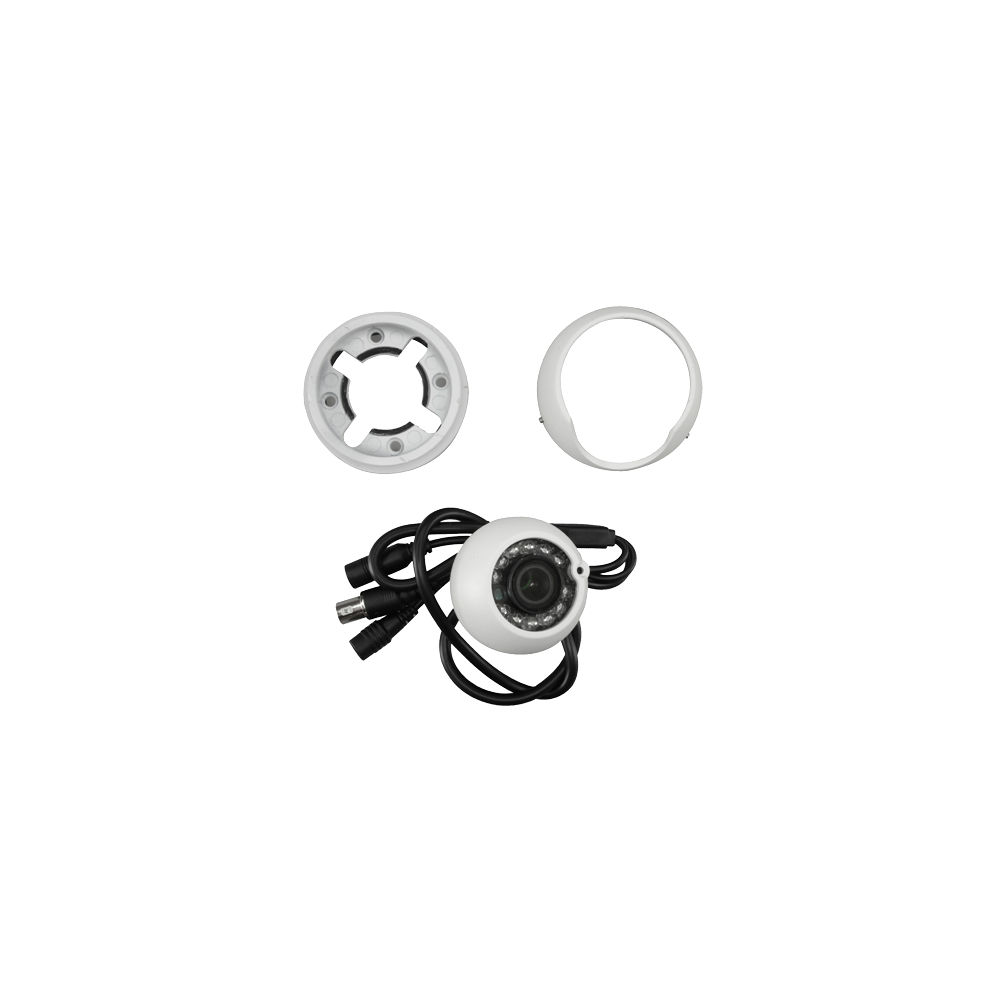

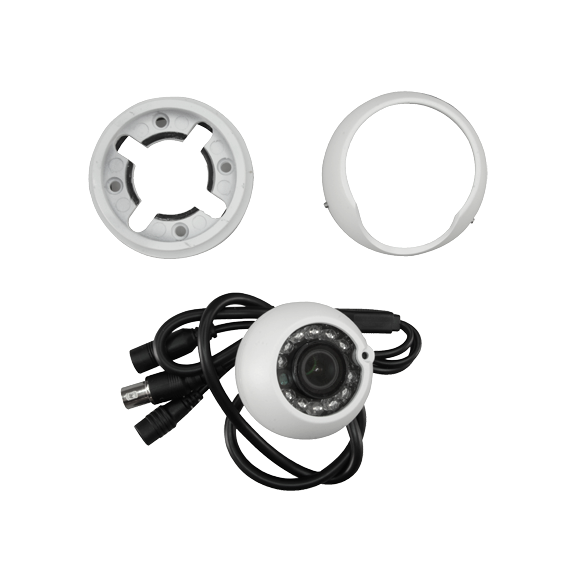

  The housing is made of aluminum and is weatherproof according to protocol IP66, which makes it suitable for both indoor and outdoor. Easy installation in wall or ceiling due to its 360º bracket.





  Range	1080p PRO
  Image sensor	1/2.9" Sony© 2.19 Megapixel Exmor (model IMX323)
  DSP	NVP2441H
  Resolution	HD 1080p (1920x1080) at 25 FPS
  Video output	1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
  Minimum illumination	0 Lux / 12 LEDs IR (8 m)
  Basic functions	OSD menu, Day/Night with IR-CUT (ICR)
  Configurable OSD functions	Sense-up, AE, SC, DWDR, AWB, ATW, BLC, HLC, AGC, Mask, MD
  Lens	2.8 mm (94º)
  Audio	Integrated microphone with RCA output
  Power	DC 12 V / 200 mA max.
  Degree of protection	Weatherproof IP66
  Temp. operation	-10º C ~ +45º C
  Dimensions	50 (D) x 68 (Ø) mm
  Weight	195 g
