| Brand | X-Security |

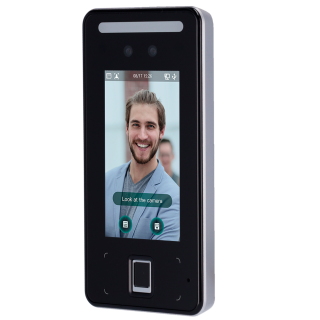

| Model | XS-AC6214-MFDR |
| Capacity | Up to 6.000 faces, 6.000 fingerprints and 6.000 cards/passwords |
| Records | 150.000 registers |
| Identification modes | Facial recognition, fingerprint, PIN, MF card and/or combinations |
| Proximity card | MF card (13.56 MHz) |
| Screen | 4.3" TFT color touch screen |
| Screen resolution | 480 x 272 |
| Camera | 2 Mpx with dual sensor for face recognition DWDR, auto white light and auto IR |
| Facial recognition verification time | < 0.3 sec |
| Facial recognition accuracy | > 99% |
| Facial recognition distance | 0.3 m to 1.5 m |
| Fingerprint sensor | Capacitive |
| Fingerprint verification time | < 1 sec |
| Card reading distance | 0-5 cm |
| Communication | TCP/IP, USB, RS485 and Wiegand |
| Inputs | Wiegand IN, door sensor, door opening button, alarm |
| Outputs | Wiegand OUT, relay, alarm, buzzer |
| Special functions | Anti-pass back, duress alarm, illegal card |
| Group capacity, schedules and vacation calendar | Up to 128 |
| Software | SmartPSS |
| Power | DC 12 V / 2 A max. |
| Degree of protection | IP65 |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 87.5 (W) x 174 (H) x 22.5 (D) mm |
| Weight | 780 g |
