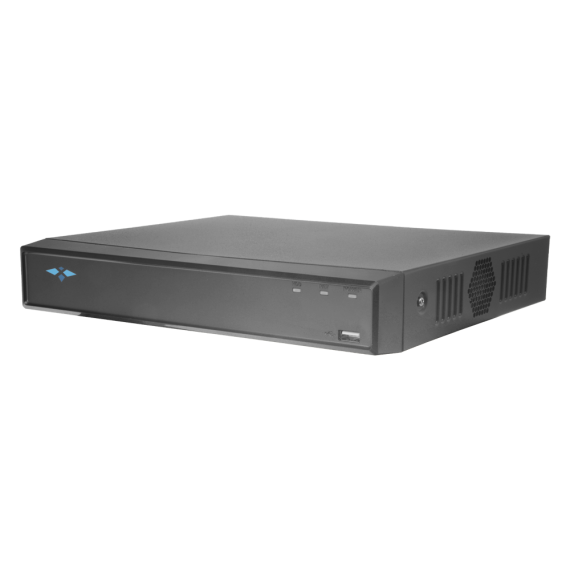

| Brand | X-Security |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Up to 24 IP Channels (6Mpx), replacing all the BNC channels |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Video / audio compression | H.265+/H.265/H.264+/H.264 |
| Display resolution | 1920x1080, 1280x1024, 1280x720 |
| Total bandwidth | 128 Mbps |
| Recording resolution | 5 M-N, 4 M-N,1080p, 1080N, 720p, 960H, D1, CIF |
| Coding | All channel: 5M-N(10 FPS); 4M-N/1080p(15 FPS); 1080N / 720p / 960H / D1 / CIF (25/30 FPS) |
| Dual-Stream encoding | D1 / CIF (1~15 FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Audio inputs | 8 BNC, 1 RCA Channel |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Alarms | No |
| Video analysis | IVS: Tripwire | Area intrusion | Abandoned object | Face detection IP Mode, Face Recognition and IVS cannot be enabled at the same time |
| Facial recognition | Up to 2 analog channels for live face comparison |
| Intelligent motion detection | Up to 16 channels capable of classifying targets amongst humans and vehicles |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB / Network |
| Internal memory | 1 SATA HDD 3.5" of up to 10 TB (not included) |

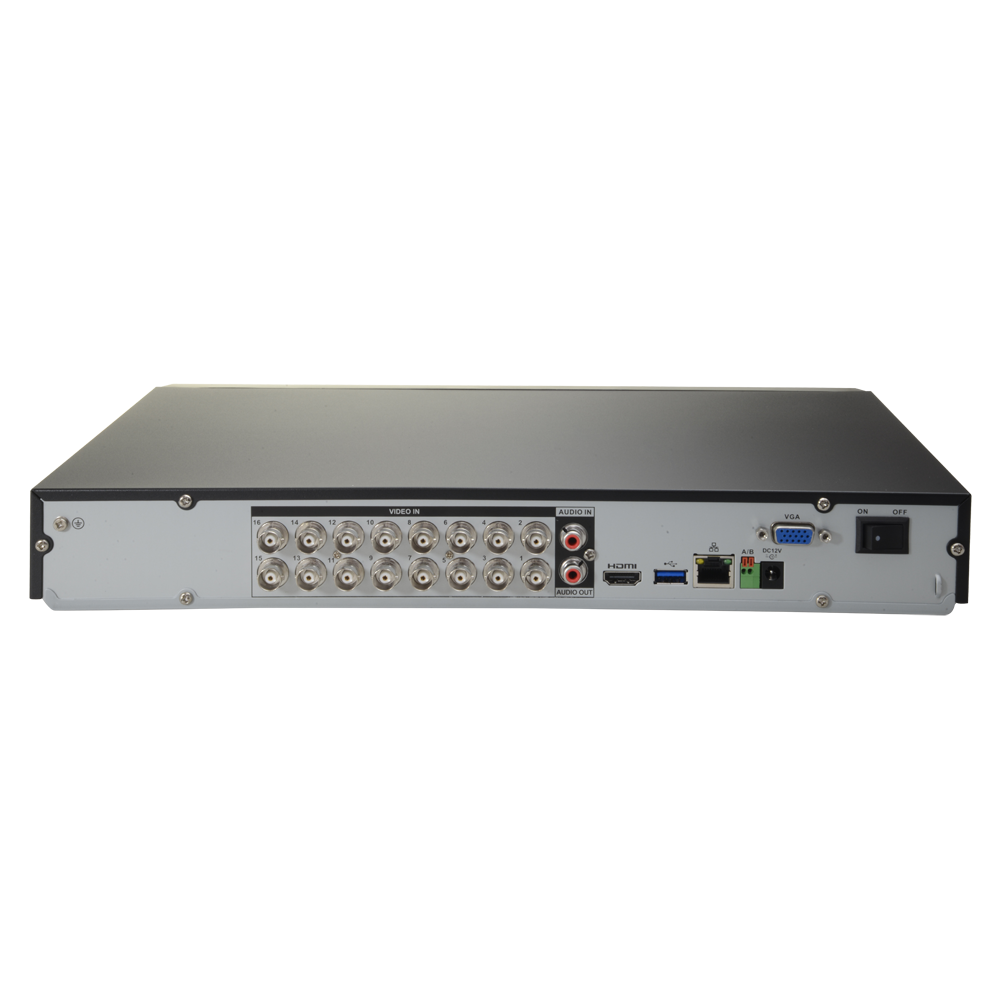

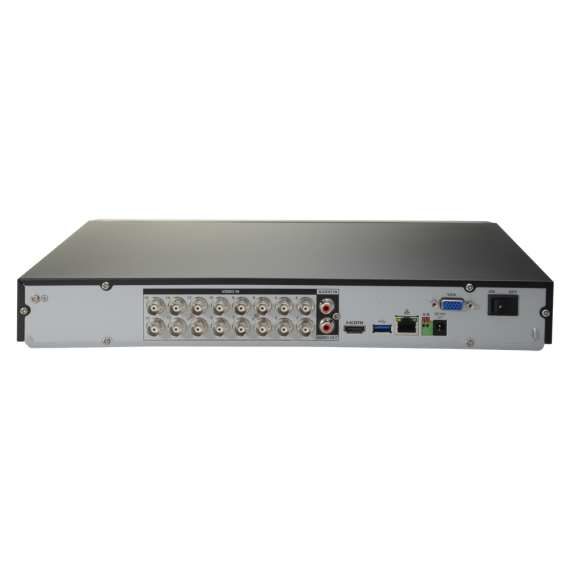

| Communication | RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote access | Web browser (ActiveX), mobile phone application or PSS software |
| Power | DC 12V / 2A |
| Dimensions / Weight | 47.6 (H) x 260 (W) x 237.4 (D) mm / 1.17 Kg |
