| Brand | X-Security |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |

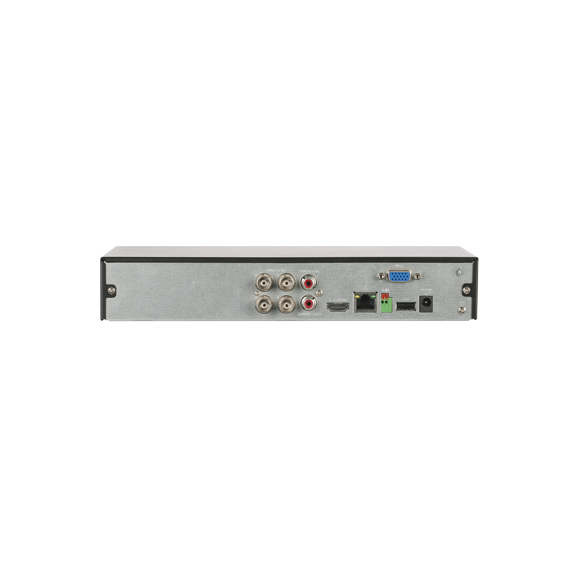

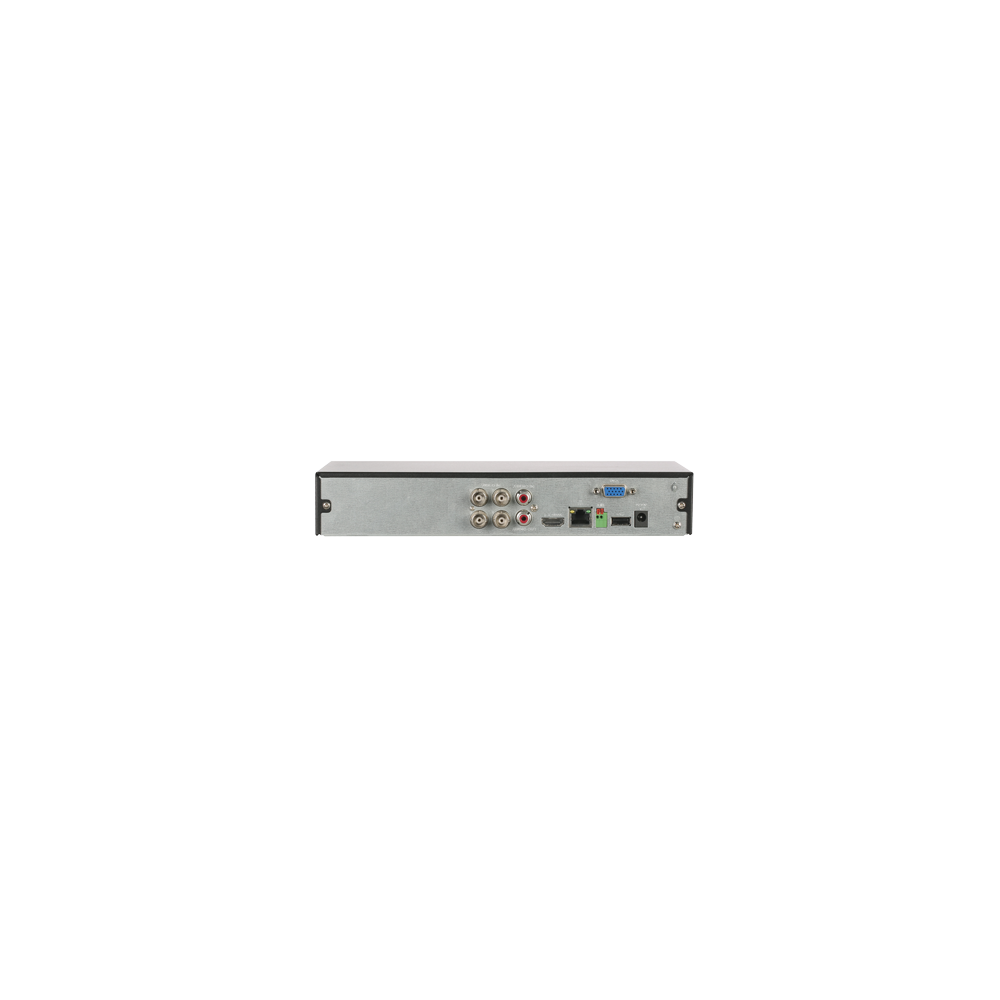

| Video inputs | 4 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Up to 5 IP Channels (6Mpx), replacing all the BNC channels |
| Video outputs | 1 HDMI full HD and 1 VGA |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Video / audio compression | H.265+/H.265/H.264+/H.264 |
| Display resolution | 1920x1080, 1280x1024, 1280x720 |
| SMD PLUS | Filtering of false alarms of people and vehicles in movement detection |
| Recording resolution | 1080N; 720p; 960H; D1; HD1; [%VAR%] BCIF; CIF |
| Main Stream coding | First channel: 1080N, 720p (1~25/30FPS), Rest of channels: 1080N, 720p (1~15FPS) / 960H, D1,CIF (1~25/30 FPS) |
| Extra Stream coding | CIF (1~7 FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Intelligent functions | POS Function | Bidirectional Audio by RCA |
| Alarms | No |
| Recording method | Manual, programmed, motion detection (up to 396 zones) |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |

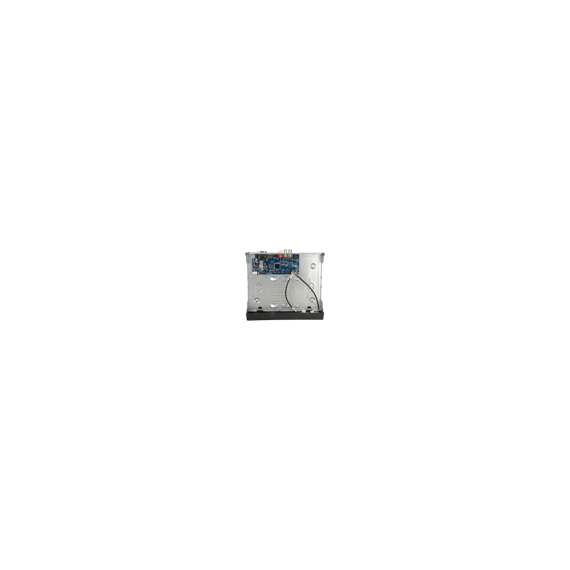

| Internal memory | 1 HDD SATA 3.5" of up to 6TB (not included) |
| Communication | 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote access | Web browser (ActiveX), mobile phone application or PSS software |
| Power | DC 12 V / 1.5 A |
| Dimensions / Weight | 260.0 (An) × 237.9 (Fo) × 47.6 (An) mm |
