| Brand |
X-Security |
| Video format |
HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs |
4 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration |
Up to 5 IP Channels (2Mpx), replacing all the BNC channels |
| Video outputs |
1 HDMI Full HD, 1 VGA |
| Audio inputs |
1 Channel RCA |
| Audio outputs |
1 Channel RCA |
| Bidirectional audio |
Reusing the audio input/output |
| Video / audio compression |
H.265+/H.265/H.264+/H.264 / G.711A |
| Display resolution |
1920x1080, 1280x1024, 1280x720, 1024x768 |
| Recording resolution |
1080N / 720p / 960H / D1 / CIF |
| Main Stream coding |
1080N / 720p / 960H / D1 / CIF (1~25 FPS) |
| Extra Stream coding |
CIF (1~15 FPS) |
| Bandwidth |
100 Mbps |
| Simultaneous multifunction |
Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Intelligent functions |
Alarm / audio / update by Coaxial (All-over-Coax) |
| Alarms |
No |
| Recording method |
Manual, programmed, motion detection |
| Backup |
USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal memory |
1 HDD SATA 3.5" of up to 10TB (not included) |

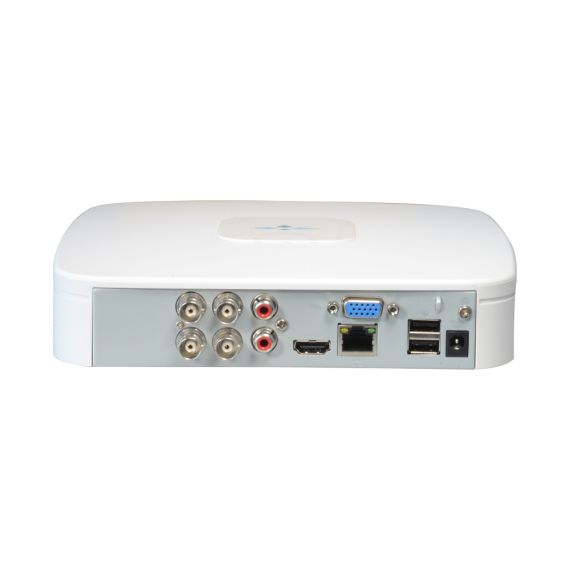

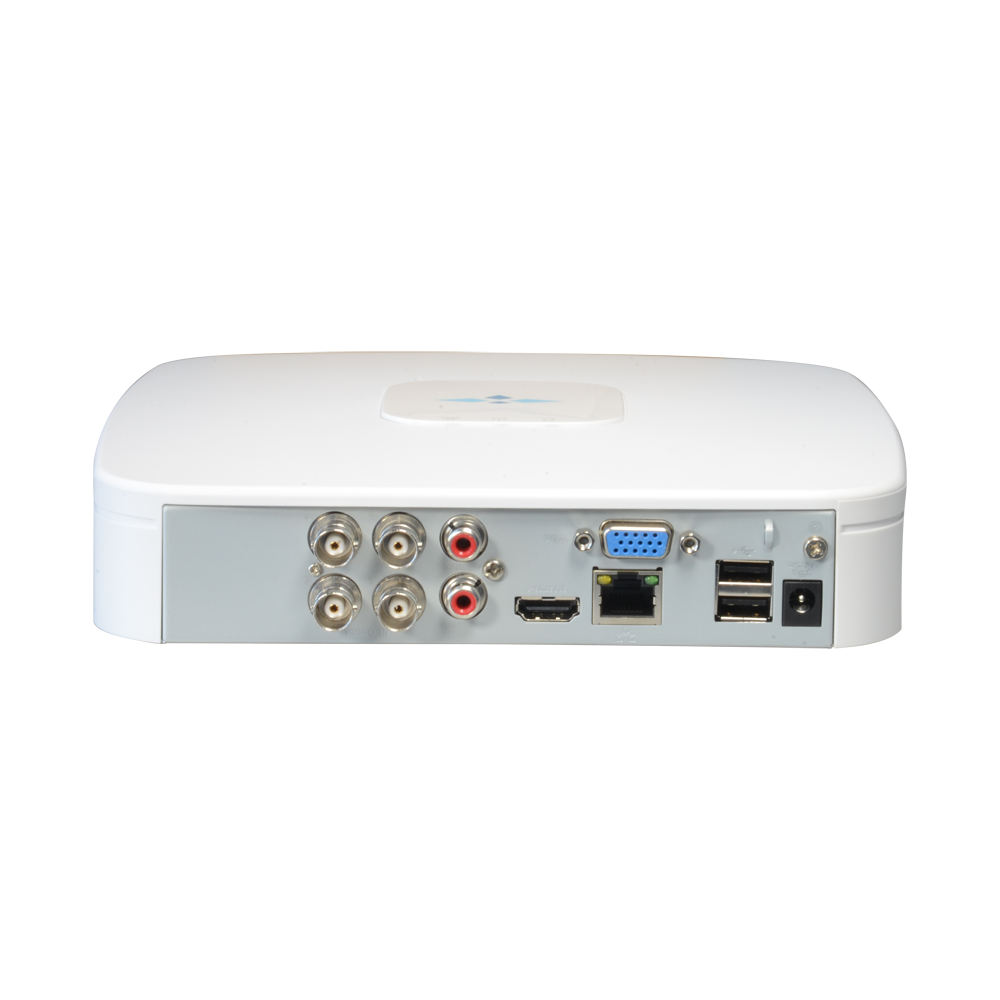

| Communication |
2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote access |
Web browser (ActiveX), mobile phone application or PSS software |
| Power |
DC 12 V / 2 A |
| Dimensions / Weight |
45 (H) x 211 (W) x 205 (D) mm / 1.1 Kg |
| Advanced features |
WizSense: false alarm filter for intelligent motion detection and intelligent coding |
