| Brand | X-Security | | Video format | HDTVI / HDCVI / AHD / CVBS / IP |

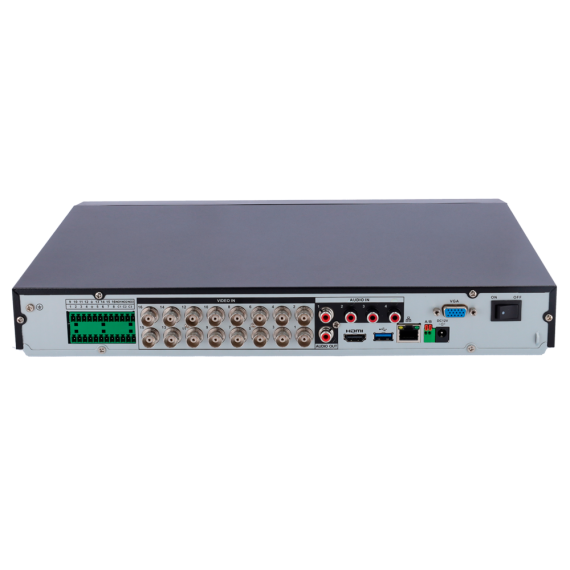

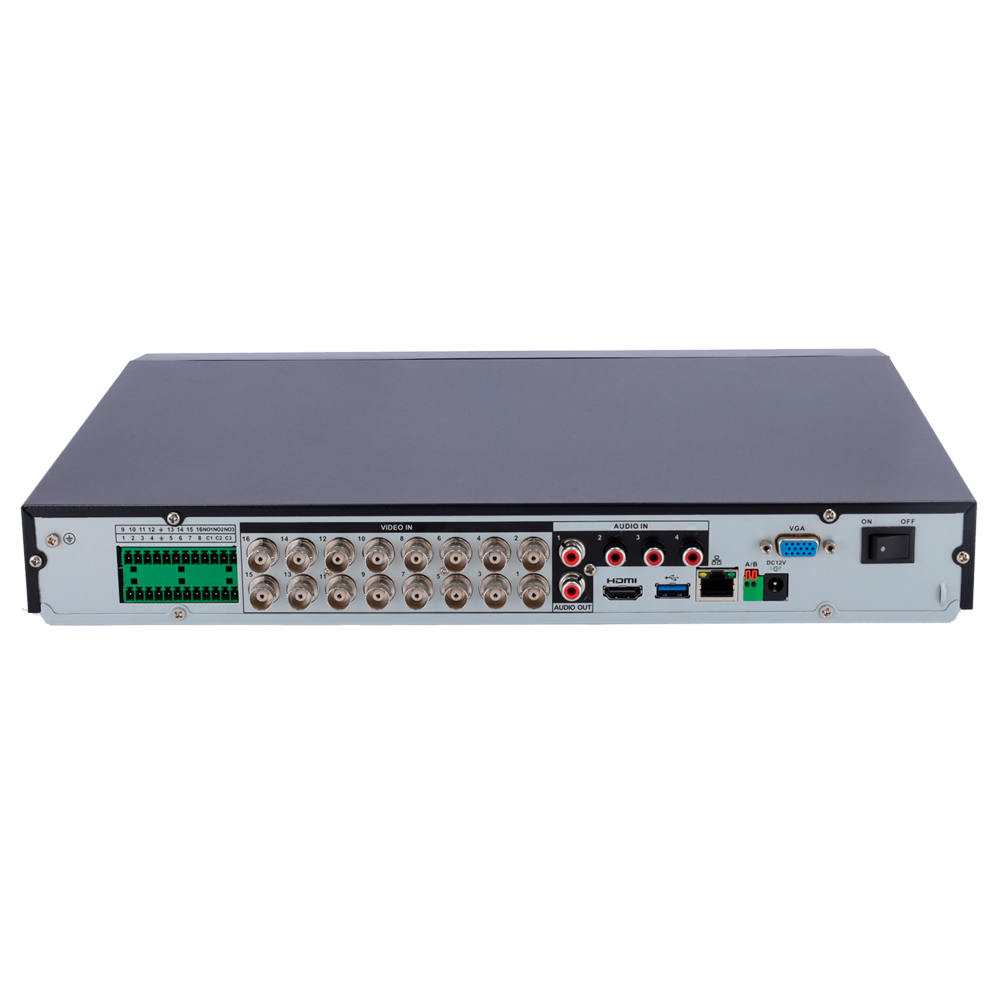

| Video inputs | 16 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Up to 24 IP Channels (5M-N), replacing all the BNC channels |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Video / audio compression | H.265+/H.265/H.264+/H.264 / G.711u |
| Display resolution | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Total bandwidth | 128 Mbps |
| Recording resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, [%VAR%] CIF |
| Main Stream coding | 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30fps) |
| Extra Stream coding | D1/CIF (1fps–15fps) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | 16 input / 3 relay |
| Audio | 4 in / 1 out RCA |
| Bidirectional audio | Reusing the audio input/output |
| Video analysis | IVS: Tripwire | Area intrusion | Abandoned object | Face detection
IP Mode, Face Recognition and IVS cannot be enabled at the same time |
| Intelligent functions | Function P2P | POS function | Alarm / audio / update by Coaxial (All-over-Coax) |
| SMD + | Intelligent motion detection, up to 16 channels capable of classifying targets between humans and vehicles |
| Recording method | Manual, programmed, motion detection, alarm, stop |
| Backup | USB / Network |
| Internal memory | 2 SATA HDD up to 10TB (not included) |
| Communication | RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100/1000 (Ethernet) |
| Remote access | Web browser, mobile phone application or PSS software |
| Power | DC 12V / 4A |

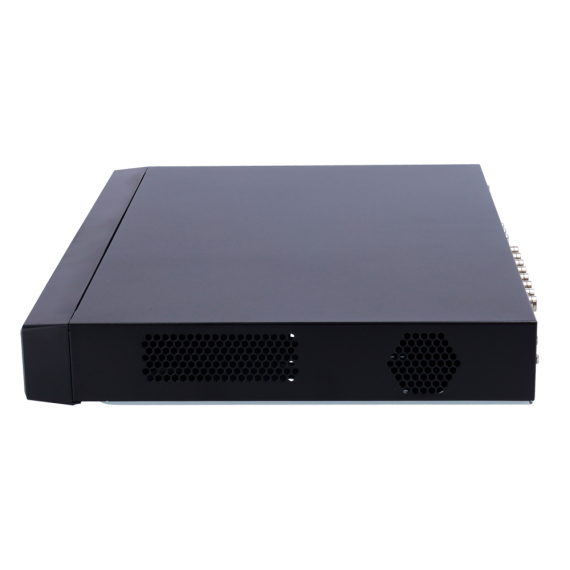

| Dimensions / Weight | 288 (H) x 375 (W) x 53 (D) mm / 1.8 Kg |
